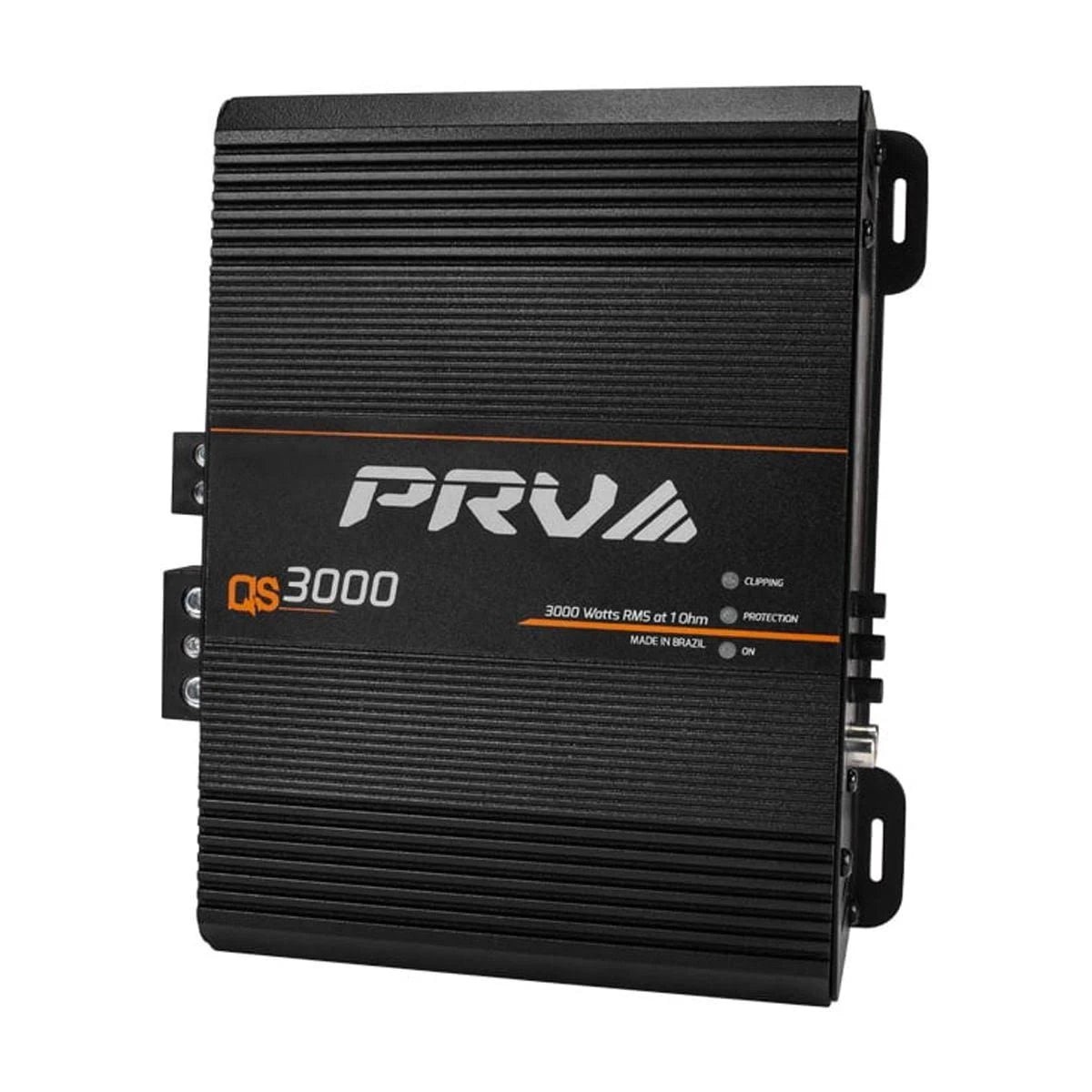

QS Series amplifiers are all about efficient design capable of full-range frequency response at a great price!
The QS3000 features a regulated power supply that is able to constantly deliver power and provides an unsurpassed efficiency rate of 8090% in a small aluminum heatsink.
- 3000 watts TRUE RMS certified at full range output Digital Class D Brazilian Technology
- 1 Channel car audio amplifier stable at 1 Ohm gives you the benefit of wiring multiple speakers and dividing the power.
- Engineered to be the most efficient full range amplifier so that you can get the most out of your vehicles electrical system!
- A small footprint and compact chassis make this amplifier easy to install anywhere in the vehicle:7.30 Wide x 8.66 Length x 3.00 Height
- 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel.
| Channels |
1 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm |
3000 Watts |
| Rated RMS Power at 14.0 V at 2 Ohm |
2100 Watts |
GENERAL SPECIFICATIONS
| Impedance |
1 Ohm |
| Channels |
1 Channel |
| Rated RMS Power at 14.0 V at 1 Ohm |
3000 Watts |
| Rated RMS Power at 14.0 V at 2 Ohms |
2100 Watts |
| Average Efficiency |
76% |
| Operating Voltage |
9 to 16 Volts |
| Musical Current Draw |
155 A |
| Minimum Power Wire Input |
(OFC) 4 Gauge |
| Protection Fuse or Circuit Breaker |
150 Amps |
| Minimum Speaker Wire Output |
14 Gauge |
| Frequency Response(-3dB) |
20 20,000 Hz |
| Min. Input Sensitivity for Max. Output |
200 mV |
| Signal Input |
1 Pair RCA |
| Signal to Noise |
>90 dB |
| Protection System |
Low & High Supply Voltage / Shortage on Output / Low Impedance on Output |
| Heat Sink Type |
Heavy Duty Cast Aluminum |
| Dimensions ( W x D x H ) |
7.30 x 8.66 x 3.00 |
| Weight |
5.10 Lbs |
