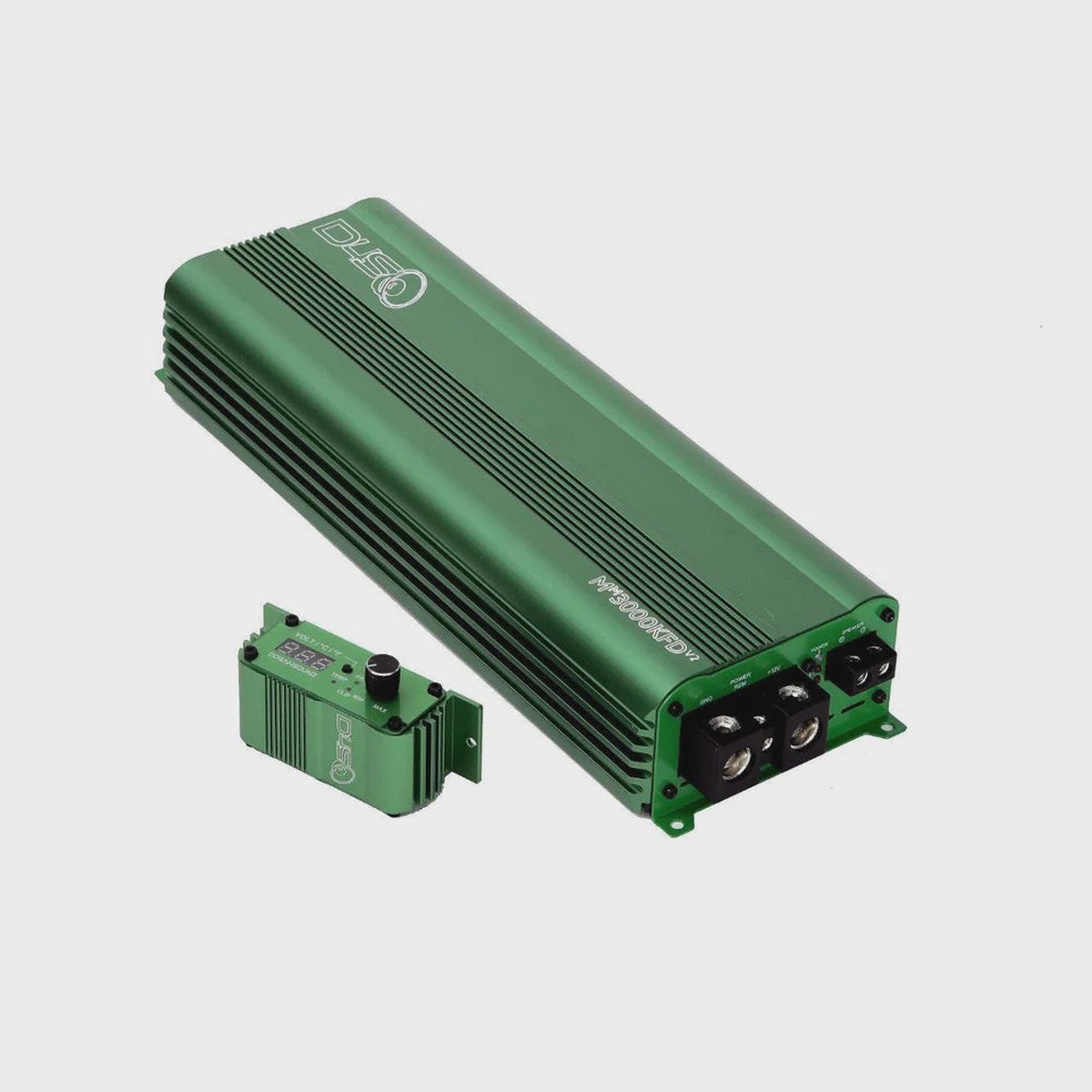

DOWN4SOUND MM3000KFD V2 Mini Maxx Monoblock Amplifier 3000W RMS Full-Range Full Bridge Class D
TheDOWN4SOUND MM3000KFD V2 Mini Maxxis a compact high-output full-range monoblock amplifier built for serious car audio systems that need big power without taking up big space. This full-bridge Class D amplifier delivers up to3000W RMS at 1 ohm, making it a strong choice for subwoofers, midbass drivers, pro audio speakers, and custom high-output audio systems.
Designed with a small footprint, wide tuning control, and strong output capability, the MM3000KFD V2 gives builders the flexibility to power bass systems, loud front stages, midbass setups, and full-range applications where clean output and efficient power delivery matter.
TheMM3000KFDadds a clean, high-shine finish that gives the amplifier a stealthy, professional look while matching a wide range of custom car audio installs.
Black Gloss Finish
- Deep gloss-black housing for a clean, premium appearance
- Stealth-style finish that blends into custom installs
- Show-ready look for daily drivers, demo vehicles, and full audio builds
The Black Gloss finish gives the MM3000KFD V2 a clean, professional appearance without taking attention away from the rest of your system.
Power Output
- 1 x 3000W RMS @ 1 Ohm
- 1 x 2300W RMS @ 2 Ohms
- 1 x 1400W RMS @ 4 Ohms
Power ratings are tested at14.4V, 1% THD, and 1kHz. The full-range Class D circuit design helps deliver strong output with efficient power delivery in a compact chassis.
- Full-range designfor flexible car audio system applications
- Band-pass capablefor advanced system tuning
- 500 damping factorfor tight and controlled output
- Compact full-bridge design for high-output car audio systems
Precision Crossovers
- Adjustable HPF:20Hz800Hz
- HPF multiply:x1 / x10for extended range adjustment
- Adjustable LPF:50Hz800Hz
- LPF multiply:x1 / x10for extended range adjustment
- 41-click potentiometersfor precise HPF and LPF tuning
- Band-pass capable using onboard crossover controls
The onboard crossover section gives installers more control when dialing in subwoofers, midbass drivers, pro audio speakers, or custom full-range system layouts that need more precise filtering.
Compact High-Output Design
- 12.99″ x 4.88″ x 2.25″
- 330 x 124 x 57.3 mm
- Small footprint for tight installs and custom layouts
- High-output design for serious car audio performance
The Mini Maxx platform is built for systems where space is limited but output still matters.
Remote Control & Monitoring
- Includes remote control with real-timevoltagedisplay
- Remote control also displays amplifiertemperature
- Onboardclipping indicator
- Thermal and clipping status monitoring for safer system tuning
Technical Specifications
- Power Class:3000W RMS
- Channels:1 Channel Monoblock
- Amplifier Design:Full-Range Full Bridge Class D
- Frequency Response:10Hz20.2kHz
- Signal-to-Noise Ratio:91dB
- Damping Factor:500
- Input Sensitivity:6V0.2V
- High Pass Filter:20Hz800Hz, x1 / x10
- Low Pass Filter:50Hz800Hz, x1 / x10
- Working Voltage:9V15.5V
- Maximum Output Reference:Up to 4700W @ 1 Ohm at 16V
- Dimensions:330 x 124 x 57.3 mm/12.99″ x 4.88″ x 2.25″
Important Compatibility Note
The MM3000KFD V2 is not strap-compatible.Do not strap this amplifier with another MM3000KFD V2, a V1 model, or any other amplifier.
Add the DOWN4SOUND MM3000KFD V2 Mini Maxx to your system when you need compact size, serious output, and full-range amplifier flexibility in one powerful package.
