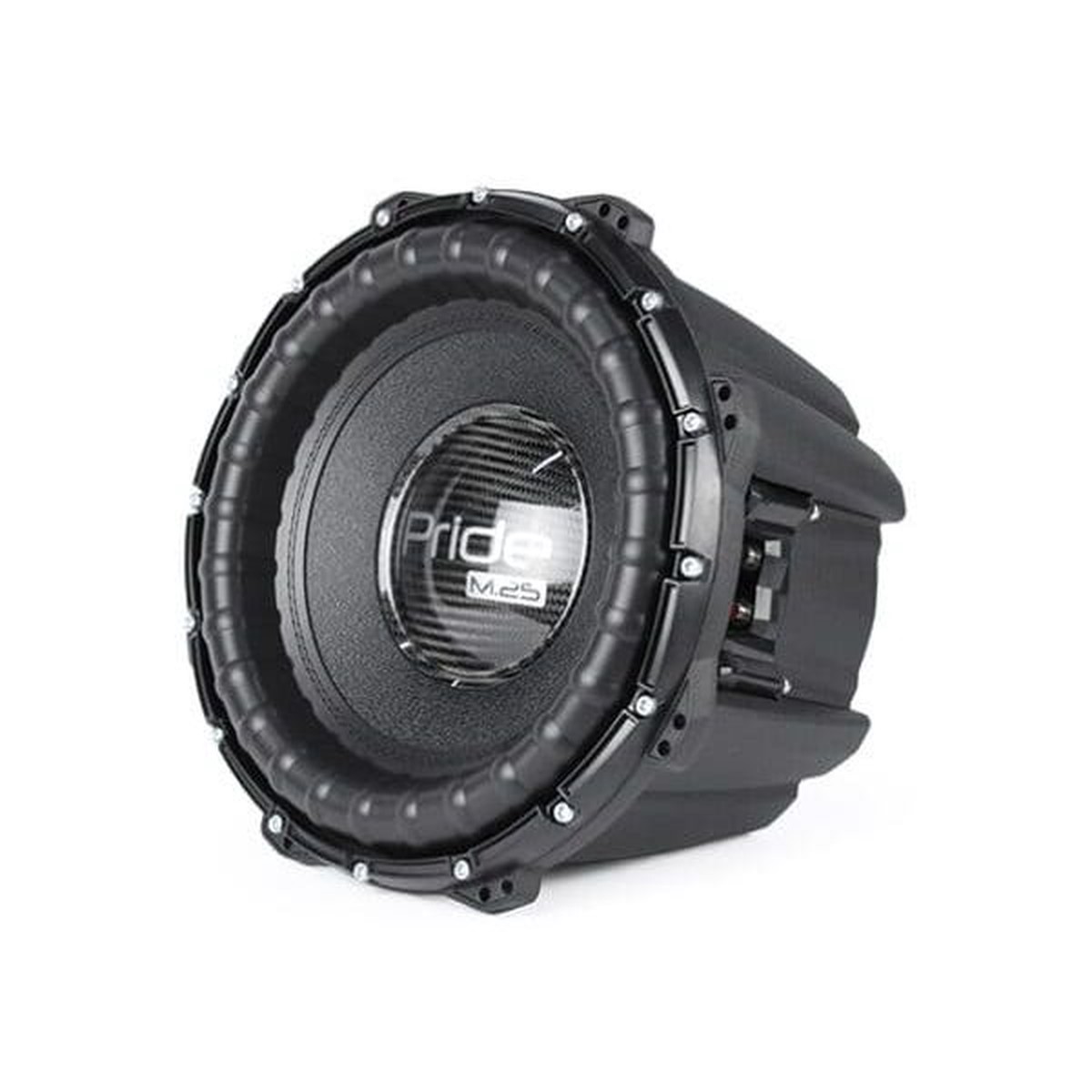

Subwoofer Pride M25.12
A new era in the history of car audio is now in your hands. Aluminum frames that act as radiators and an updated cooling system provide maximum protection against overheating, which means the ability to sound long and loud. The subwoofers received a new magnetic system and a highly linear suspension additional points in reliability and power. Enlarged centering washer with progressive corrugation shape. The shape of the diffuser made it possible to reduce the additional mass of the moving part and increase the area of adhesive contacts, which provides even more strength under high loads.
We present you a powerful and actually really popular among our consumers model subwoofer Pride M25.12.
The subwoofer has an honest RMS 2500 watts, as well as even better efficiency than previous models.
Size 12
Voice coil 3,2 round copper
The distinctive properties of our subwoofers are the high quality of the raw materials, their wear resistance and long service life, which means that your speaker system from Pride Car Audio will work properly for many years.
Please yourself with powerful bass, clear sound and reliable equipment with Pride Car Audio
Subwoofer available in USA
Part number:M25.12D07
| General feature |
| Power Handling (RMS) |
2500 W |
| VC diameter / material |
3,2″ flat aluminum |
| VC wire insulation |
Polyimide |
| Frame material |
Aluminum |
| Magnet size and q-ty |
220*27mm x 2 pcs / 8,66*1,06″ x 2 pcs |
| Spider diameter and q-ty |
230mm x 5pcs / 9,06″ x 5pcs |
| Cone material |
Paper with glass fiber |
| Dust cap material |
Carbon (real) |
| Parameters |
| DC Resistance (Re) |
0,75+0,75 |
| Free Air Resonance (Fs) Hz |
35,5 |
| Moving Mass (Mms) g |
308 |
| BL Tm |
15,7 |
| Total Speaker Q (Qts) |
0,39 |
| Electrical Q (Qes) |
0,42 |
| Mechanical Q (Qms) |
5,3 |
| Equivalent Compliance (Vas) L |
27,8 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm |
34 |
| Sensitivity (1 W / 1 m) dB |
86,8 |
| Effective Piston Area (Sd) cm |
530 |
| Physical feature |
|
| Overall Diameter |
325mm / 12,8″ |
| Mounting Hole Diameter |
307,5mm / 12,11″ |
| Mounting Depth |
197mm / 7,76″ |
| Driver Displacement |
4 l / 1,06 Gal |
| Net Weight |
21,4 kg / 46,3 lbs |
Dual 1.5 Ohm ~
| General feature |
| Power Handling (RMS) |
2500 W |
| VC diameter / material |
3,2″ flat aluminum |
| VC wire insulation |
Polyimide |
| Frame material |
Aluminum |
| Magnet size and q-ty |
220*27mm x 2 pcs / 8,66*1,06″ x 2 pcs |
| Spider diameter and q-ty |
230mm x 5pcs / 9,06″ x 5 pcs |
| Cone material |
Paper with glass fiber |
| Dust cap material |
Carbon (real) |
| Parameters |
| DC Resistance (Re) |
1,5+1,5 |
| Free Air Resonance (Fs) Hz |
36,1 |
| Moving Mass (Mms) g |
299 |
| BL Tm |
22,7 |
| Total Speaker Q (Qts) |
0,38 |
| Electrical Q (Qes) |
0,41 |
| Mechanical Q (Qms) |
5,25 |
| Equivalent Compliance (Vas) L |
28,1 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm |
34 |
| Sensitivity (1 W / 1 m) dB |
87,1 |
| Effective Piston Area (Sd) cm |
530 |
| Physical feature |
|
| Overall Diameter |
325mm / 12,8″ |
| Mounting Hole Diameter |
307,5mm / 12,11″ |
| Mounting Depth |
197mm / 7,76″ |
| Driver Displacement |
4 l / 1,06 Gal |
| Net Weight |
21,4 kg / 46,3 lbs |
