The mini MDX2500.1 1 Ohm delivers 2600 Watts RMS power to its full range 1 channel in a compact, modern amplifier.
Designed for high performance systems that require high power output but have very little space to spare, theMDX Seriesfeatures exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.
- COMPACT MINI DESIGN A small footprint mini heavy duty heatsink make this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 8.50 Width by 5.90 Length and only 2.60 Height.
- UNMATCHED PERFORMANCE Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.
- MORE POWER ON COMPACT SIZE 1 Channel 2600 watts at 1 Ohm TRUE RMS certified. Full Range Digital Class D Technology, gives you the benefit of wiring 8 speakers and dividing the power, 325 Watts RMS per 8 Ohm Speaker.
- TECHNOLOGY 4-way protection circuitry features high voltage, low voltage, shortage, and current protection. Built-in Power/Protection/Clip LED indicators on the top panel
The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams
Its wide frequency response allows you to use it in many different applications, such as subwoofers, midbass, midrange, full range speakers, phenolic drivers, titanium drivers, and super tweeters, among others.
2600 Watts at 1 Ohm Monoblock full range 10 to 25,000Hz.
The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!
High Output that takes up little space!
Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.
At only 4.05 lbs allows any custom system to achieve the highest performance and weight ratio possible.

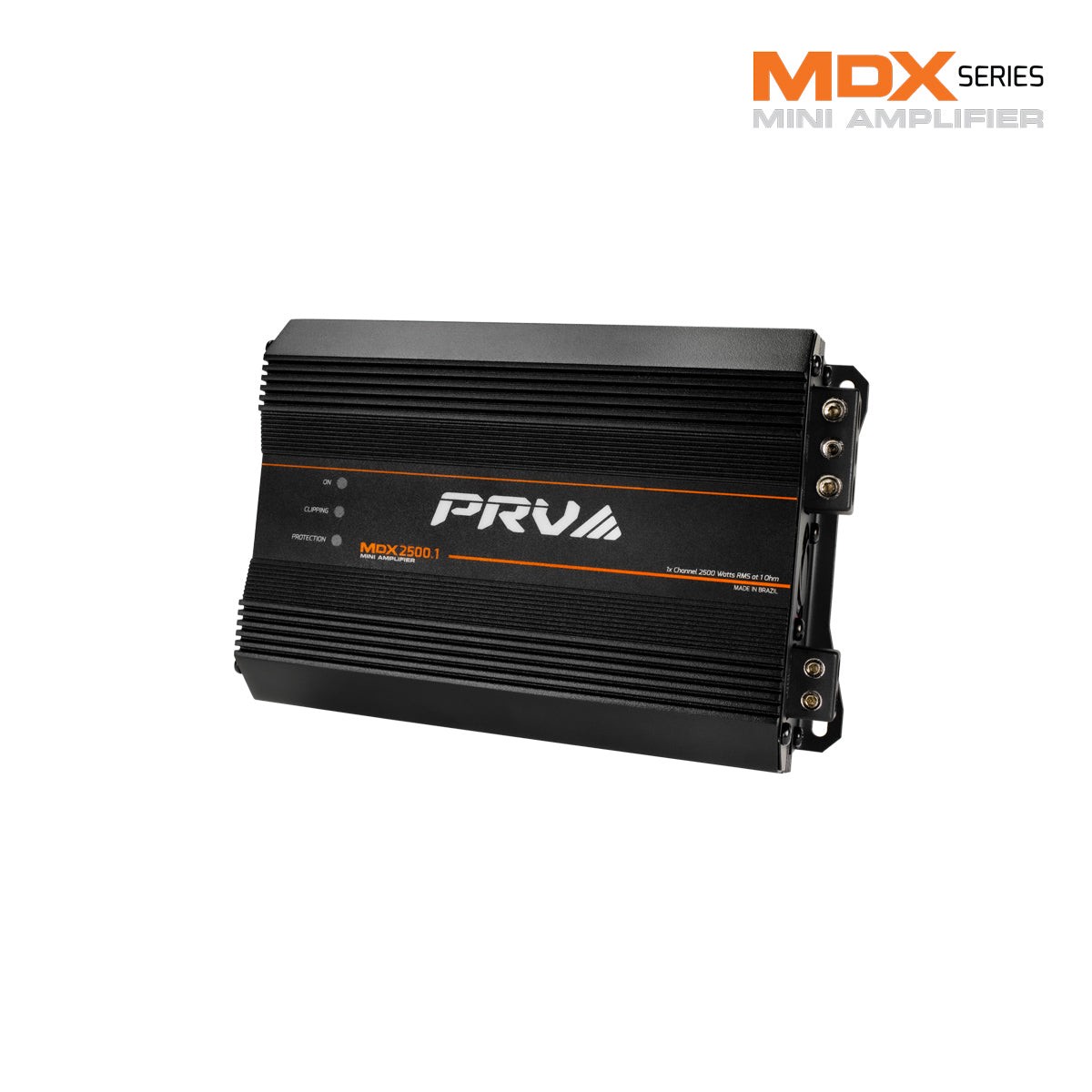

PRV Audio MDX2500.1 1 Ohm MINI 1 Channel Car Audio Amplifier 2600 Watts RMS at 1 Ohm Full Range High Output Amp
Popular Installation configurations with this amplifier:
1 channel configuration for8 Ohmcomponents, its high power output channel allow you to install 8x 8 Ohm Speakers, drivers or tweeters in parallel at 1 Ohm, giving up to325 watts per component.
1 channel configuration for4 Ohmcomponents, its high power output channel allow you to install 4x 4 Ohm Speakers in parallel at 1 Ohm, giving up to650 watts per component.
Before Installing:
You must follow the instructions for the products installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25.
Always use OFC 4 AWG Copper wire for power and ground and minimum of 12 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.
To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 150A fuse 12 inches away from the battery as a safety precaution.
The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.
