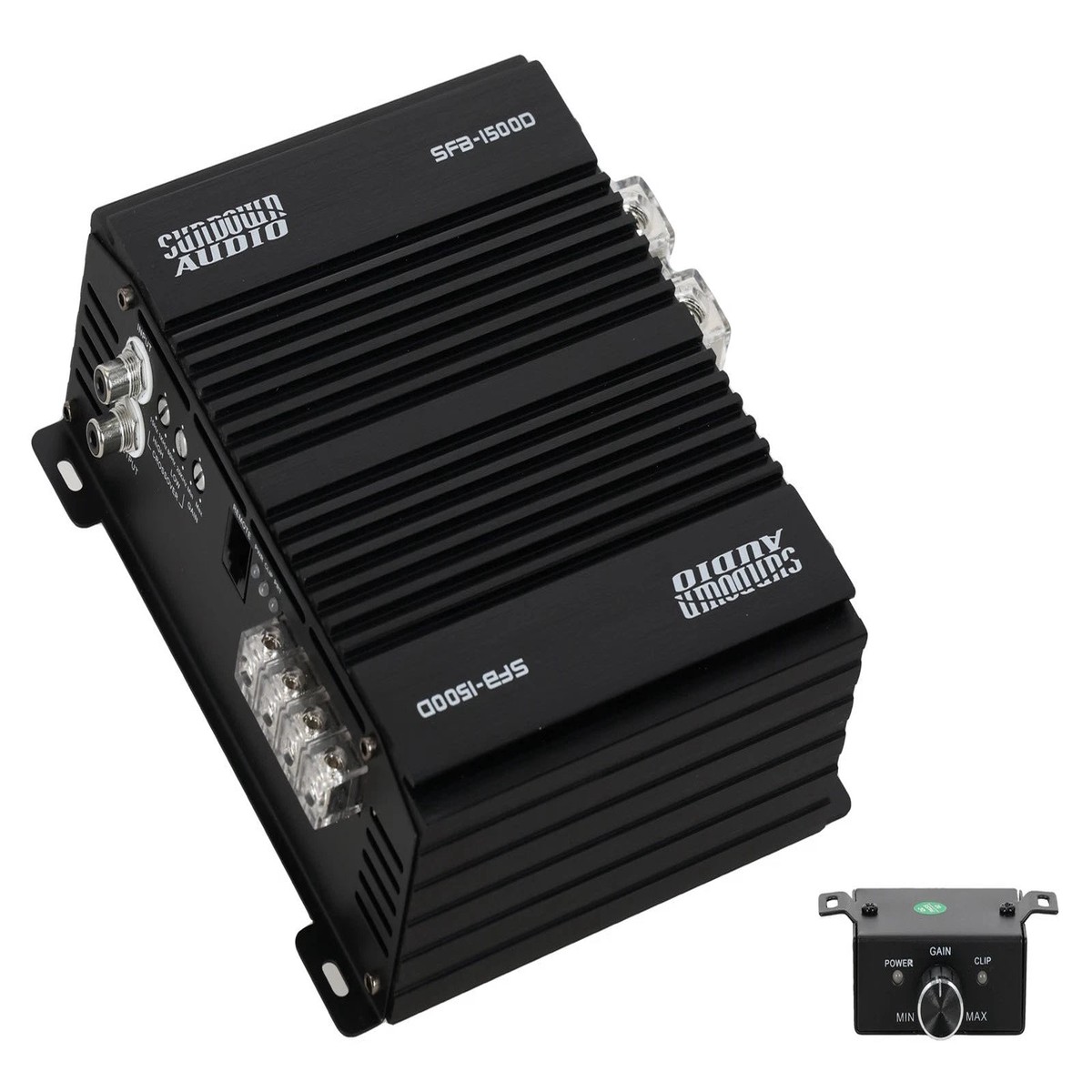

Digital Class-D Mono Block Amplifier
Dual MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave Variable Low Pass Filter
12 dB/Octave Variable High Pass Filter
9 dB/Octave Variable Bass Boost
4 Way Protection Circuit (Thermal, Voltage, Speaker Short, DC Offset)
Wired Remote Control with Clipping Indicator
Specifications
1 ohm Mono RMS 1500W
2 ohm Mono RMS 1200W
4 ohm Mono RMS 650W
Recommended Fuse Rating 140A
Low Pass Filter (Variable) 80Hz-20kHz
High Pass Filter (Variable) 15Hz-1kHz
Bass Boost @ 50Hz 0-12dB
Input Sensitivity 5V Max
S/N Ratio 100dB
Working Voltage 10.5v-15.5v
Dimensions 7.25″ x 6.75″ x 2.50″
