- Subwoofer Size: 8″ (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 6000 Watts
- Power Handling (RMS): 1500 Watts
- Sensitivity: 83.75 dB
- Frequency Response: 35 Hz – 150 Hz
- Voice Coil Diameter: 2.5″ (Inches)
- Dustcap Material: Polypropylene
- Cone Material: Moisture and UV Resistant Paper Cone
- Surround Material: NBR Foam
- Magnet Information: 174 Oz Triple Stack Ceramic
- Mounting Depth: 191.9mm / 7.56 (Inches)
- Cutout Diameter: 205mm / 8.07 (Inches)
- Overall Diameter: 249mm / 9.8 (Inches)

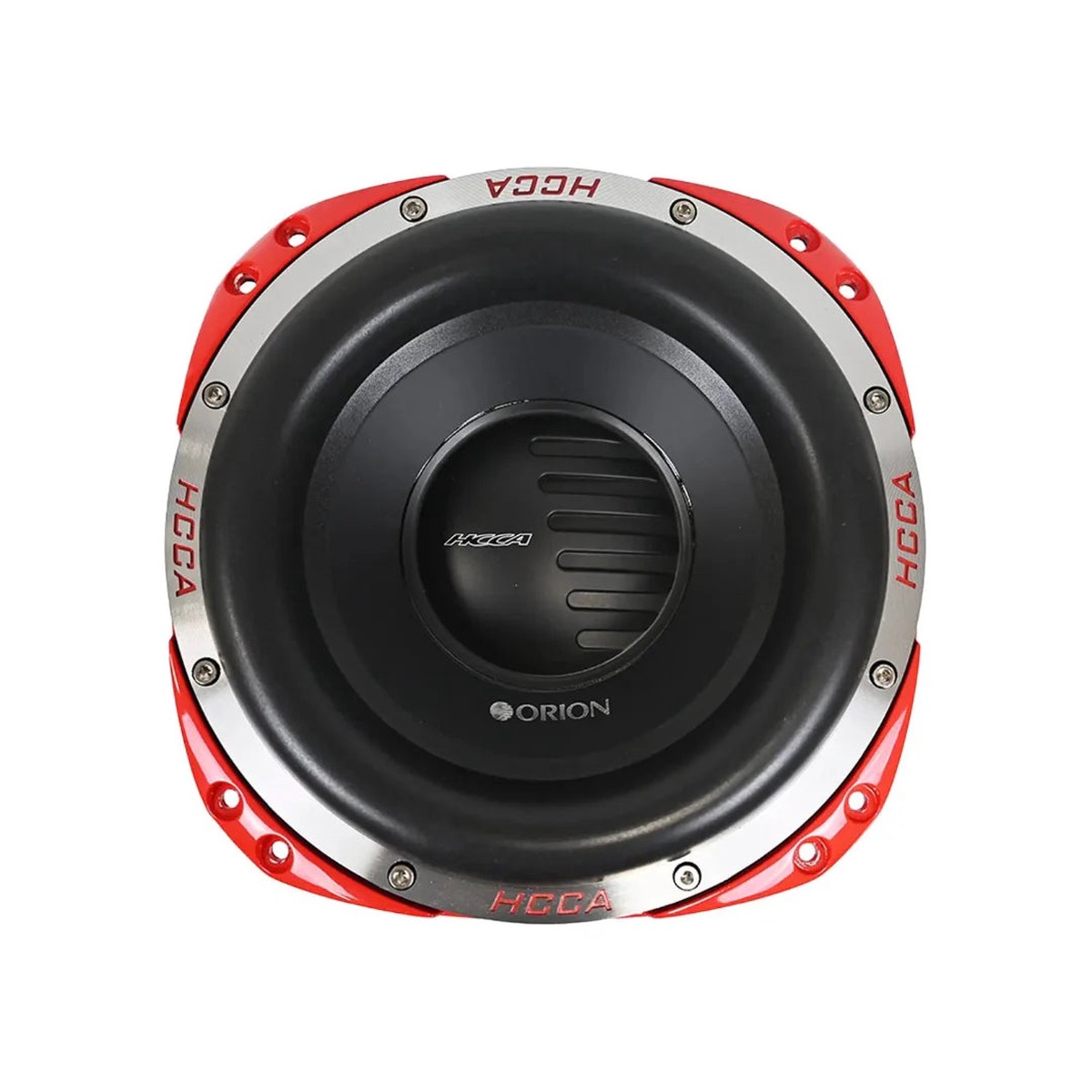

High-Performance 8 Inch Subwoofer for Powerful, Controlled Bass
TheOrion HCCA804delivers strong and controlled bass for high-performance car audio systems. Specifically, this8inch dual 4 ohm high-power subwooferproduces deep low-frequency output with excellent control. As a result, it performs well in demanding daily-driven builds. With1500W RMS and 6000W peak power, it offers serious output without focusing solely on SPL competition use.
Additionally, thedual 4-ohm voice coil configurationprovides flexible wiring options. Because of this, matching amplifier loads becomes easier across many system layouts. Therefore, the HCCA804 works well in high-output daily systems, enthusiast upgrades, and custom audio installs.
Built for Power, Control, and Long-Term Reliability
To support high output levels, the HCCA804 uses amoisture- and UV-resistant paper cone. Moreover, it features adurable NBR foam surround. Together, these components allow strong cone movement while maintaining control and sound quality.
At its core, the subwoofer uses a2.5-inch high-temperature voice coil. As a result, it manages heat more effectively during extended listening sessions. In addition, a174oz triple-stack ceramic magnet motor structuredelivers strong motor force and stability. This design helps maintain clean and consistent bass at higher power levels.
Ideal For
- High-performance daily-driven audio systems
- Enthusiast-level bass builds
- Multi-subwoofer setups with strong low-end control
- Custom car audio systems requiring high power handling
Key Features
- 8 inch dual 4 ohm high-performance subwoofer
- 1500W RMS / 6000W peak power handling
- 2.5 high-temperature voice coil
- Moisture- and UV-resistant paper cone
- NBR foam surround for controlled excursion
- Polypropylene dustcap for added cone strength
- Massive 174 oz triple-stack ceramic magnet
- Designed for high-output performance systems
- Optimized for sealed and ported enclosures
- ProvenOrion Car AudioHCCA Series engineering
