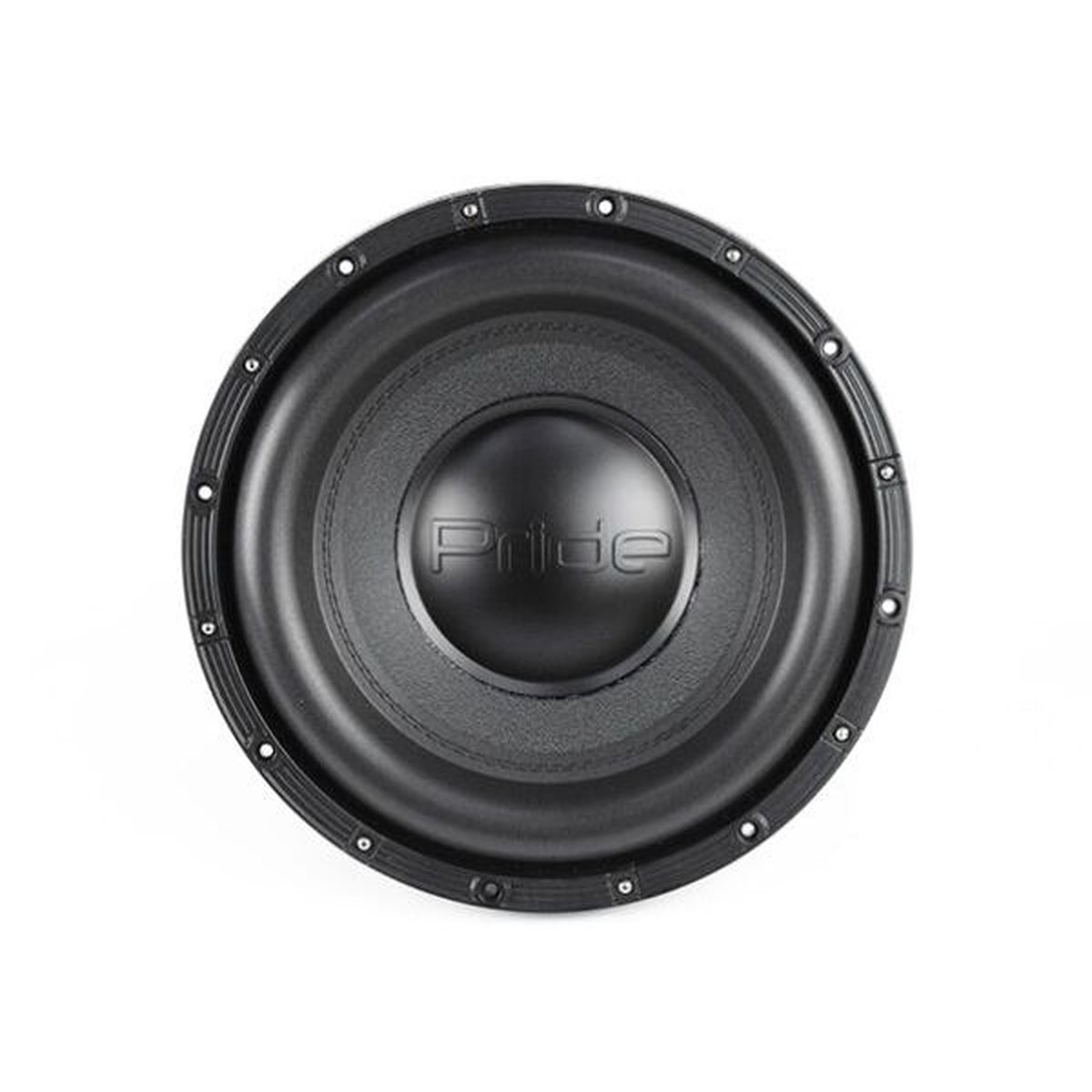

Subwoofer Pride M12.12
Buy a Pride M12.12 car subwoofer from a well-known car audio manufacturer and enjoy high-quality sound in your car! The Pride M12.12 subwoofer is capable of delivering a rated power (RMS) of 1200 W, allowing you to enjoy deep and powerful bass.
The voice coil of the Pride M12 12 speaker is made of 2.8 round copper, and the coil insulation is made of polyimide. This guarantees stable operation of the subwoofer for a long time and high-quality sound without distortion. The supporting frame material is steel, ensures rigidity and strength the entire structure.
The subwoofer impedance is 1.8+1.8 Ohms, which makes it possible to select the most suitable amplifier configuration for optimal use of power and obtaining the best sound.
The Pride M12.12 subwoofer has an outer diameter of 316 mm, an installation diameter of 280 mm and an installation depth of 161 mm. The volume displaced by the subwoofer is 2.5 liters, and the weight is only 10.3 kg.
RMS 1200W
Size 12
Enjoy deep and powerful bass during your trips to make your trips more enjoyable and comfortable.
Subwoofer available in the USA!
Part number:M12.12D18
| General feature |
| Power Handling (RMS) |
1200 W |
| VC diameter / material |
2,8″ round copper |
| VC wire insulation |
Polyimide |
| Frame material |
Steel |
| Magnet size and q-ty |
170*26mm x 2 pcs / 6,69*1,02″ x 2 pc |
| Spider diameter and q-ty |
193mm x 4 pcs / 7,6″ x 4 pcs |
| Cone material |
Paper with glass fiber |
| Dust cap material |
Hi-temp ABS |
| Parameters |
| DC Resistance (Re) |
1,8+1,8 |
| Free Air Resonance (Fs) Hz |
33,5 |
| Moving Mass (Mms) g |
278 |
| BL Tm |
18,6 |
| Total Speaker Q (Qts) |
0,5 |
| Electrical Q (Qes) |
0,56 |
| Mechanical Q (Qms) |
5,1 |
| Equivalent Compliance (Vas) L |
27,5 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm |
19 |
| Sensitivity (1 W / 1 m) dB |
84,8 |
| Effective Piston Area (Sd) cm |
465 |
| Physical Specifications |
| Overall Diameter |
316mm / 12,44″ |
| Mounting Hole Diameter |
280mm / 11,02″ |
| Mounting Depth |
161mm / 6,34″ |
| Driver Displacement |
2,5 l / 0,66 Gal |
| Net Weight |
10,3 kg / 22,71 lbs |
