FEATURES

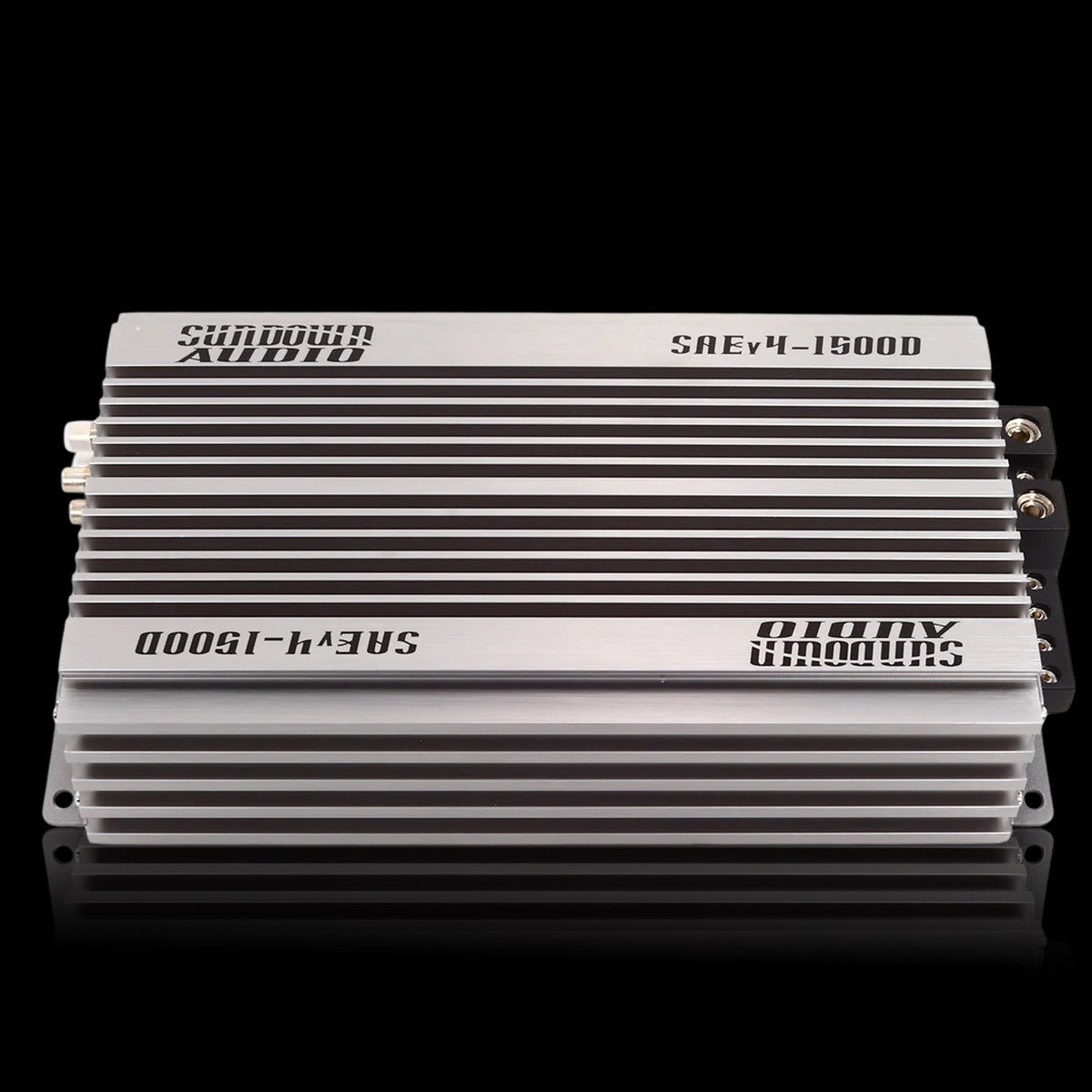

• Digital Class-D Mono Block Amplifier
• Dual MOS-FET PWM Power Supply
• 1 Ohm Stable Load
• 12 dB/Octave – Variable Low Pass Filter
• 12 dB/Octave – Variable Subsonic Filter
• 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)
• Wired Remote Control

SPECIFICATIONS

• Input Sensitivity 6V Max
• 1500 x 1 @ 1 ohms RMS
• 800 x 1 @ 2 ohms RMS
• 450 x 1 @ 4 ohms RMS
• 1 OHM Stable
• Variable Low Pass Filter : 40HZ – 180HZ
• -12dB/8 Variable Crossover Slope (LPF)
• Signal / Noise Ratio : 92DB
• Operation Voltage : DC 10.5V – 15.5V Power Input
• Recommended Fuse : 140 Amps
• Dimensions : 12.48 L x 6.3 W x 2.75 H
