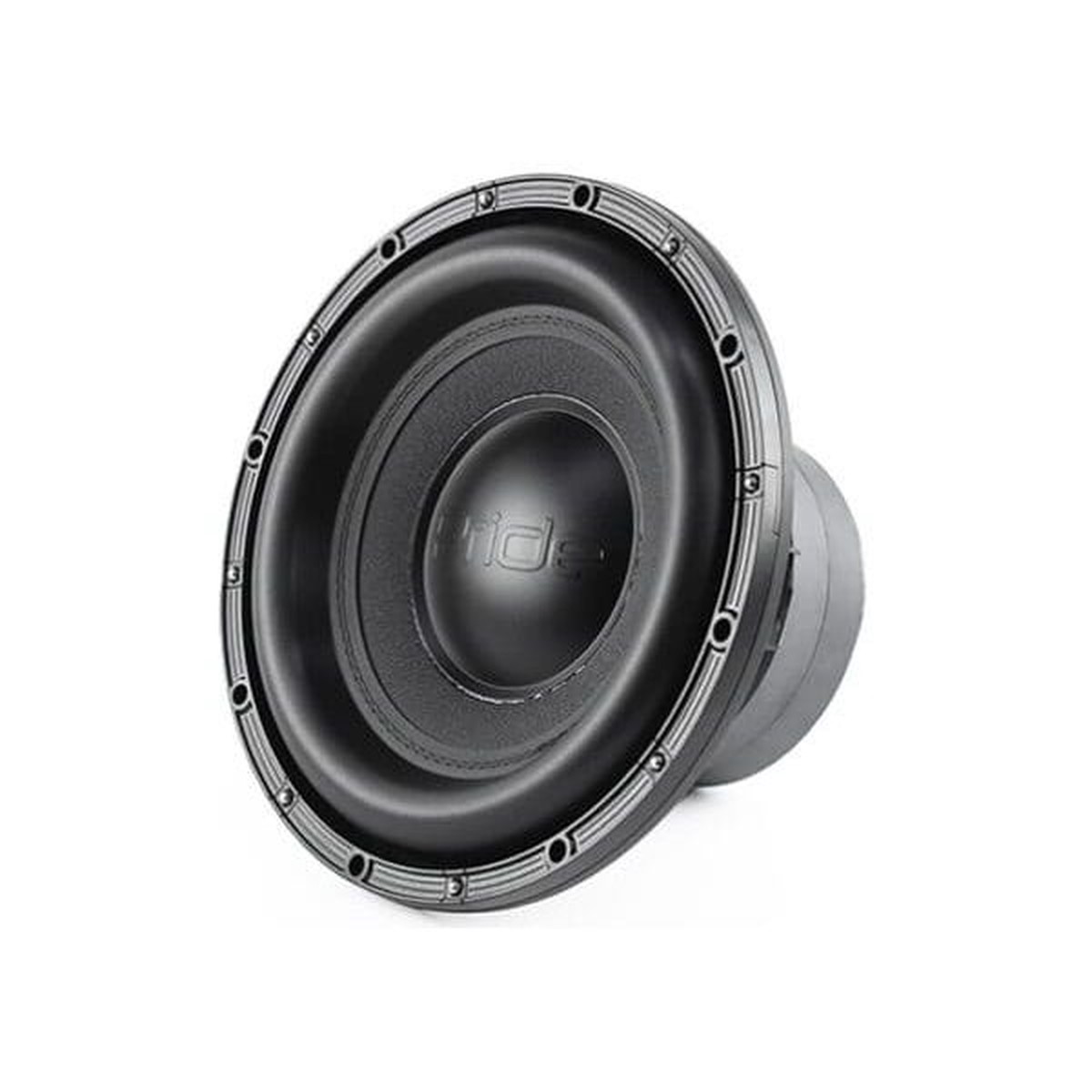

Subwoofer Pride M12.15
We present you a popular model of subwoofers Pride M12.15
Modular architecture and thats it. A new era in the history of car audio is now in your hands, all you have to do is choose the required size and power. Aluminum frames that act as radiators and an updated cooling system provide maximum protection against overheating, which means the ability to sound long and loud. The subwoofers received a new magnetic system and our highly linear suspension additional points in reliability and power. Enlarged centering washer with progressive corrugation shape. The shape of the diffuser made it possible to reduce the additional mass of the moving part and increase the area of adhesive contacts, which provides even more strength under high loads.
The subwoofer has an honest RMS 1200 watts, as well as even better efficiency than previous models.
Size 15
Voice coil 2,8 round copper
Change your car audio system with acoustics by Pride Car Audio!
Subwoofer available in the USA!
Part number:M12.15D18
| General feature |
| Power Handling (RMS) |
1200 W |
| VC diameter / material |
2,8″ round copper |
| VC wire insulation |
Polyimide |
| Frame material |
Steel |
| Magnet size and q-ty |
170*26mm x 2 pcs / 6,69*1,02″ x 2 pc |
| Spider diameter and q-ty |
193mm x 4 pcs / 7,6″ x 4 pcs |
| Cone material |
Paper with glass fiber |
| Dust cap material |
Hi-temp ABS |
| Parameters |
| DC Resistance (Re) |
1,8+1,8 |
| Free Air Resonance (Fs) Hz |
29,8 |
| Moving Mass (Mms) g |
321 |
| BL Tm |
18,7 |
| Total Speaker Q (Qts) |
0,63 |
| Electrical Q (Qes) |
0,72 |
| Mechanical Q (Qms) |
5,2 |
| Equivalent Compliance (Vas) L |
58,1 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm |
19 |
| Sensitivity (1 W / 1 m) dB |
86,9 |
| Effective Piston Area (Sd) cm |
774 |
| Physical Specifications |
| Overall Diameter |
390mm / 15,35″ |
| Mounting Hole Diameter |
352mm / 13,86″ |
| Mounting Depth |
187mm / 7,36″ |
| Driver Displacement |
3,5 l / 0,92 Gal |
| Net Weight |
10,6 kg / 23,37 lbs |
