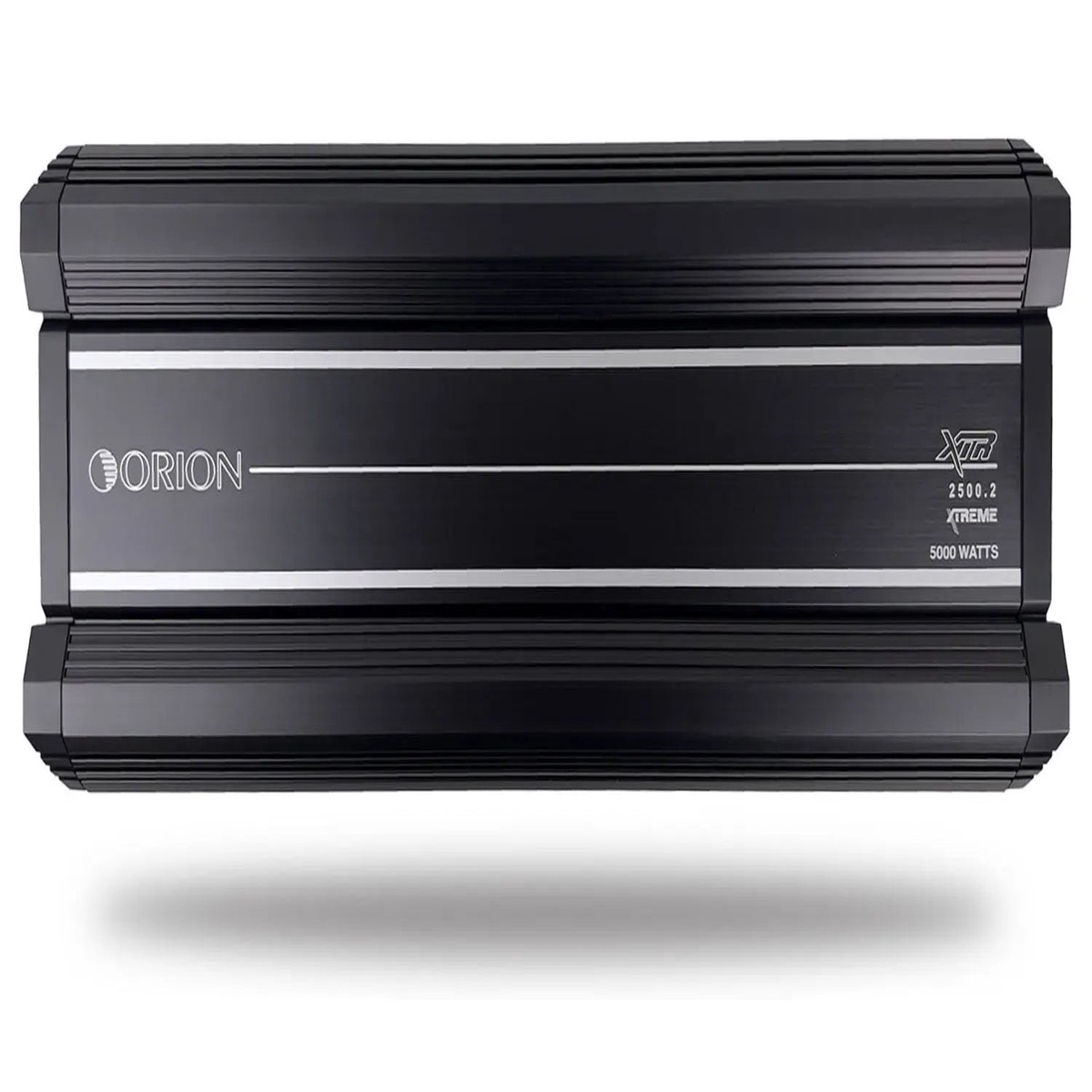

ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier
Unleash Auditory Excellence:The ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier redefines audio supremacy. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction: Rediscover your music in its fullest detail. Every note, beat, and melody from the softest to the most dynamic is meticulously reproduced for an immersive and authentic listening experience.
Unrivaled Power and Precision: Experience your music with unmatched force and precision. The ORION XTR2500.2 XTR Series Amplifier seamlessly combines commanding power with exceptional audio quality, crafting a sonic masterpiece that resonates deeply.
Elevate Your Drive: Step into the realm of sonic excellence with the ORION XTR2500.2 XTR Series 2500W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It’s time to embrace sound in its purest form.
Class AB Amplification:Experience the ultimate blend of efficiency and precision with Class AB amplification for commanding and accurate sound reproduction.
2500 Watts RMS:Immerse yourself in a world of sonic supremacy with 2500 Watts RMS, delivering unparalleled audio performance.
Precision Audio Control:The adjustable built-in crossover enables meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement:Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures:Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design:The amplifier’s sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence:Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
-All MOSFET Power Supply & Output Stage
-Heavy Gauge / High Current Custom Power and Speaker Terminals
-2-Ohm Stable
-RCA Out Throughput
-12dB Octave Low-Pass Filter
-Electronic Crossover Network
-Bass Boost Circuit
-Intelligent Power and
-Protection LED Indicator
-Soft Turn-on/Turn-off
-Turn-On Delay
-Fault and Protection Monitoring
-4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage.
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 750W
– RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 1250W
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 2500W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 12 AWG.
Frequency Response: 10Hz – 35kHz
Linear Bandwidth 20Hz to 65kHz +/- 3 dB
High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
Low Pass Crossover Continuously variable (50-400Hz)
Supply Voltage: 9 – 16V
Amplifier Efficiency: >80%
Damping Factor: 100dB
Signal to Noise Ratio: >95dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 – 180
Bass Boost: 0-18dB Variable
Variable Input Level Control: 0.2V – 6.0V
Fuses: 200A recommended
Dimensions (L x W x H): 21.26″ x 9.25″ x 2.75″ (540x235x70mm)
