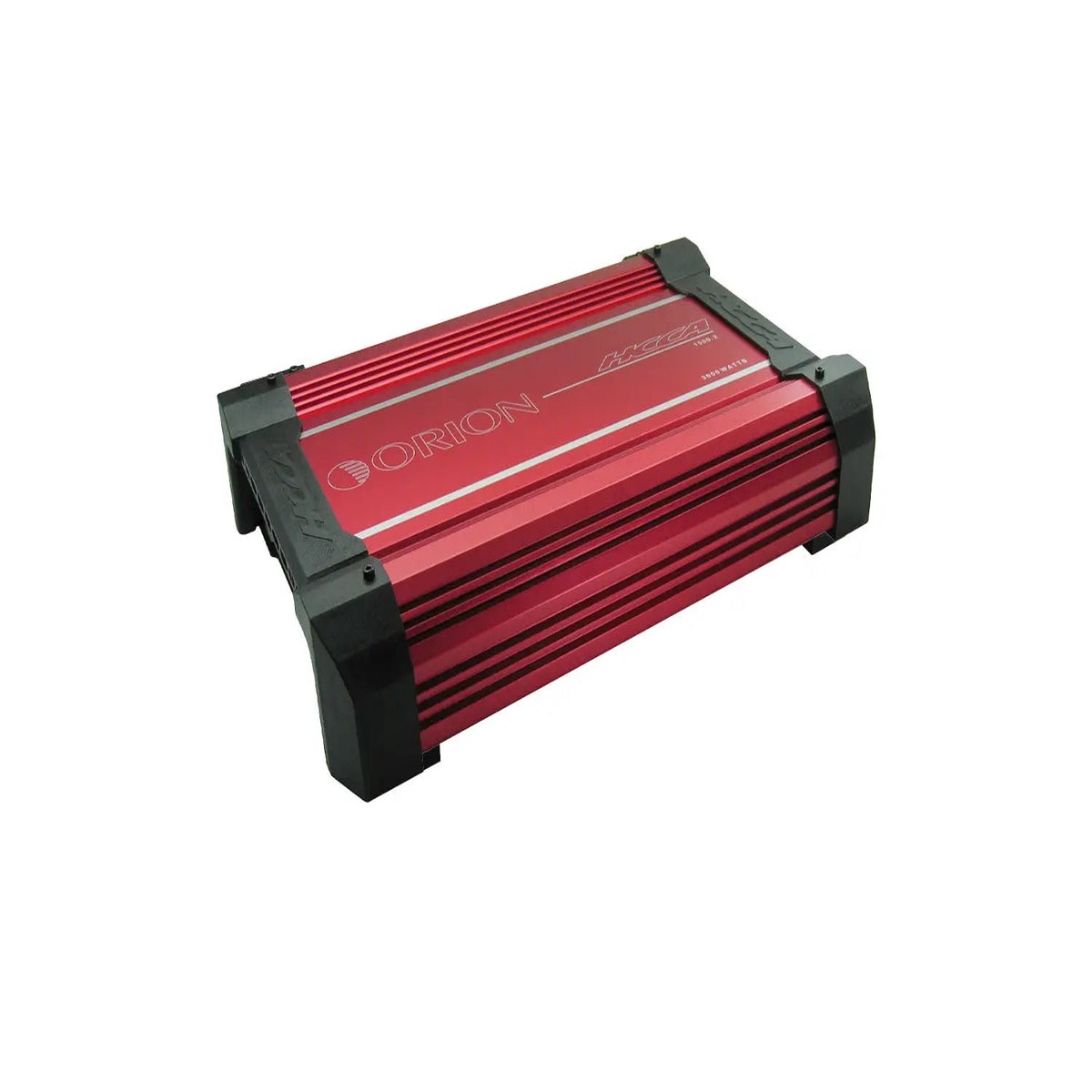

ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier
Unleash Audio Excellence and Power: The ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier embodies a perfect harmony of audio excellence and raw power. Designed for audiophiles who demand uncompromising performance, this amplifier takes your audio experience to a whole new level, delivering remarkable clarity, precision, and dynamic sound.
Unleash Your Audio Journey:Experience the power and precision of the ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier. Crafted with meticulous attention to detail and advanced features, this amplifier transforms your listening experience into a sonic masterpiece.
Exceptional Sound Reproduction:Revel in crystal-clear sound. From the softest melodies to the most intense crescendos, every element of your music is reproduced with exceptional clarity and accuracy.
Unmatched Performance:Rediscover your favorite tracks with newfound depth and richness. The ORION HCCA1500.2 HCCA Series Amplifier seamlessly blends remarkable power with sonic precision, creating an auditory experience that sets new standards.
Elevate Your Drive:Elevate your driving experience with the ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier. Redefine your audio journey and enjoy a level of performance that elevates your music to new heights.
Class-AB Amplification:Experience the synergy of Class-AB amplification, combining the efficiency of Class B and the sound quality of Class A for an audio experience that resonates deeply.
1500 Watts RMS:Immerse yourself in a world of exceptional audio with 1500 Watts RMS, delivering powerful and precise sound performance.
Precision Audio Control:The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement:Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures:Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting durability.
Compact and Stylish Design:The amplifier’s sleek design offers versatile installation options without compromising performance or aesthetics
Engineered Excellence:Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
Fault and Protection Monitoring
4-Way Protection:Thermal, DC offset, Short Protection, under & over voltage
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
– RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 750W
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1500W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
– Frequency Response 10Hz to 35kHz +/- 1 dB
– Linear Bandwidth 20Hz to 65kHz +/- 3 dB
– High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
– Low Pass Crossover Continuously variable (40-300Hz)
– Phase shift control 0 to 180
– Bass Boost 0-18dB variable
– Distortion at Rated Power 0.005% THD+N
– Damping Factor > 100
– Input Sensitivity(RMS) 200mV to 6V
– Supply Voltage Range 9 to 16V
– Input Impedance 20K Ohms
– Amplifier Efficiency > 67% into 2 Ohms load at max. power
– SNR at rated output power and lowest impedance > 95dB
– Fuses: 150A recommended (not included)
– Dimensions (L x W x H): 15.75″ x 11.89″ x 3.15″ (400x302x80mm)
