- 1,000 @ 1 ohms RMS
- 850 @ 2 ohms RMS
- 500 @ 4 ohms RMS
- Variable 12dB low pass filter: 80HZ 20kHZ
- Variable 12dB high pass filter: 15HZ 1kHZ
- Variable 12dB Bass Boost @ 50Hz 0-9dB
- Power, protection & clipping indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Wired remote control with clipping indicator

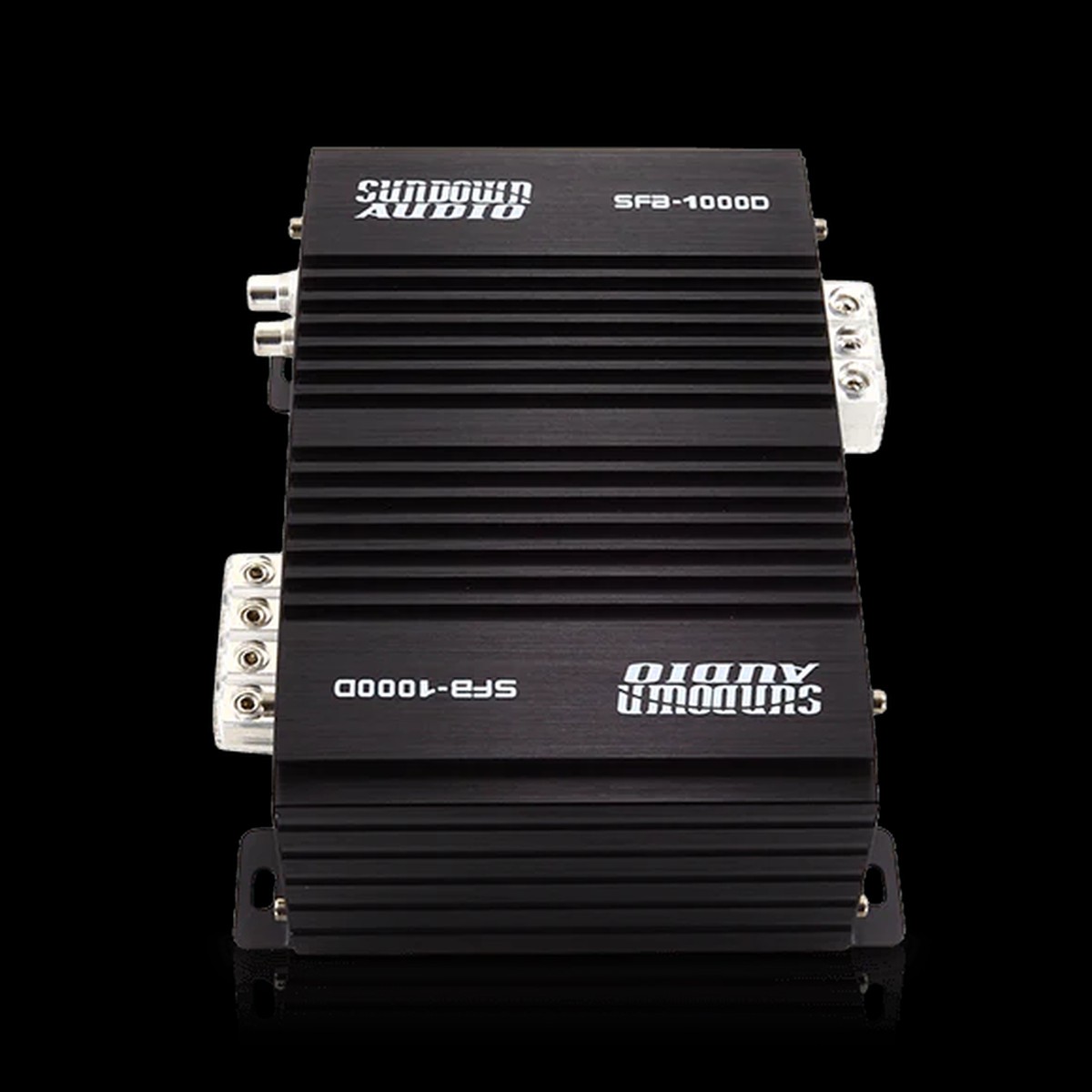

The Brazilian Style SFB packs a powerful punch in a compact size. The flexible SFB (Sundown Full Bridge)packs a powerful punch in a compact size! Stable down to 1 ohm, the full-range SFB can be used as a subwoofer amp, or as an ideal power source for an array of P.A. speakers. If you are looking for raw power on a budget, look no further than the SFB!
Product Manual
Specifications
- Recommended Fuse Rating 100A
- Low Pass Filter (Variable) 80Hz-20kHz
- High Pass Filter (Variable) 15Hz-1kHz
- Bass Boost @ 50Hz 0-12dB
- Input Sensitivity 5V Max
- S/N Ratio 100dB
- Working Voltage 10.5v-15.5v
- Dimensions 7.25″ x 5.75″ x 2.50″
