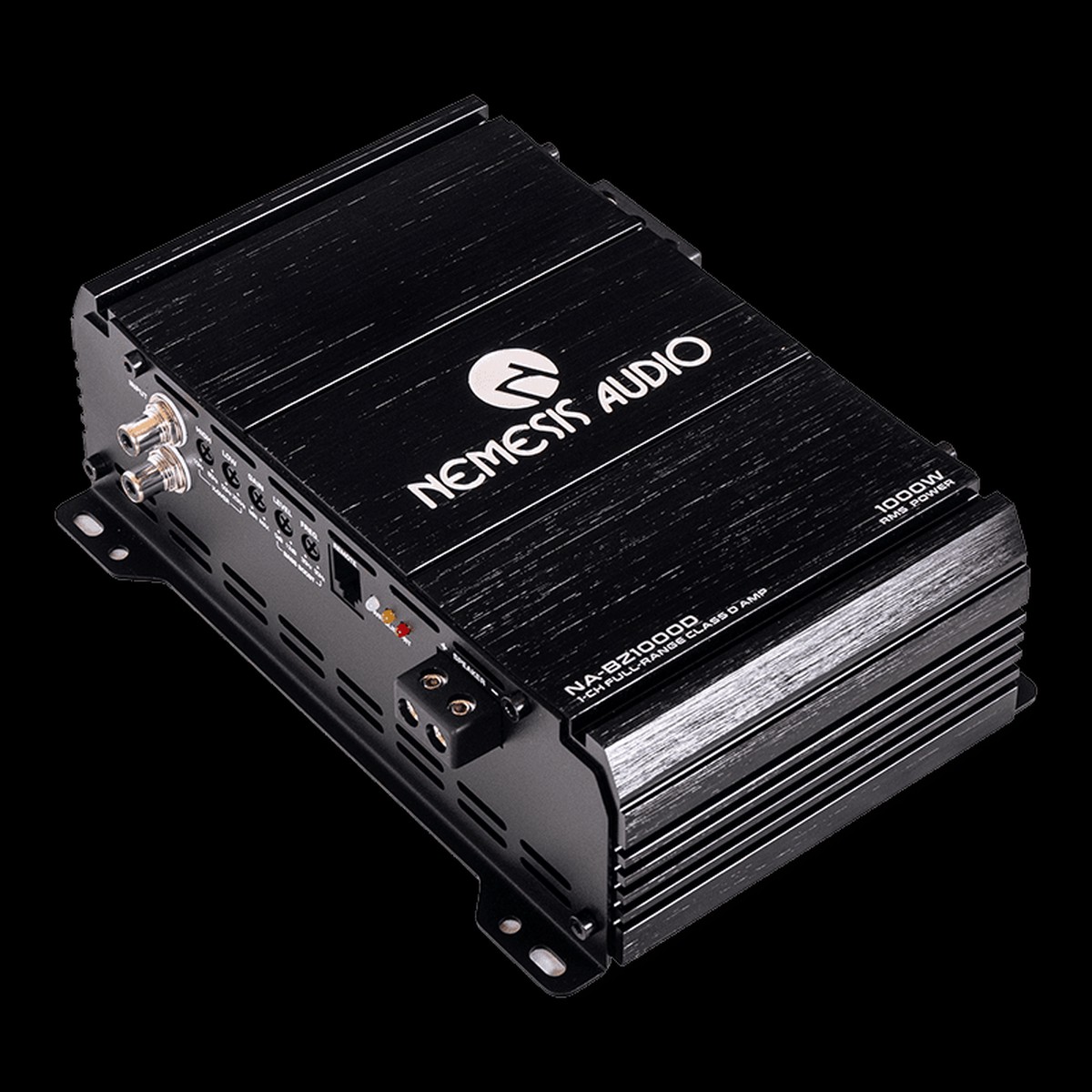

The Nemesis Audio NA-BZ1000D is a compact mono full range Class D amplifier designed for efficient power and flexible system tuning. Built for 1-ohm stable operation, it delivers up to 1000W RMS for high-output car audio systems.
Specifications
- Amplifier Type:Mono full range Class D
- RMS Power @ 4 Ohms:1 x 450W
- RMS Power @ 2 Ohms:1 x 830W
- RMS Power @ 1 Ohm:1 x 1000W
- Working Impedance:1 Ohm stable
- Input Sensitivity:0.25V to 4V
- Low Pass Filter:50Hz to 20kHz
- Subsonic Filter:10Hz to 80Hz
- Bass Boost:0dB to 12dB
- Frequency Response:10Hz to 20kHz
- Signal-to-Noise Ratio:85dB
- THD @ 4 Ohms:0.4%
- Operating Voltage:9V to 16V
- Fuse Rating:80A
- Dimensions:4.73 x 8.35 x 2.56 in
This amplifier is a strong match for systems that need dependable full range power in a smaller chassis.
