- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap
- Aluminum 2.75 voice coil former for superior heat dissipation
- Innovative high-velocity vented frame spacer ring
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- High-temperature voice coil wire
- Spring-loaded terminals
- Stitched-on double XL tinsel lead wires

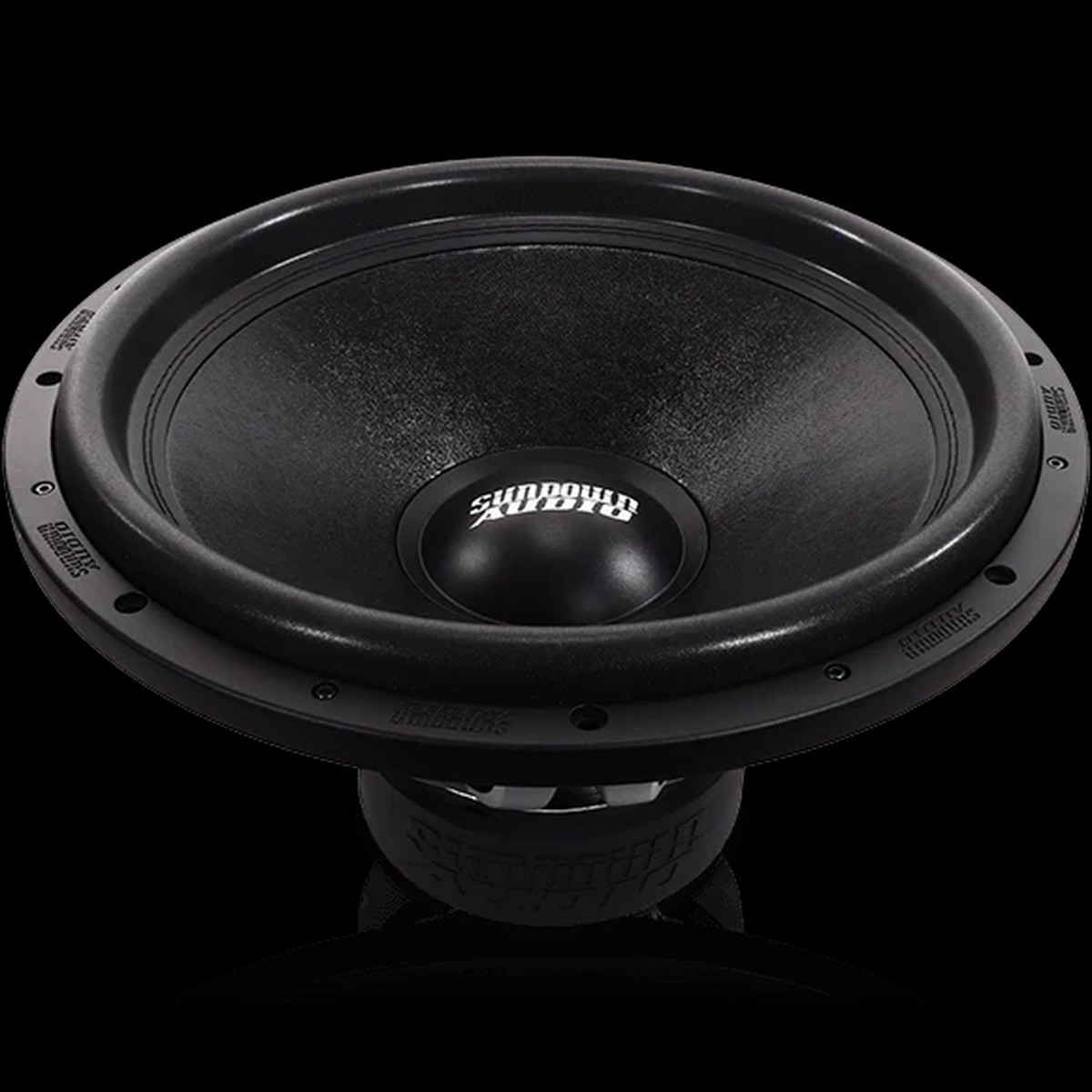

A top-down improvement from previous models, the SA 18-inch sub features the largest motor in the series, now delivering over 35mm of mechanical excursion. The 2.75 coil punches way above its weight, outperforming most 3 coils without adding mass. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor and coil setup is mated to an extremely robust double-layer spider with fully tied-on & doubled-up XL tinsel leads. A competition-grade paper cone and a strong foam surround were used to complete this masterpiece.
| T/S SPECS |
SAV2 18 D2 |
SAV2 18 D4 |
| RE (Ohms) |
3.97 |
6.06 |
| FS (Hz) |
29.051 |
31.868 |
| VAS (L) |
114.234 |
106.964 |
| Qes |
0.424 |
0.458 |
| Qms |
3.052 |
2.853 |
| Qts |
0.372 |
0.395 |
| Le (mH) |
3.6326 |
4.7903 |
| BL (NA) |
32.523 |
38.159 |
| Mms (Grams) |
619.174 |
549.519 |
| Cms (uM/N) |
48.474 |
45.389 |
| Sens (dB @ 1w/1m) |
90.1 |
90.7 |
| Xmax |
19mm |
19mm |
| Sealed Enclosure |
3.5 cu ft |
| Ported Enclosure |
4.5 cu ft |
| Recommended Tuning |
35Hz |
| Recommended Port Area |
64 sq in |
| Displacement |
0.2 cu ft |
| Depth |
10.125″ |
| Outside Diameter |
18.62″ |
| Cut-Out |
16.69 |
| Physical Dimensions |
Download |
