- Subwoofer Size: 12″ (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 2400 Watts
- Power Handling (RMS): 600 Watts
- Sensitivity: 87.27 dB
- Frequency Response: 20 Hz – 250 Hz
- Voice Coil Diameter: 2″ (Inches)
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Paper / Fiber Blend Cone
- Surround Material: Santoprene
- Magnet Information: 55 Oz Ceramic
- Mounting Depth: 145mm / 5.71 (Inches)
- Cutout Diameter: 279mm / 10.98 (Inches)
- Overall Diameter: 319mm / 12.56 (Inches)

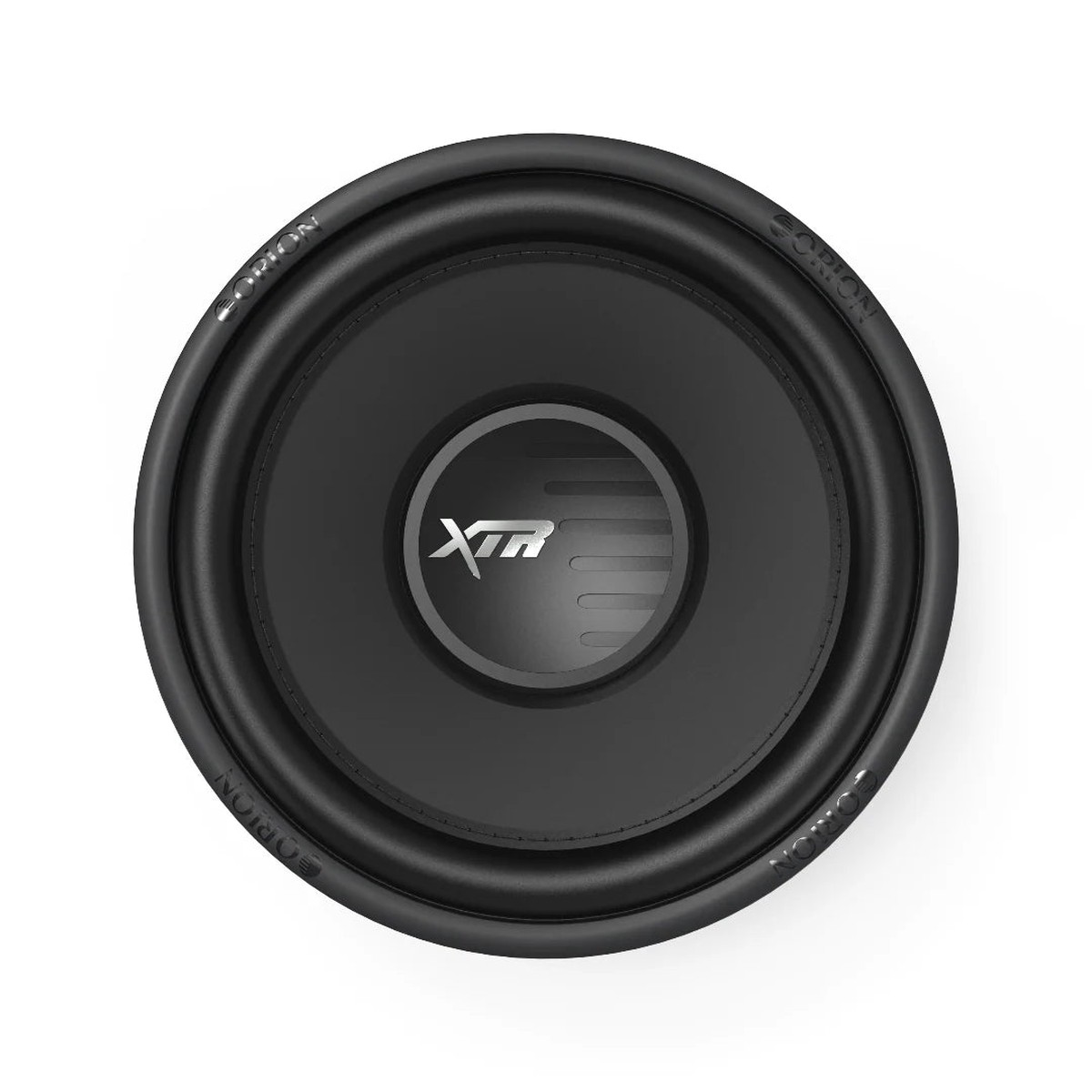

High-Output 12 Inch Subwoofer with Flexible Wiring and Deep Bass
The Orion XTR12D4 delivers powerful and controlled bass in a performance-focused design. Specifically engineered as a 12 inch dual 4 ohm car subwoofer, it produces deep low-frequency output with accuracy and efficiency. As a result, it works well in a wide range of system builds. With 600W RMS and 2400W peak power, it offers an excellent balance of output, durability, and long-term reliability.
Additionally, the dual 4-ohm voice coil configuration provides flexible wiring options. Because of this, matching amplifier loads becomes easier across different setups. Therefore, the XTR12D4 is ideal for daily-driven systems, high-output builds, and multi-subwoofer configurations.
Built for Clean, Powerful Output
To ensure consistent performance, the XTR12D4 features a UV-coated paper and fiber blend cone. Moreover, it uses a durable Santoprene surround to improve excursion control. Together, these materials help reduce distortion while maintaining accurate bass response.
A polypropylene dustcap reinforces the cone assembly. As a result, stability is maintained during higher output levels. In addition, a 55 oz ceramic magnet motor structure provides strong control and efficiency across the operating range.
Whether installed in a sealed enclosure for tight bass or a ported enclosure for added impact, this 12 inch dual 4 ohm car subwoofer delivers punchy, controlled low frequencies that remain clean and defined.
Ideal For
- Trunk-based custom installations
- High-output daily driving systems
- Multi-subwoofer setups using dual voice coils
- Performance-focused car audio builds
Key Features
- 12 inch dual 4 ohm car subwoofer
- 600W RMS / 2400W peak power handling
- Dual voice coil design for flexible wiring configurations
- UV-coated paper and fiber blend cone
- Santoprene surround for durability and control
- Polypropylene dustcap for added cone stability
- 55 oz ceramic magnet motor structure
- 6.22 mounting depth
- Optimized for sealed and ported enclosures
- Proven Orion Car Audio XTR Series build quality
