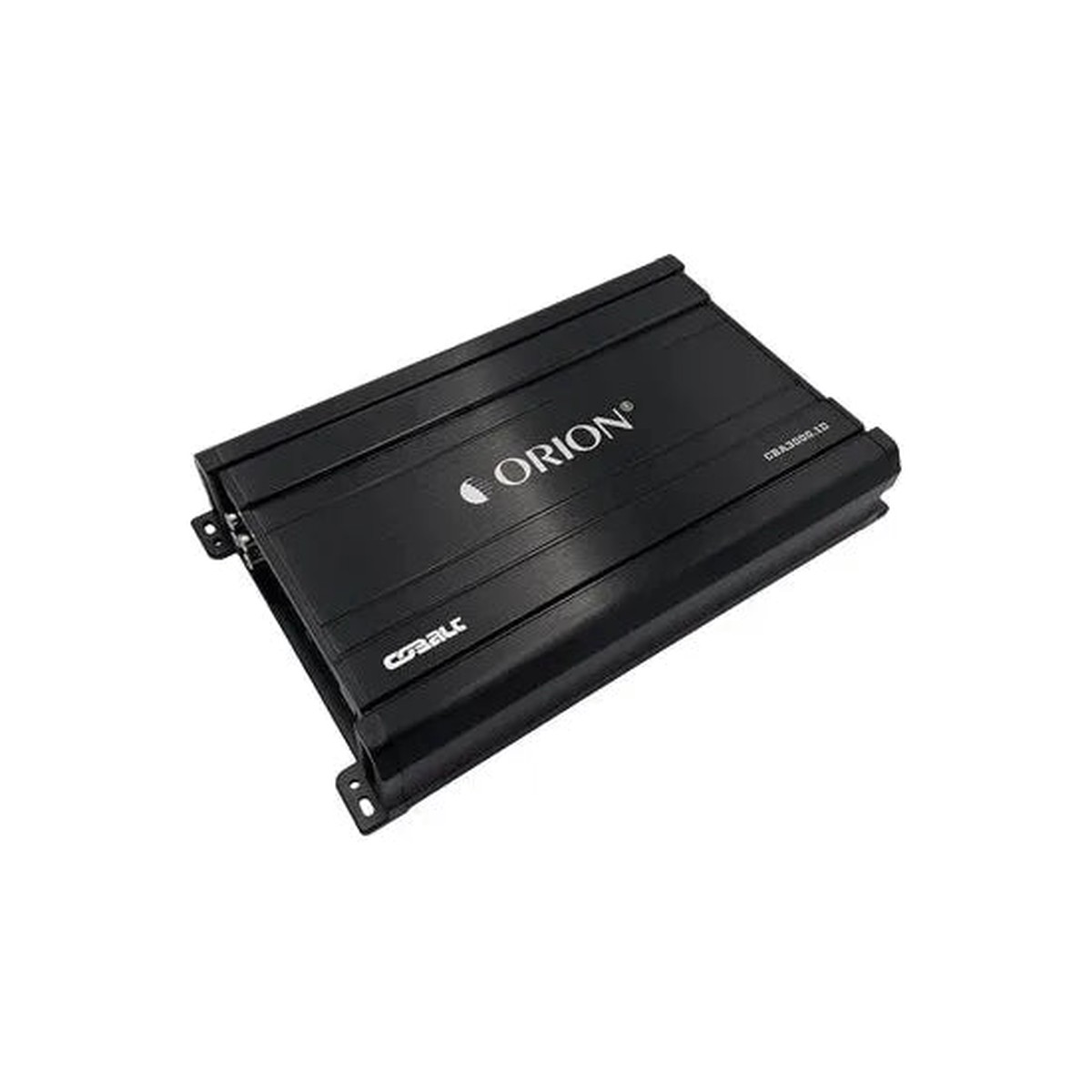

ORION CBA3000.1D COBALT Series 3000 Watts MAX 1-Channel Class D Amplifier

Unleash Auditory Excellence
The ORION CBA3000.1D COBALT Series 3000 Watts MAX 1-Channel Class D Amplifier sets a new standard for audio prowess. Through advanced features and precision engineering, this amplifier transcends boundaries, delivering powerful, accurate, and controlled sound to your car audio system.

Immersive Sound Reproduction
Prepare for an elevated musical journey. Every note, beat, and melody from the softest to the most dynamic is meticulously reproduced for an immersive and authentic listening experience.

Powerful and Precise
Experience the fusion of raw power and precision. The ORION CBA3000.1D COBALT Series Amplifier seamlessly blends immense power with impeccable audio quality, creating a symphony of sound that resonates deeply.

Enhance Your Drive
Step into the realm of auditory mastery with the ORION CBA3000.1D COBALT Series 3000 Watts MAX 1-Channel Class D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It’s time to embrace sound in its purest form.

Class D Amplification –Embrace the efficiency and precision of Class D amplification for commanding and accurate sound reproduction.
3000 Watts Max Power –Immerse yourself in a realm of sonic splendor with a maximum power output of 3000 Watts, delivering a captivating auditory experience.
Precision Audio Control –The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement –Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures –Equipped with protection circuitry, the amplifier ensures longevity by guarding against overheating and short circuits.
Compact and Efficient Design –The amplifier’s streamlined design ensures versatile installation options without compromising performance.
Engineered Excellence –Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
1-Ohm Stable
Remote Gain Controller Included
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-offTurn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

– MAX MUSIC POWER 3000W

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

– Frequency Response: 10Hz – 250Hz
– Subsonic (15 – 50Hz)
– Low Pass Crossover Continuously variable (40-250Hz)
– Supply Voltage: 10 – 16V
– Input Impedance: 22kOhm – Signal to Noise Ratio: >90dB
– Phase Shift: 0/180 Degrees
– Bass Boost: 0 – 12dB Variable
– Variable Input Level Control: 0.2V – 6.0V
– Fuses: 60A recommended (2 x 30A ATC)
– Dimensions (L x W x H): 9.92″ x 7.09″ x 2.13″ (252x180x54mm)
