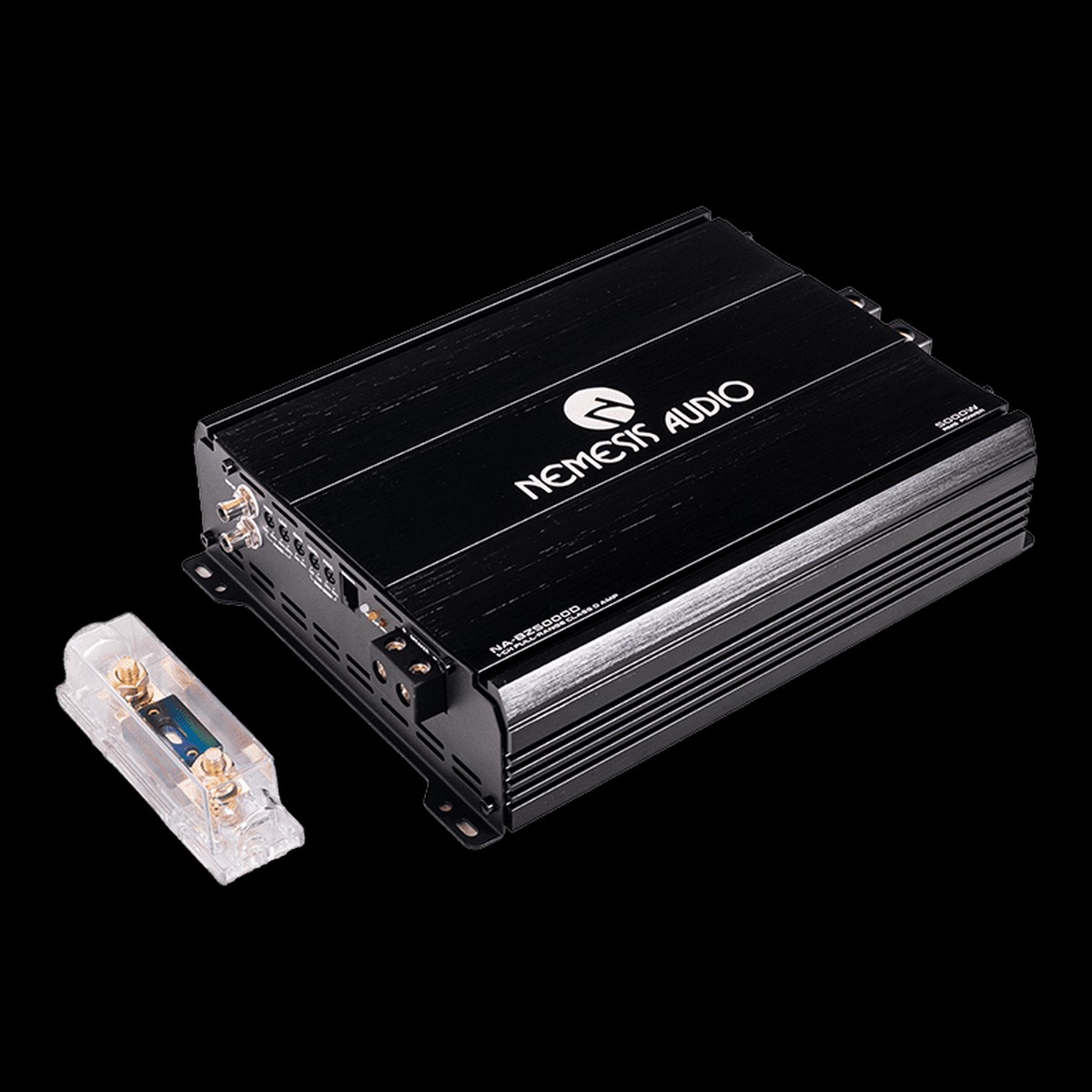

The Nemesis Audio NA-BZ5000D is a high-power mono full range Class D amplifier made for demanding car audio systems. Delivering up to 5000W RMS at 1 ohm, it is built for customers who need serious output and stable performance.
Specifications
- Amplifier Type:Mono full range Class D
- RMS Power @ 4 Ohms:1 x 1600W
- RMS Power @ 2 Ohms:1 x 3200W
- RMS Power @ 1 Ohm:1 x 5000W
- Working Impedance:1 Ohm stable
- Input Sensitivity:0.25V to 4V
- Low Pass Filter:50Hz to 20kHz
- Subsonic Filter:10Hz to 80Hz
- Bass Boost:0dB to 12dB
- Frequency Response:10Hz to 20kHz
- Signal-to-Noise Ratio:85dB
- THD @ 4 Ohms:0.4%
- Operating Voltage:9V to 16V
- Fuse Rating:350A
- Dimensions:10.20 x 8.35 x 2.56 in
Use the NA-BZ5000D for larger builds that require more headroom, stronger output, and dependable BZ Series power.
