Specifications
| Model |

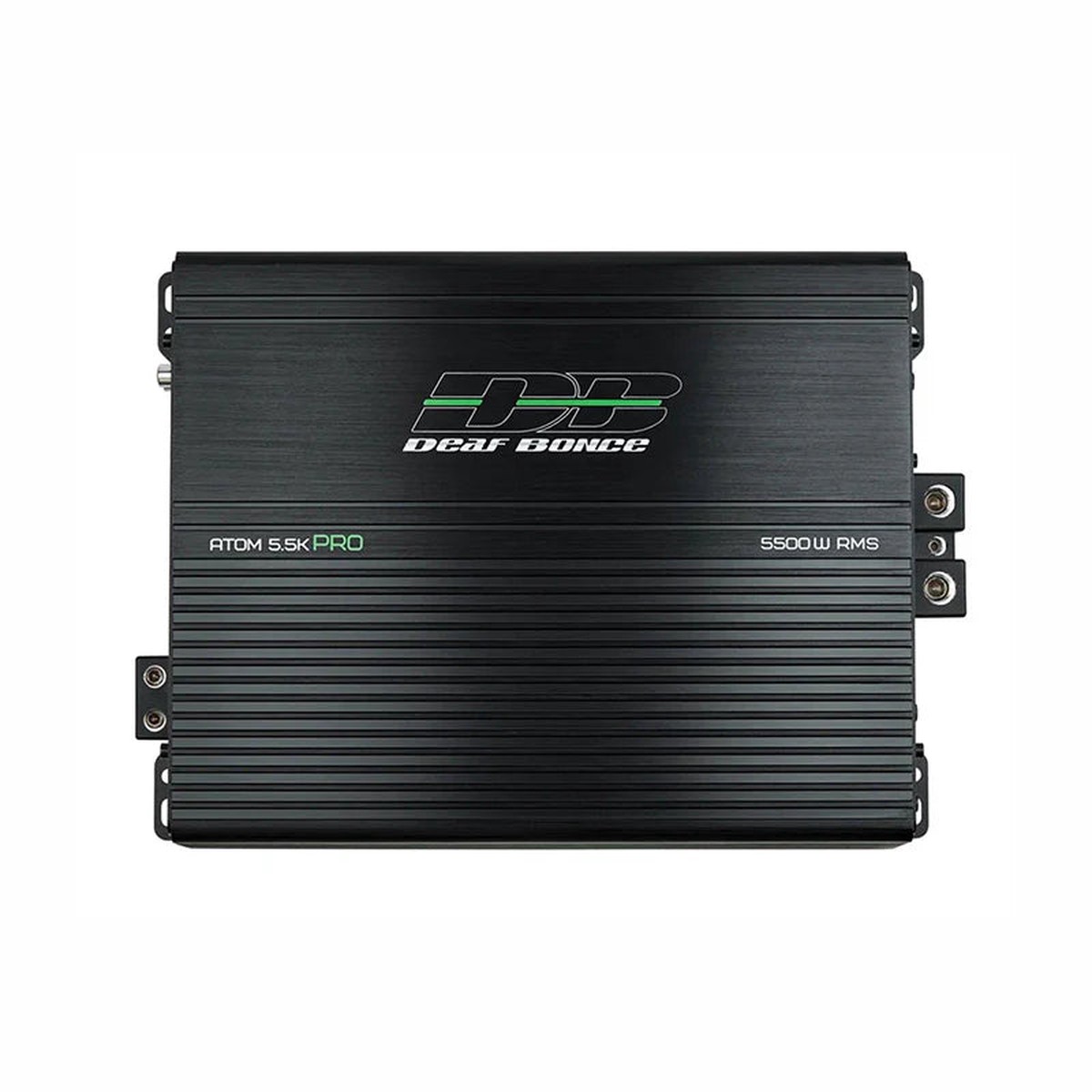

ATOM 5.5K PRO |
| Class |
D |
| Number of the channels |
1 |
| Frequency response |
10 – 250 Hz |
| 1 Ohm RMS Power (14.4 V) |
5500 W |
| 1 Ohm RMS Power (12 V) |
3900 W |
| 2 Ohm RMS Power (14.4 V) |
2850W |
| 4 Ohm RMS Power (14.4 V) |
1710W |
| Minimum permissible load on the channel |
1 Ohm |
| Low pass filter |
40 – 250 Hz |
| Crossover |
12 dB/Oct |
| Subsonic filter |
10 – 50 Hz |
| Bass frequency adjustment |
35 – 90 Hz |
| Input terminal |
0 Ga |
| Output terminal |
4Ga |
| Working voltage |
9 – 15 V |
| Signal-to-noise ratio |
82 dB |
| Size (WxLxH) |
11.4 x 8.6 x 2.6 inch |
