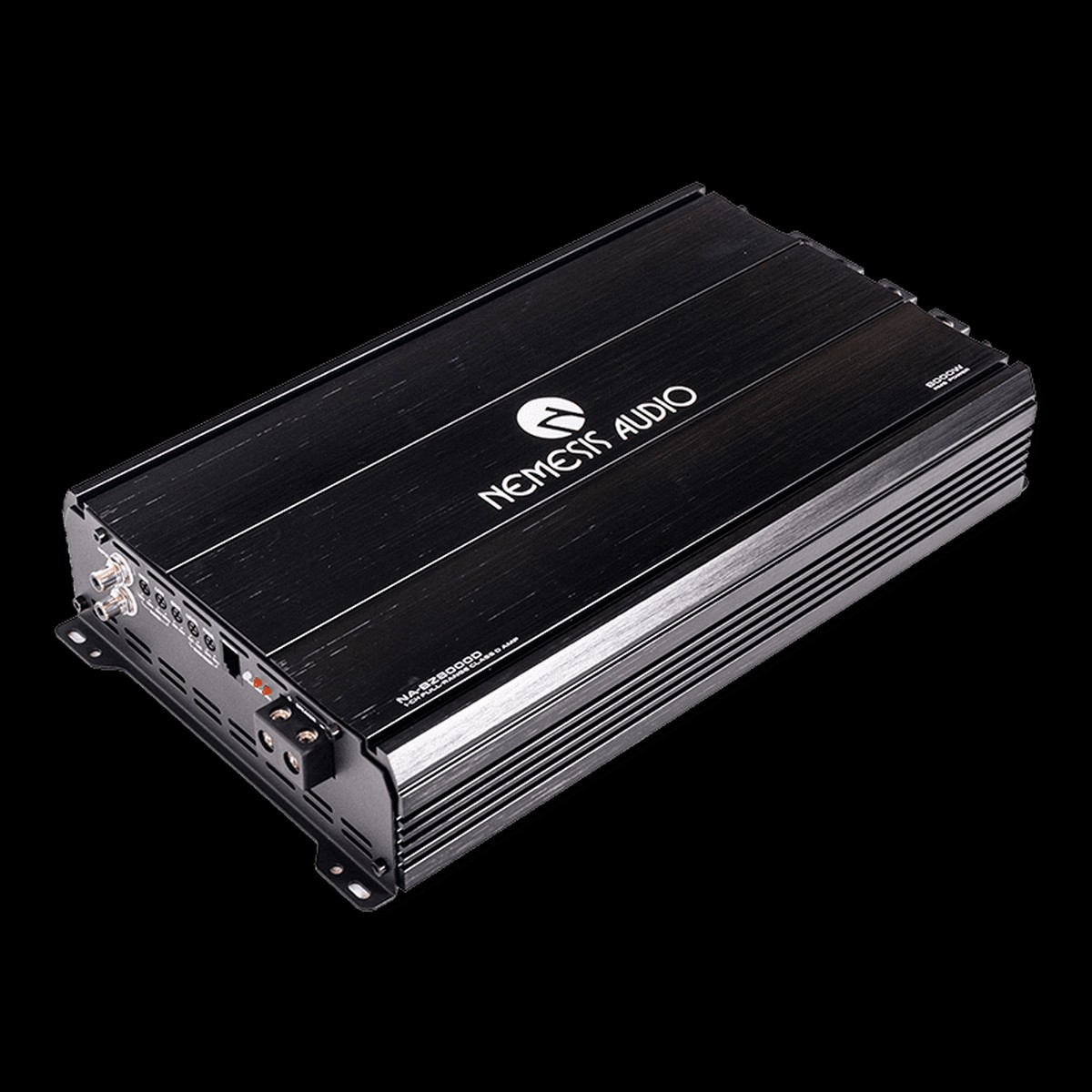

The Nemesis Audio NA-BZ8000D is a mono full range Class D amplifier built for serious high-power systems. It delivers up to 8000W RMS at 1 ohm with a full range design and onboard tuning controls.
Specifications
- Amplifier Type:Mono full range Class D
- RMS Power @ 4 Ohms:1 x 2500W
- RMS Power @ 2 Ohms:1 x 4800W
- RMS Power @ 1 Ohm:1 x 8000W
- Working Impedance:1 Ohm stable
- Input Sensitivity:0.25V to 4V
- Low Pass Filter:50Hz to 20kHz
- Subsonic Filter:10Hz to 80Hz
- Bass Boost:0dB to 12dB
- Frequency Response:10Hz to 20kHz
- Signal-to-Noise Ratio:85dB
- THD @ 4 Ohms:0.4%
- Operating Voltage:9V to 16V
- Fuse Rating:800A
- Dimensions:13.74 x 8.35 x 2.56 in
This model is intended for customers building high-output systems where maximum amplifier power is the priority.
