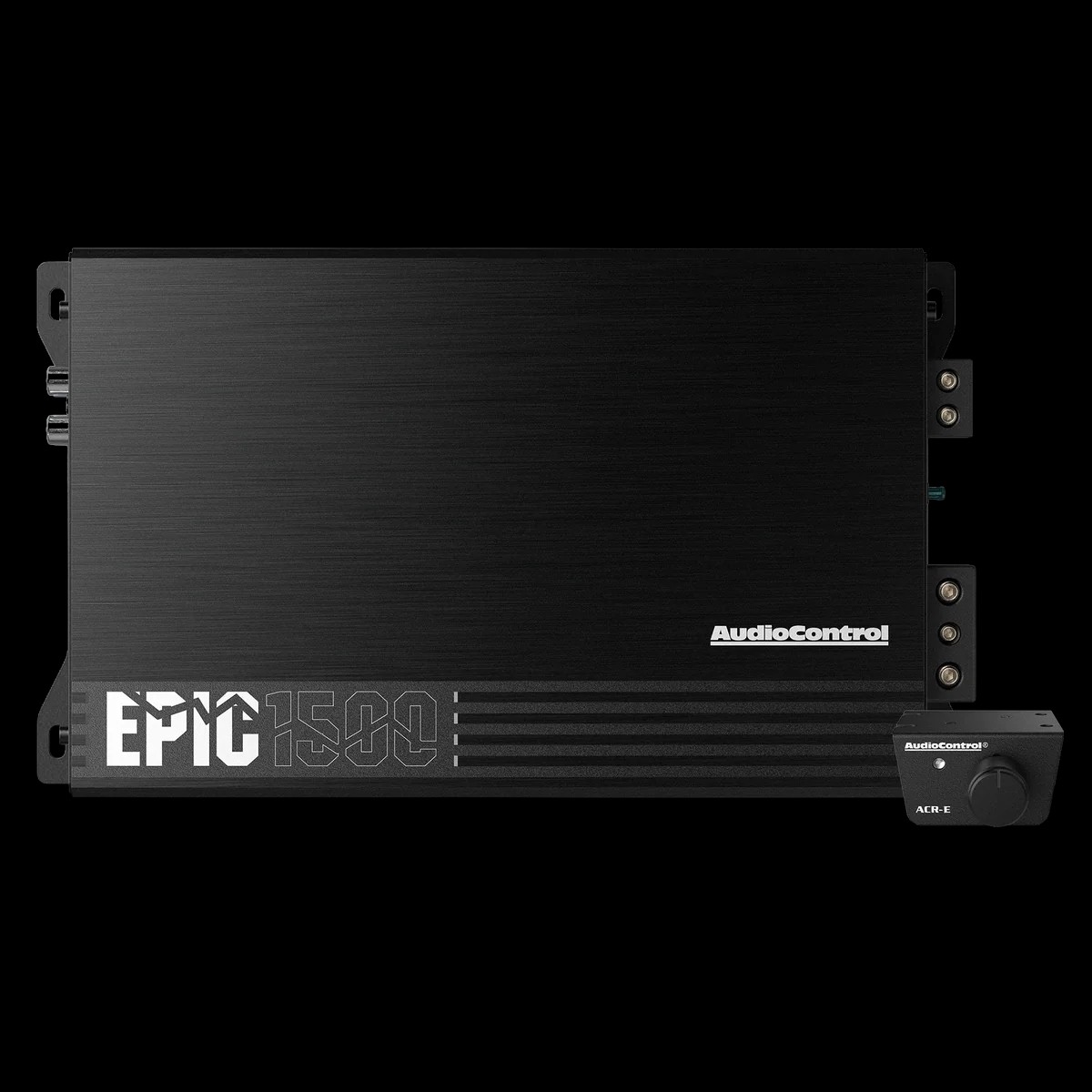

The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.

• Digital Class-D Amplifier: Powerful yet compact and stable down to a 1 ohm load.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

  • Output Over-Current Protection (OCP)

  • Input Over-Voltage Protection (OVP)

  • Input Under-Voltage Protection (UVP)

  • Output DC-Offset Protection (DCP)

  • Over-Temperature Protection (OTP)

• THE EPICENTER LINK:Simplify your install by connecting the EPIC amplifier directly to an EPICENTER bass restoration processor.

FEATURES

Compact High-Power Class D Monoblock Amplifier

High-Current Design 1 Stable

Smart Auto-Reset Protection Circuit

12 dB/octave Linkwitz-Riley Variable Low Pass Filter

12 dB/octave Variable Subsonic Filter

EPICBoost Variable Frequency Bass Boost

ACR-E Remote Level Control Included

Solid Power/Speaker Terminals with Hex Screws

Built for THE EPICENTER

SPECIFICATIONS

INPUTS

• Line-Level Inputs: 500mV 12V RMS

OUTPUTS

• Continuous Power (RMS) @ 14.4V

  • 1 x 600 Watts @ 4 ohms

  • 1 x 1000 Watts @ 2 ohms

  • 1 x 1500 Watts @ 1 ohm

  • 1 x 3000 Watts @ 2 ohms Bridged (Strapped)

Remote Level Control

• Included

WEIGHTS & DIMENSIONS

• DIMENSIONS:6.1 W x 10.59 L x 2.01 H

PERFORMANCE

• Frequency Response (+/- 1 dB): 10 Hz 190 Hz
• S/N Ratio: 92.8 dBa, Ref 600 Watts @ 4 ohms

• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 150 Amps
• Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
• Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
• EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
• Speaker Terminal Wire Gauge: 8 AWG
• Strapable: Yes
• Epicenter Link: Yes


IN THE BOX:EPIC1500, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness),Manual, Warranty
