Features

• 1 x 350 watts @ 4 Ohms
• 1 x 600 Watts @ 2 Ohms
• IPX6 Rated
• GTOTMSignal Sense
• Optional wired ACR-1 Remote Control for Output Level
• High and low input modes
• Linkwitz-Riley Crossover

Inputs

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV 6 Vrms
• Input Voltage Range High: 1 Vrms 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 350 W x 1
  • 2 600 W x 1

Performance

• Frequency Response: 26 Hz 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & Dimensions

• Dimensions: 8.89W x 5.31D x 2.36H
• Weight: 4.45 lbs. (2.02 kg)

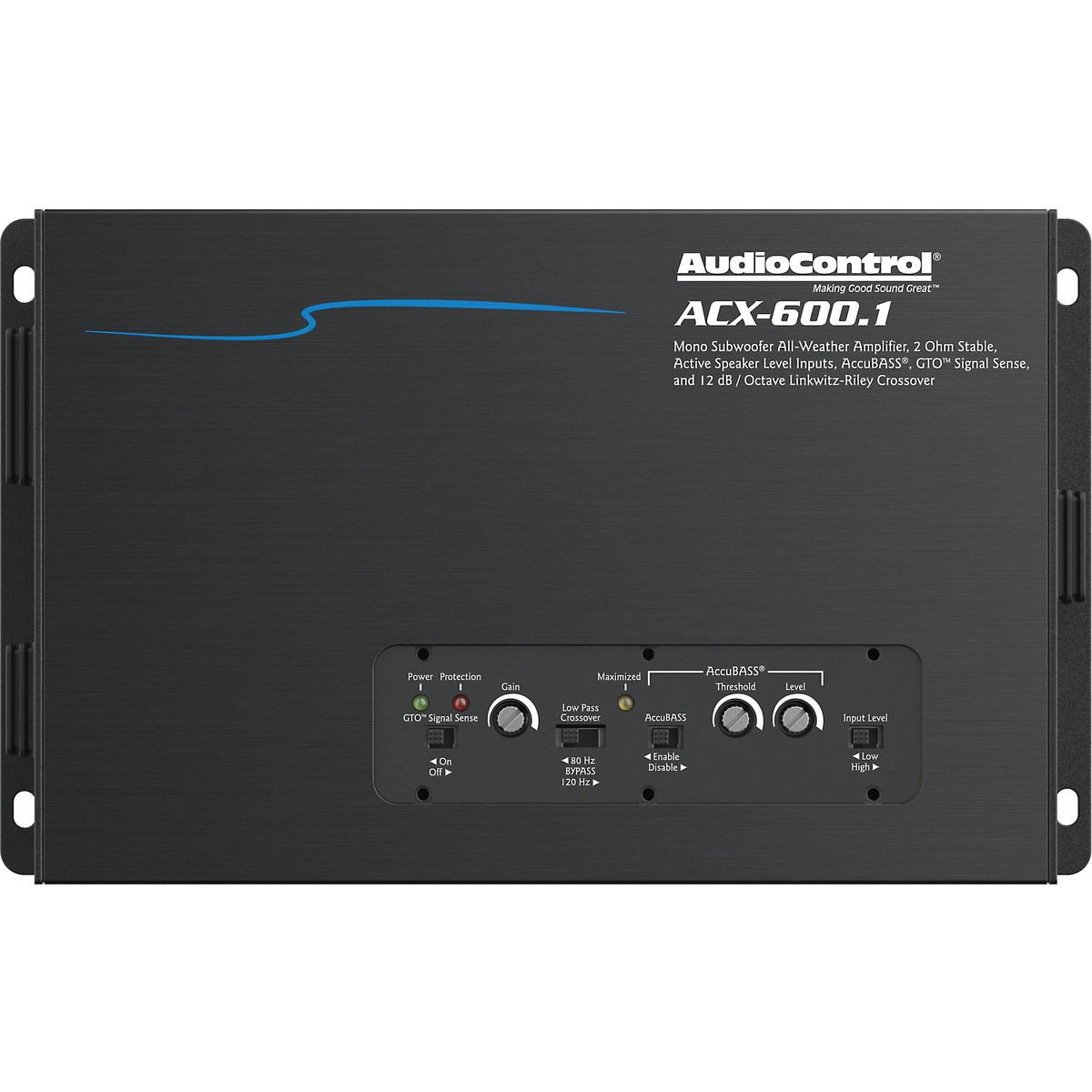

in the box:ACX-600.1, Manual, Warranty
