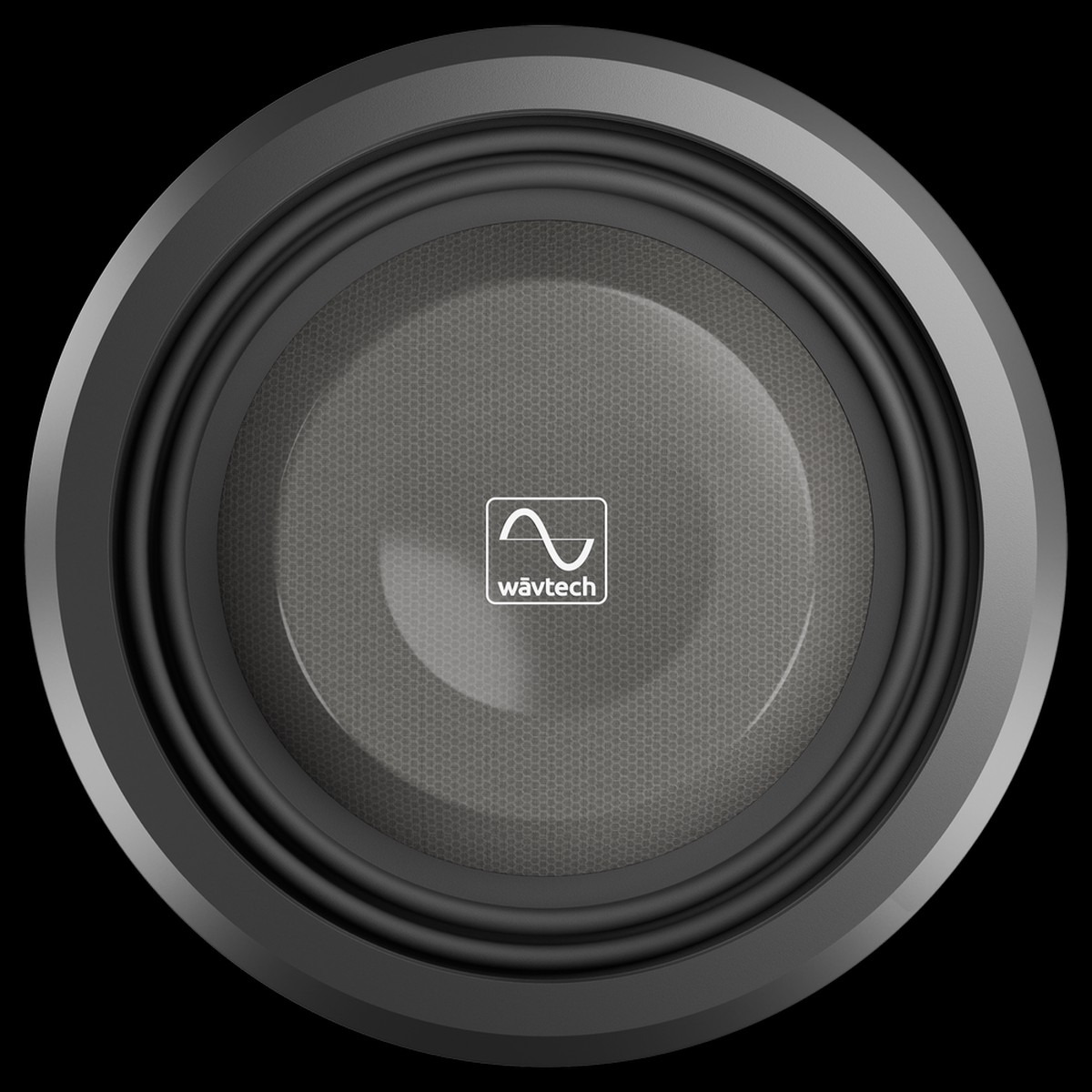

The thinPRO10 is the ultimate paradox. There really isnt anything else like it. Our Patent Pending design changes the game for what is possible with a shallow subwoofer. With a mounting depth of less than 3, if it wont fit in the desired location, you probably arent putting a subwoofer there. The dual mirrored NBR spiders and axial force transfer assembly allows for unparalleled performance in a multitude of applications.

The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex and glass fiber, making it incredibly rigid and very lightweight. The 4.5 voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.

The point of a shallow subwoofer is maximum performance in a small enclosure. The thinPRO10 is perfect in both small sealed and ported enclosures. Sealed box sizes range from 0.25-0.8cu ft, with the sweet spot at 0.35cu ft. Ported enclosures range from 0.4-1.0cu ft, with 0.6cu ft recommended for optimum performance.

thinPRO10 Features

• 750 Watts RMS Power Handling

• 2.9 Mounting Depth

• 4.5 Voice Coil

• 4-Layer Winding on Vented Polymide Composite Former

• Protective Grille

• Honeycomb Nomex and Glass Fiber Cone

• FEA Optimized Dual-Gap Motor Structure

• Double-Roll NBR Surround

• Mirrored Internal NBR Spiders

• 8AWG Push Terminals

• Vented Cast Aluminum Frame

• Dimensions: 9 1/8in (232mm) Standard 10 cutout
