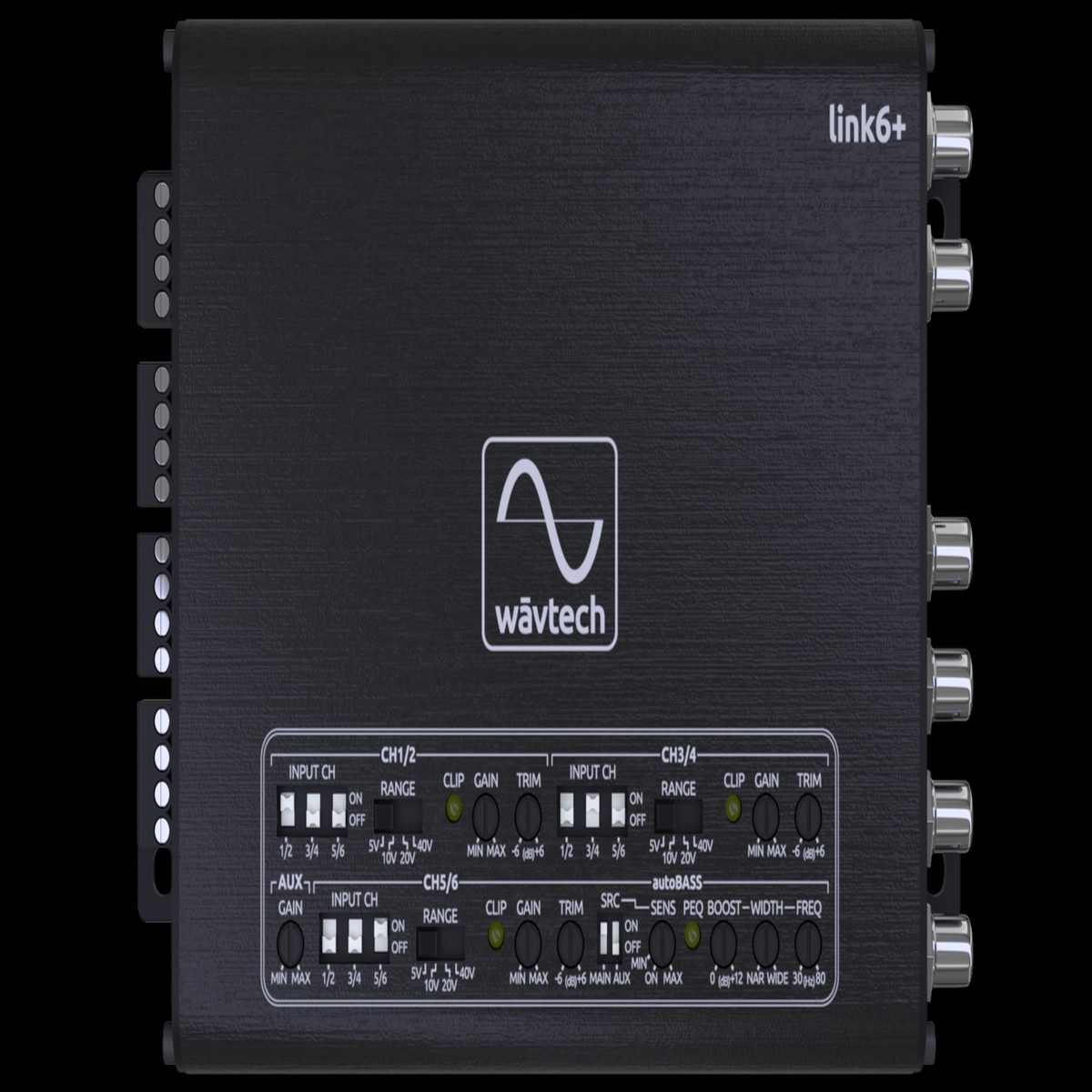

When upgrading your audio system in a typical front, rear and subwoofer set-up, the link6+ is the perfect tool for the job. Getting its input from your factory stereos front and rear speaker signal, it can provide front, rear and subwoofer outputs for your aftermarket amplifier or amplifiers.

Some factory audio systems require summing when adding aftermarket amplifiers, because no full range signal is present. The link6+ utilizes our industry leading matrix summing to address this. You can assign any input channel to any output for maximum flexibility. In addition, Wvtech has the only analog summing devices on the market allowing full range signal from all outputs.

Many factory systems have protection against blowing speakers. This is called bass roll-ff. While this is helpful for protecting those factory speakers, it is a real problem when you are adding higher quality aftermarket components. Wvtechs patent pending autoBASS circuit solves this probelm. The link6+ also has a PEQ for fine tuning your systems subwoofer.

For added flexibility, the link6+’s multi-function remote provides unique configurations, based on the specific application requirements of your system. It controls fader , subwoofer level, or as a master volume in more complex installations.

link6+ Features

• 6-Channel Line Output Converter

• 6-Channel Matrix Summing Processor (6-in/6-Out)

• Bass Roll-off correction via autoBASS (patent pending)

• Parametric EQ (PEQ)

• Multi-Function Remote Level/Source Control

  • Master Volume Control

  • Fader Control

  • AUX Volume Control

  • Independent CH5/6 Level

  • Source/Function Select

• AUX 3.5mm Input

• 2/4/6ch Input Select (Direct, Copy or Sum)

• Start-Stop Vehicle Compatible

• Matrix Summing with +/-6dB Level Trim

• Never Zero Ch5/6 Output with Front & Rear Input

• Adaptive OEM Load Technology

• Differential Balanced Inputs

• Low Impedance Outputs

• Variable Gain Adjustments w/Clip LEDs

• Auto Turn-On via DC-Offset or Audio Signal Detect

• Generated +12V Remote Output

• Locking Detachable Power/Speaker Terminals

• Professional Grade Panel Mount RCAs

• Compact Aluminum Chassis w/Detachable Mounting Tabs

link6+ Specifications

• Output Voltage (Max)———- >10Vrms

• Output Impedance ————– <50

• Input Sensitivity

  • SPK —————————- 2-20Vrms, 4-40Vrms

  • AUX —————————- 0.5-5Vrms

• Max Input Voltage (SPK) ——- 40Vrms

• Frequency Response ———— <10Hz to 100kHz

• THD+N (SPK/AUX) —————- <0.05% /<0.05%

• S/N (SPK/AUX) ——————— >114dBA />113dBA

• Turn-On Trigger ——————- +12V, DC-offset & Audio Detect

• Generated +12V Output ——- >500mA

• Chassis Dimensions ————– 1.1×4.7×5.8 (29x120x148mm)
