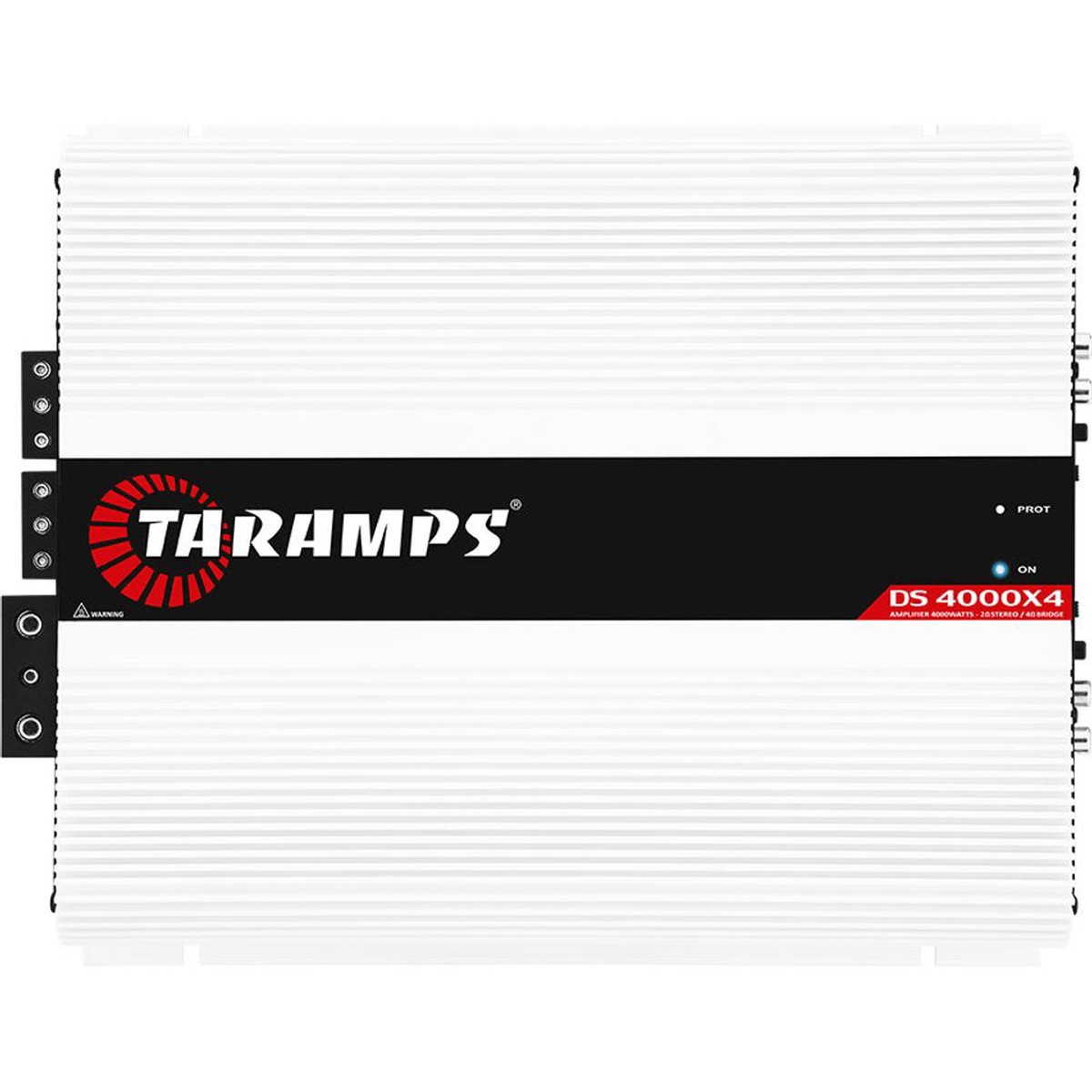

Name: Taramps DS4000X4 | 4000W RMS 4-Channel Amplifier 2-Ohm
SKU: WOF88155448941
Availability: InStock

~~$120.00~~ $60.00

Availability: In Stock

Vehicle Parts

TECHNICALINFORMATION

OPERATION CLASS	D
NUMBER OF CHANNELS	04
MAXIMUM POWER	@ 14,4 VDC – 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC – 4 Ohms: 2500W RMS (4 x 625W RMS) 2 Bridged Channels 4 OHMS: (2 x 2000WRMS)
INPUT SENSITIVITY	(Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE)
SIGNAL TO NOISE RATIO	>86dB
FREQUENCY RESPONSE	8Hz~20KHz (-3dB)
CROSSOVER HIGH PASS (HPF)	90Hz (-12dB/8) Fixed
CROSSOVER LOW PASS (LPF)	90Hz (-12dB/8) Fixed
PROTECTION SYSTEM	Output Short Circuit
MINIMUM SUPPLY VOLTAGE	9VDC
MAXIMUM SUPPLY VOLTAGE	17VDC
CONSUMPTION AT REST	2.8A
MAXIMUM MUSIC CONSUMPTION	160A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL	320A
DIMENSIONS (WXHXD)	10.55″ x 2.83″ x 13.11″ (268 x 72 x 333mm)
WEIGHT	11.15lb (5,06Kg)
EAN	7898556849197
