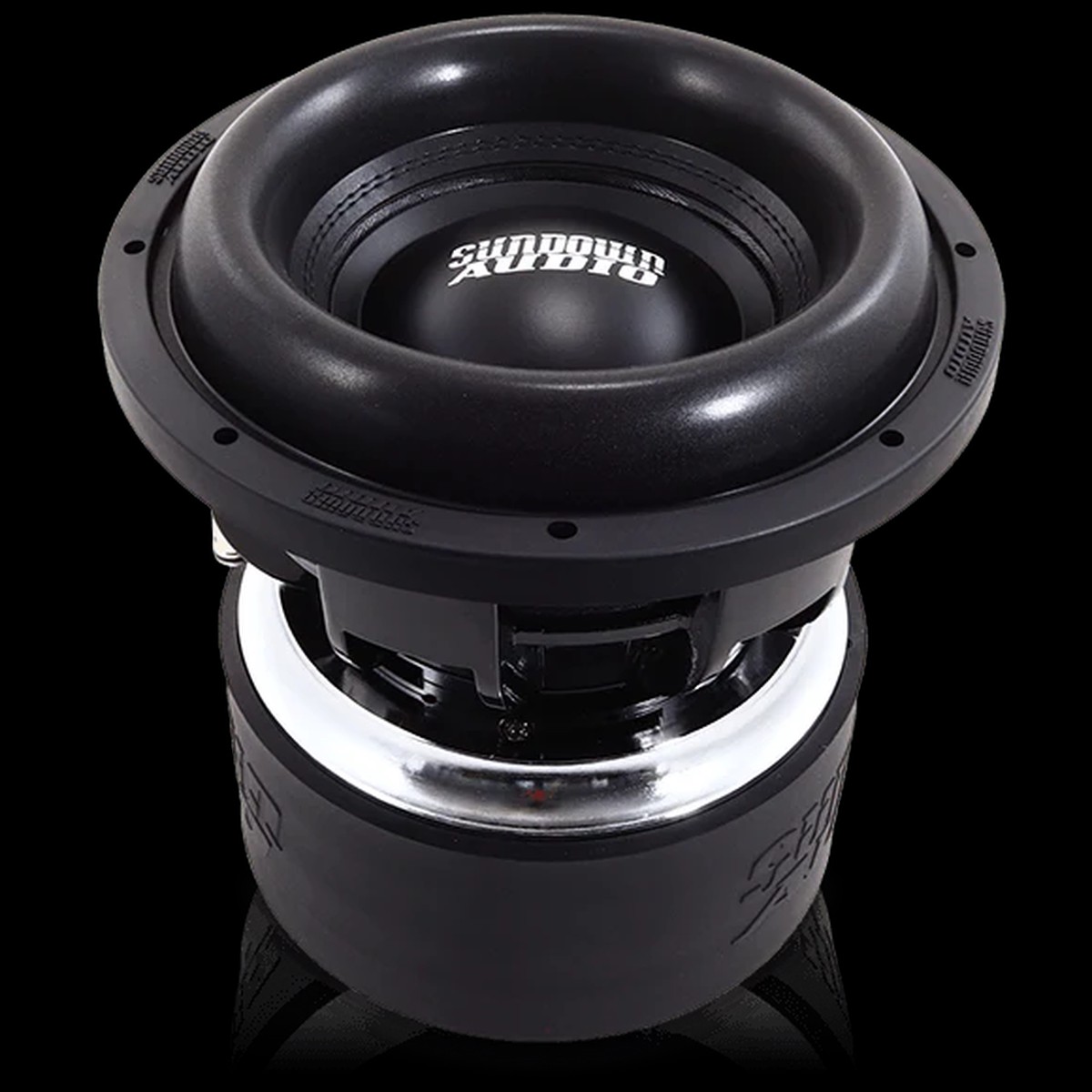

Sundown Audio ZV6 10″ 3250W RMS Subwoofer DVC

~~$809.99~~ $150.00

Availability: In Stock

SKU:

Categories :

Vehicle Parts

Description
Reviews (0)

Power Handling: 3250 Watts RMS / 6500 Watts Peak
Xmax = 35mm one-way by 70% BL
Heavily vented magnetic gap
Spring Loaded Terminals
Optimized high-velocity pole vent
Innovative high-velocity cast-aluminum vented frame spacer ring
Black aluminum 3 inch 8-layer voice coil
Mega-Roll v.2 surround
Custom tooled basket
Large aluminum Faraday (shorting) Ring
Stitched-On XL Tinsel Leads to prevent fatigue and failure
Custom-tooled ultra-linear spider packs

T/S SPECS	Z V.6 10D1	Z V.6 10 D2
RE (Ohms)	1.7	3.7
FS (Hz)	38.47	40.46
VAS (L)	8.1305	7.3693
Qes	0.4472	0.4523
Qms	5.7890	5.6379
Qts	0.4151	0.4187
Le (mH)	1.8883mH	4.3059mH
BL (NA)	19.1970	29.2091
Mms (Grams)	400.7235g	399.6832g
Cms (uM/N)	42.7032 uM/N	38.7056 uM/N
Sens (dB @ 1w/1m)	81.8985dB	82.0801dB
Xmax	35mm	35mm

Sealed Enclosure	Not Recommended
Ported Enclosure	1.5 cu.ft. net
Recommended Tuning	32Hz
Recommended Port Area	22 sq.in.
Displacement	.23 cu. ft.
Depth	10.96″
Outside Diameter	11.65″
Cut-Out	10.01″
Physical Dimensions	Download
