- Power Handling: 200 Watts RMS
- Impedance: 4 or 8-ohm SVC
- Vented cast frame
- 2.5-inch voice coil
- X-Max: 9mm
- Carbon fiber cone
- Excellent for Mid-bass
- High strength ferrite motor
- Dual shorting rings for smooth response
- Mounting depth : 4″
- Rear Vented
- Spring Loaded Terminals

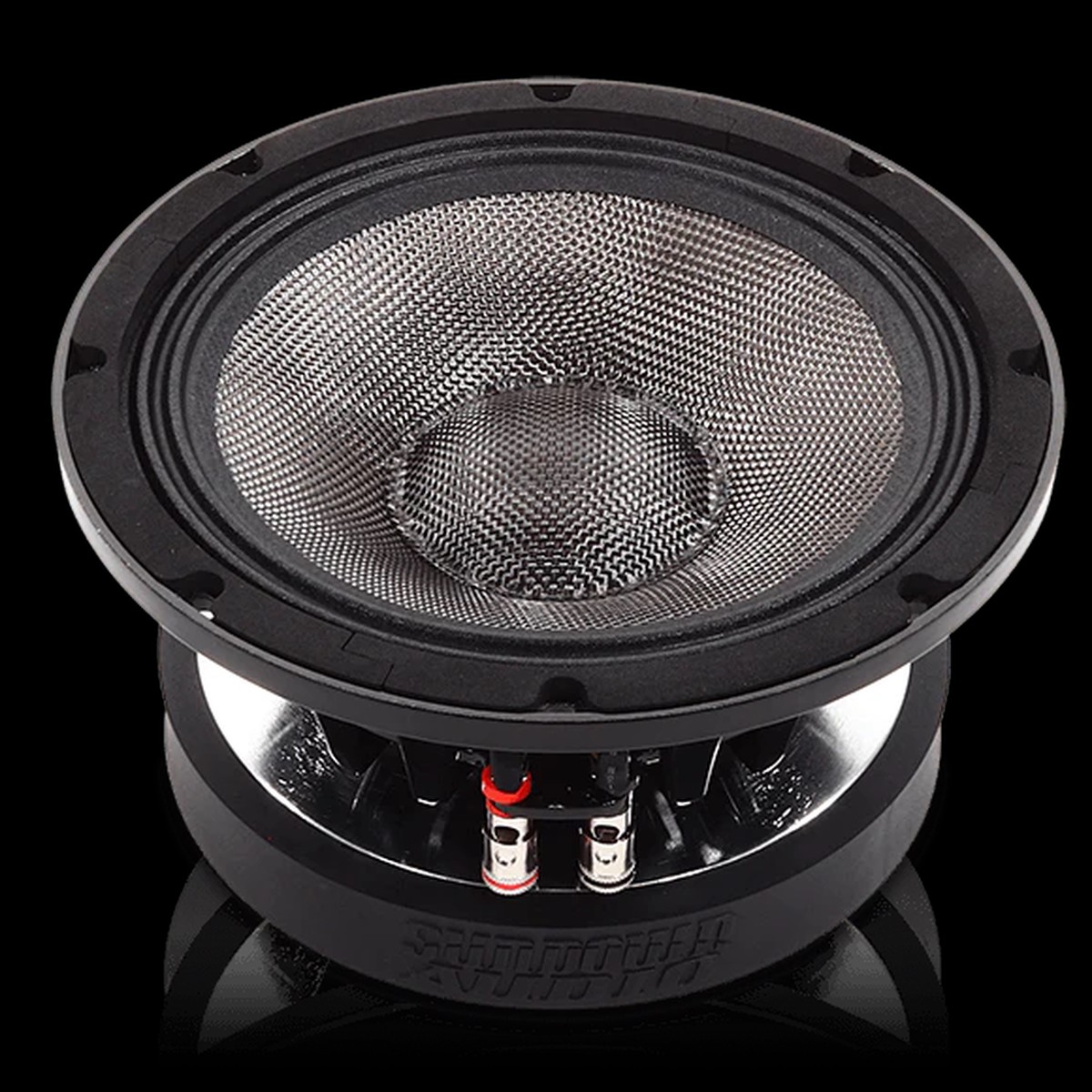

With an enormous 2.5 voice coil and a super-efficient cooling system, the VEX handles 200 watts of power with ease. We went with real carbon-fiber cone to handle high SPL systems without breakup, and achieved a 94dB sensitivity by combining a large diameter, high strength ferrite motor with a neodymium pole-cap magnet! A sturdy cast-aluminum frame features extensive spider cavity vents to further increase thermal power handling. The Sundown Audio VEX is one of the loudest, best sounding high-efficiency midrange drivers in existence.
Specifications
|
T/S SPECS
|
VEX-6 S4 OHM
|
|
RE (Ohms)
|
3.95
|
|
FS (Hz)
|
118.43
|
|
VAS (L)
|
3.02
|
|
Qes
|
0.3
|
|
Qms
|
3.6
|
|
Qts
|
0.28
|
|
Sens (1w/1m)
|
94 dB
|
