- RMS 600 watts
- Dual 2 or 4 ohm voice coils
- Black Aluminum 2.5 voice coil former for superior heat dissipation
- High temperature 4-layer copper voice coil wire
- Stitched-on Mini-XL tinsel Leads to prevent fatigue and failure
- Vented pole-piece and vented magnetic gap
- Dual-magnet design for smooth acoustic response
- Custom tooled cone shape for reduced mechanical noise over high excursion
- Bolt-through motor design to ensure maximum longevity and ruggedness

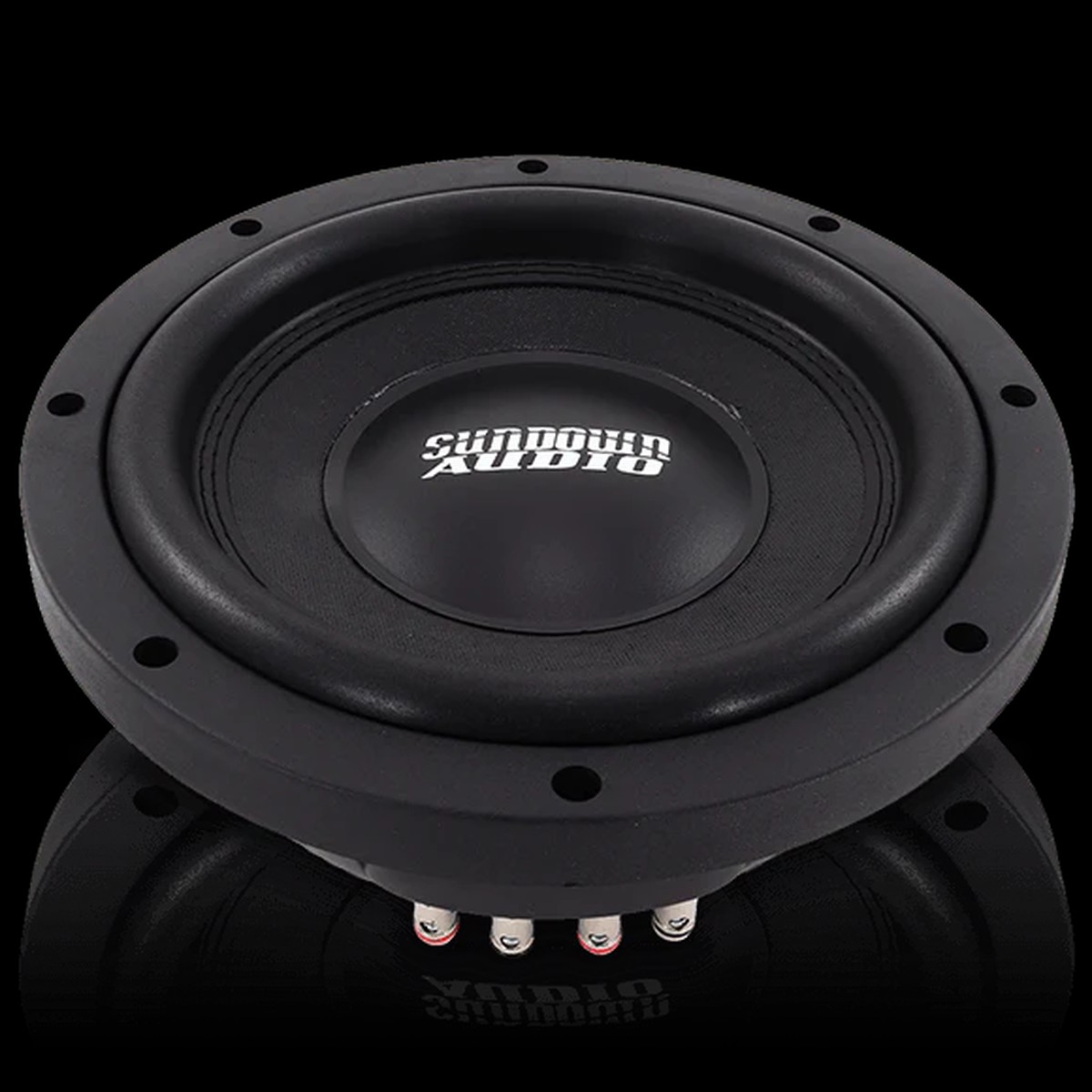

The SML series is a revolutionary line of subwoofers offered by Sundown Audio. An inch shallower than our SLD series, it delivers nearly the excursion, making it an ideal choice for customers seeking an extremely shallow driver with deep bass. Designed to fit under or behind your seat, the SML series performs exceptionally well in small enclosures.
Specifications
| T/S SPECS |
SML 10″ D2 |
SML 10″ D4 |
SML 12″ D2 |
SML 12″ D4 |
| RE (Ohms) |
3.650 |
6.850 |
3.650 |
6.850 |
| FS (Hz) |
35.210 |
36.116 |
34.932 |
39.905 |
| VAS (L) |
23.679 |
24.828 |
39.012 |
29.593 |
| Qes |
0.931 |
0.469 |
0.456 |
0.617 |
| Qms |
2.703 |
2.766 |
2.862 |
3.035 |
| Qts |
0.341 |
0.401 |
0.394 |
0.513 |
| BL (NA) |
17.431 |
21.022 |
17.879 |
22.801 |
| Mms (Grams) |
146.986 |
133.242 |
182.067 |
186.887 |
| Cms (uM/N) |
139.003 |
145.749 |
114.018 |
85.771 |
| Sens (dB @ 1w/1m) |
86.1dB |
85.8dB |
87.5dB |
86.7dB |
| Xmax |
11mm |
11mm |
11mm |
11mm |
Enclosure Specifications
|
SML 10″ |
SML 12″ |
| Sealed Enclosure |
0.5-0.75 ft^3 |
0.75-1.0 ft^3 |
| Ported Enclosure |
1.0-1.25 ft^3 |
1.25-1.75 ft^3 |
| Recommended Tuning |
35hz |
35hz |
| Recommended Port Area |
15 sq in |
15 sq in |
| Mounting Depth |
3.78 |
4.45 |
| Physical Dimensions |
Download |
Download |
