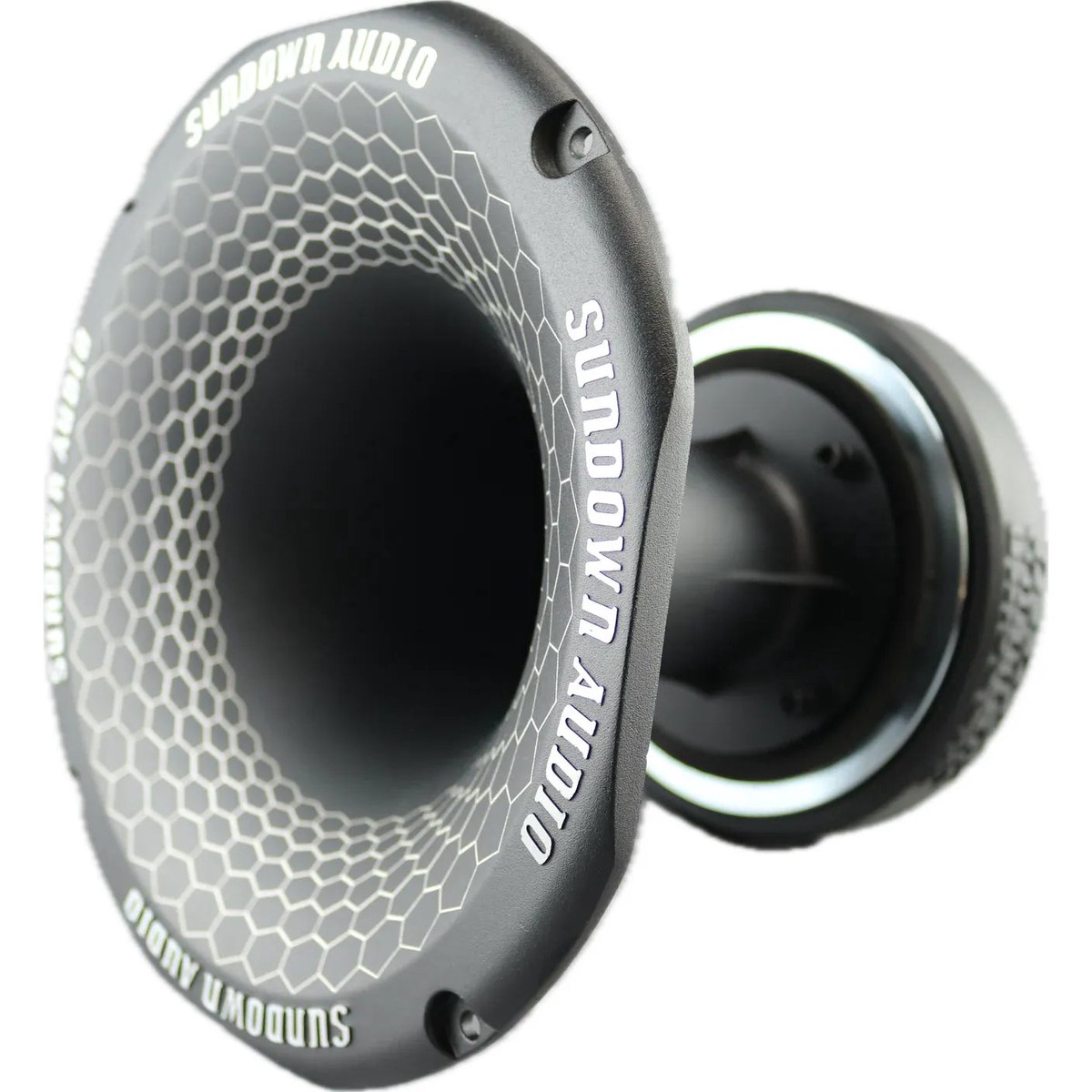

• 3in Horn driver
• Strontium Ferrite Magnet
• Die-cast Aluminium Cover
• Die-cast Aluminium Horn
• Titanium Diaphragm
• 4 Ohm
• 110 Wrms
• Exit Throat Diameter @ inch 2
• Rated Impedance @Ohm 4
• Power Handling Capacity @ Watt 110
• Program Power @Watt 220
• Sensitivity(1W/1m) @ Hz 118
• Frequency Range @ Hz – 600-20,000
• Voice Coil Diameter @ inch – 3
• Voice Coil Material – CCAW
• Voice Coil Former Material – Kapton
• Voice Coil Winding Depth @ mm – 3
• Cutout 6.75
• Mounting Depth 9.65
• Gap Height @ mm 3.5
• Driver Size @ in 6.7*3
• Back Cover Material Die-cast Aluminium
• Diaphragm Material – Titanium
• Horn Material Die-cast Aluminium
• Product Dimension @ in L9.5*W9.5*H10

Key Features:

• Powerful Performance: Rated at 110W RMS and 220W program power, it handles demanding audio requirements with ease.
• Wide Frequency Range: Covers 600Hz to 20,000Hz, providing crisp, detailed sound reproduction across mid-to-high frequencies.
• Exceptional Sensitivity: Sensitivity of 118 dB (1W/1m @ Hz) ensures efficient sound output with reduced power consumption.

Robust Construction:

• Durable Materials: Titanium diaphragm for precision and long-lasting performance.
• Voice Coil Design: Equipped with a 3-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former for excellent thermal resistance and durability.
• High-Quality Build: Die-cast aluminum cover and horn provide lightweight durability and efficient sound dispersion.
• Magnet: Strontium ferrite magnet ensures strong magnetic flux for reliable operation.

Specifications:

• Exit Throat Diameter: 2 inches
• Impedance: 4 Ohms
• Cutout Size: 6.75 inches
• Mounting Depth: 9.65 inches
• Driver Size: 6.7 x 3 inches
• Product Dimensions: 9.5 x 9.5 x 10 inches (L x W x H)

Additional Details:

• Voice Coil Winding Depth: 3 mm
• Gap Height: 3.5 mm
• Materials: Titanium diaphragm, Kapton former, and die-cast aluminum construction for maximum durability and performance.
