- 1,000 x 4 @ 1 ohm RMS
- 590 x 4 @ 2 ohms RMS
- 350 x 4 @ 4 ohms RMS
- 4-channel full-range amplifier
- Variable 12dB low pass filter: 50Hz 6kHz
- Variable 12dB high pass filter: 15Hz 6kHz
- Variable 12dB Bass Boost @ 50Hz
- Power, protection & clipping indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control with clipping indicator

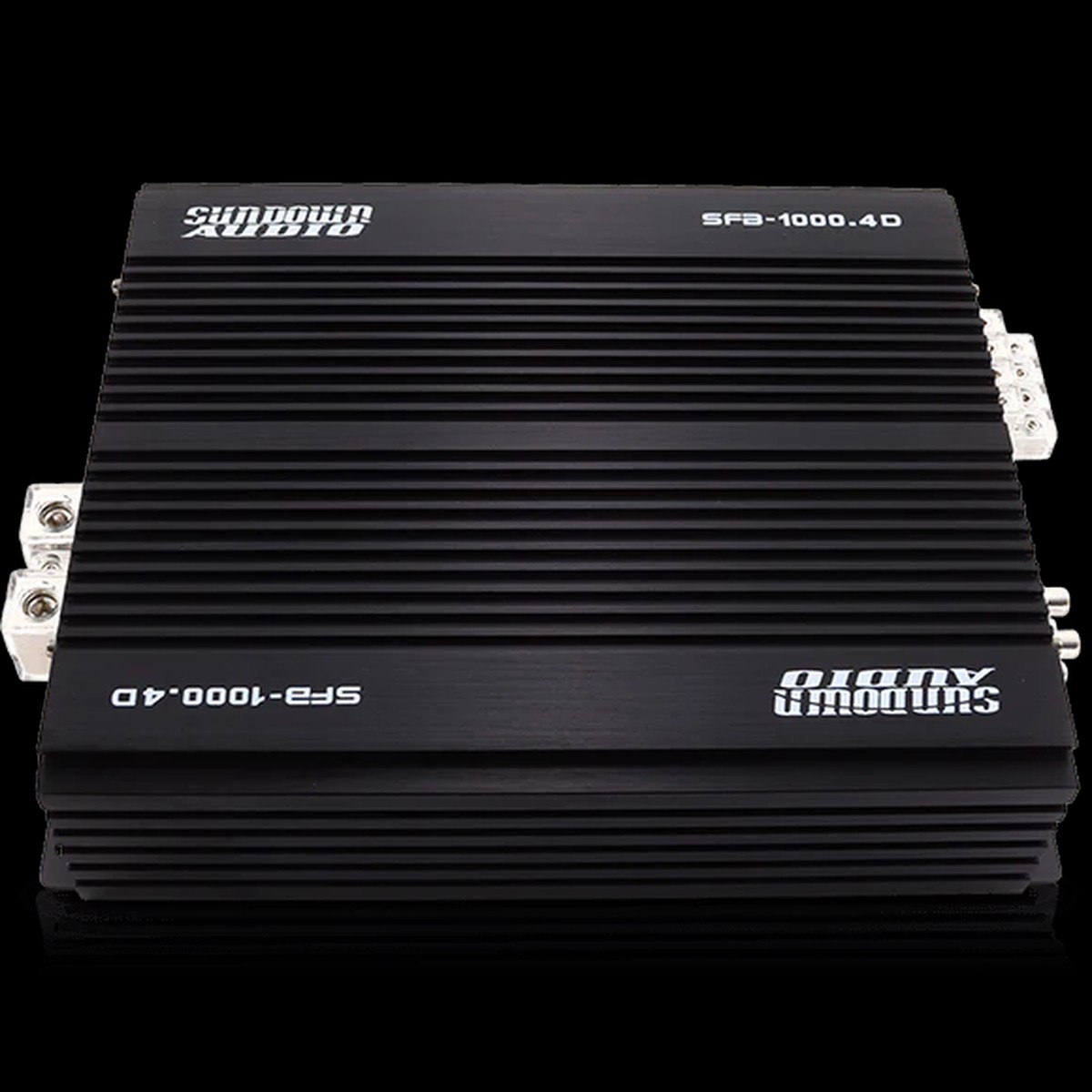

Introducing the Sundown Full Bridge line of amplifiers! The Brazilian Style SFB packs a powerful punch in a compact size, stable down to 1 ohm per channel. Use the SFB to wire several speakers together on every channel – an ideal amp for a PA mid/high speaker array, a large marine system, or your favorite set of separates. If you are looking for raw power on a budget look no further!
Product Manual
Specifications
- Frequency Response: 10HZ-20KHZ(-3dB)
- Input Impedance: 56k ohms
- Input Sensitivity 5V Max
- S/N Ratio 100dB
- Minimum Supply Voltage: 9VDC
- Maximum Supply Voltage: 16VDC
- Working Voltage 10.5v-15.5v
- Recommended Fuse Rating 350A
- Dimensions 8.86 x 10.43 x 2.70
