- 300 x 3 @ 4 ohms RMS Bridged
- 150 x 6 @ 2 ohms RMS
- 100 x 6 @ 4 ohms RMS
- Variable 12dB high-pass filter: 15Hz – 500Hz or 300Hz – 10kHz (Ch. 1-2)
- Variable 12dB high-pass filter: 15Hz – 500Hz (Ch. 3-4)
- Variable 12dB low-pass filter: 15Hz – 500Hz or 300Hz – 10kHz (Ch. 1-2)
- Variable 12dB low-pass filter: 30Hz – 500Hz or 600Hz – 10kHz (Ch. 3-4)
- Variable 12dB low-pass filter: 30Hz – 500Hz (Ch. 5-6)
- x1/x20 crossover frequency multipliers
- DC auto-sensing turn on
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Water resistant
- Heavy cast aluminum heat sink
- Removable audio control cover
- Optional wired remote control

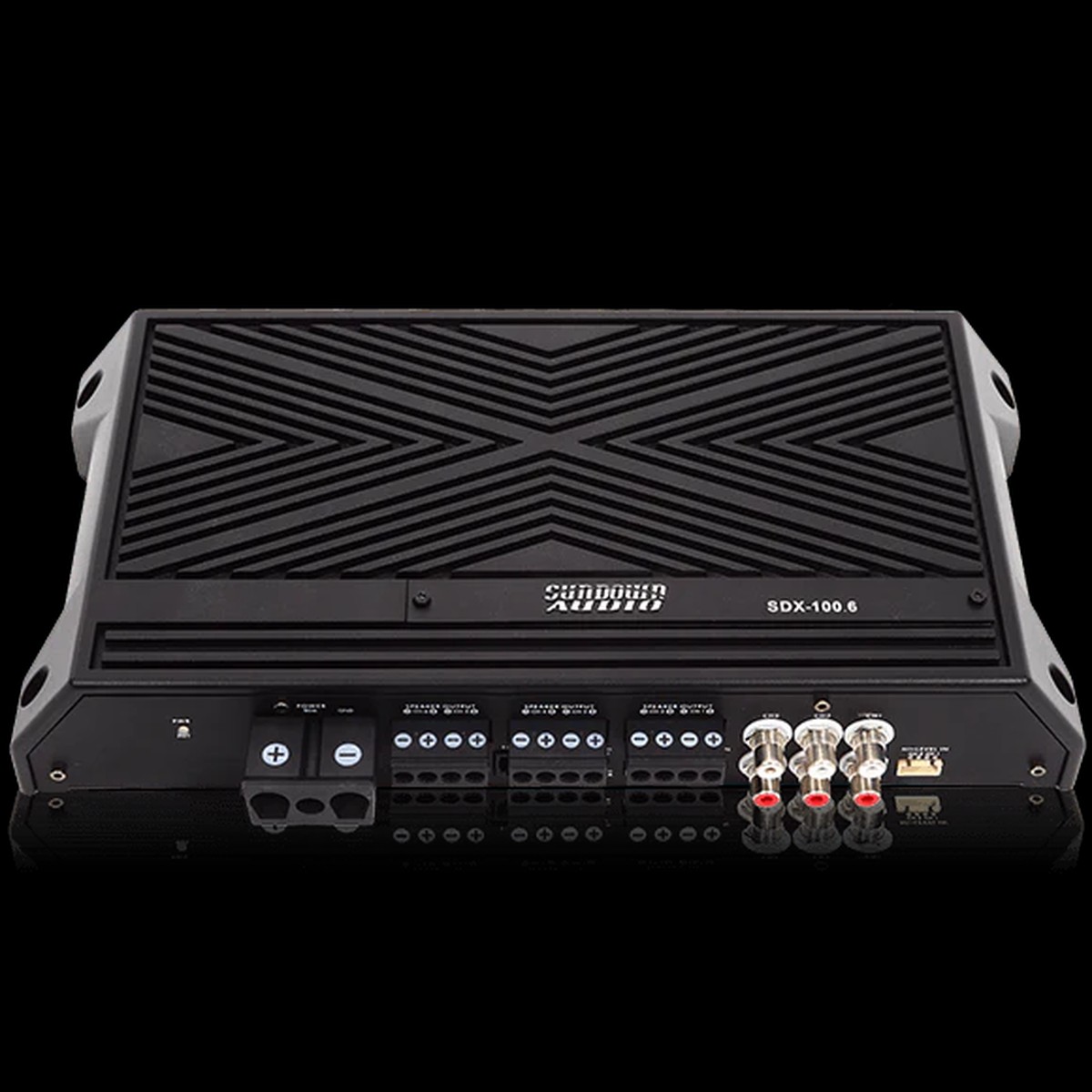

Get ready to experience the power and versatility with the water-resistant SDX amp! Perfect for your car, UTV, or any open-air vehicle, this compact yet mighty Class D amplifier delivers exceptional fidelity. Neatly protected beneath a sealed cover, a full suite of audio controls allow you the freedom to adjust your sound to perfection. A robust aluminum casing provides superior heat dissipation, and a shield from the elements. Whether its powersports or in your daily driver – with the SDX amp, you get great sound – for years of fun in any weather!
Product Manual
- S/N: >78dB
- Input sensitivity: 6V max
- Working voltage: 11.5 – 15V
- Recommended fusing: 80A
- Dimensions in Inch (L x W x H): 12.25″ x 7″ x 2.125″
Note:Unscrew the badge using an allen key to access audio settings.
