- 550 x 2 (Ch. 5&6 Only) @ 1 ohms RMS Stereo
- 200 x 2 (Ch. 1&2)+ 250 x 2 (Ch. 3&4)+ 350 x 2 @ 2 ohms (Ch. 5&6) RMS
- 100 x 2 (Ch. 1&2) + 150 x 2 (Ch. 3&4) + 200 x 2 @ 4 ohms (Ch. 5&6) RMS
- Full Range Digital 6 Channel Amplifier
- Frequency Response : 10 Hz 25khz
- Variable 12dB Subsonic Crossover Filter : 10Hz – 100Hz
- Variable 12dB High Pass Filter : 50Hz – 500Hz
- Variable 12dB Low Pass Filter : 50Hz – 500Hz
- X1, X10 Crossover Multiply
- Power, clipping & protection indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control displays voltage, temperature, and clipping

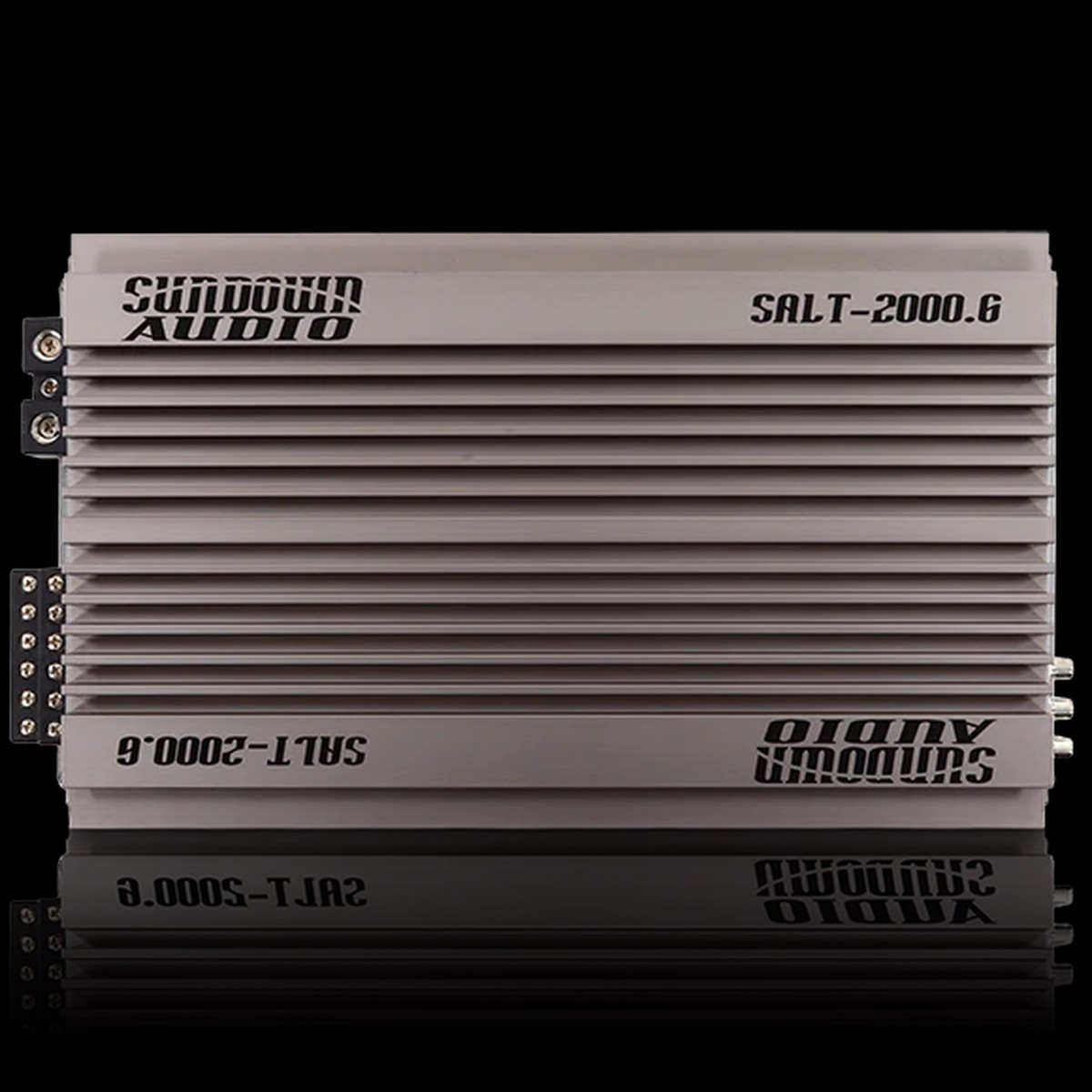

Producing optimum power at realistic voltages (the 12s, rather than needing 14+ volts), the SALT Sundown Audio Low-Voltage Technology is Sundowns answer! SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. Whether you are a world-class SPL competitor or a hardcore sound quality fan, the SALT series will be right at home in your system.
Product Manual
Specifications
- Input Sensitivity : 6V – 0.2V
- Double Sided Through Hole Epoxy PCB
- Efficiency : 75% 4OHM, at 100HZ
- Signal / Noise Ratio : 105DB <
- Damping Factor : 400 <
- Tested Voltage & THD : 12.8V & Less Than 1% THD
- Operation Voltage : DC 9V – 15.5V Power Input
- Recommended Fuse : 170 Amps
- Dimensions : 14.17 L x 6.85 W x 2.66 H
