- 300 Watts RMS/ 600 Watts Peak
- Dual 2 or 4 ohm voice coils
- Large aluminum Faraday ring for smooth acoustic response
- High-temperature voice coil wire
- Spring-loaded terminals
- Integrated vent channels for enhanced cooling
- Perfect for under/behind seat sub enclosures

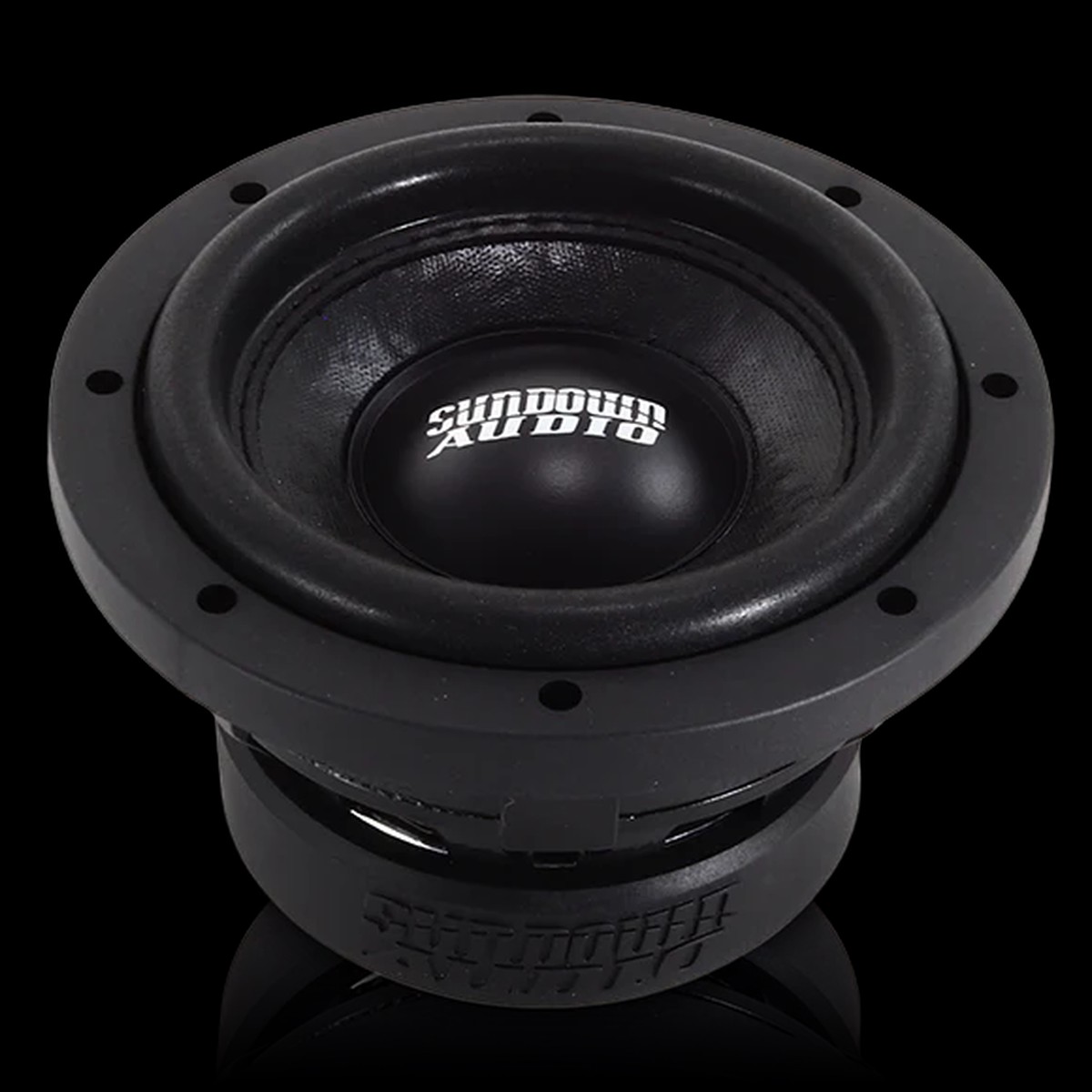

The SA-6.5SW was created to achieve extremely high performance with less than 4 of mounting depth. Sundown uses a solid-pole design, allowing the back plate to rest against the back wall of the enclosure to reduce the mounting depth requirements even more. Twenty millimeters of mechanical excursion means surprisingly deep bass out of this mighty 6.5 sub!
| RE (Ohms) |
4.0 |
7.1 |
| FS (Hz) |
48.9 |
51.8 |
| VAS (L) |
4.1 |
3.6 |
| Qes |
0.50 |
0.54 |
| Qms |
4.82 |
4.65 |
| Qts |
0.46 |
0.49 |
| Le (mH) |
1.69 |
2.45 |
| BL (NA) |
13.5 |
17.9 |
| Mms (Grams) |
74.8 |
75.6 |
| Cms (uM/N) |
.14 |
.12 |
| Sens (dB @ 1w/1m) |
81.6 |
81.5 |
| Xmax |
10mm |
10mm |
| T/S SPECS |
SA 6.5 D2 |
SA 6.5 D4 |
| Sealed Enclosure |
0.15 cu ft |
| Ported Enclosure |
0.3 cu ft |
| Recommended Tuning |
40Hz |
| Recommended Port Area |
4 sq in |
| Displacement |
|
| Depth |
3.79″ |
| Outside Diameter |
7.16 |
| Cut-Out |
5.93 |
| Physical Dimensions |
Download |
