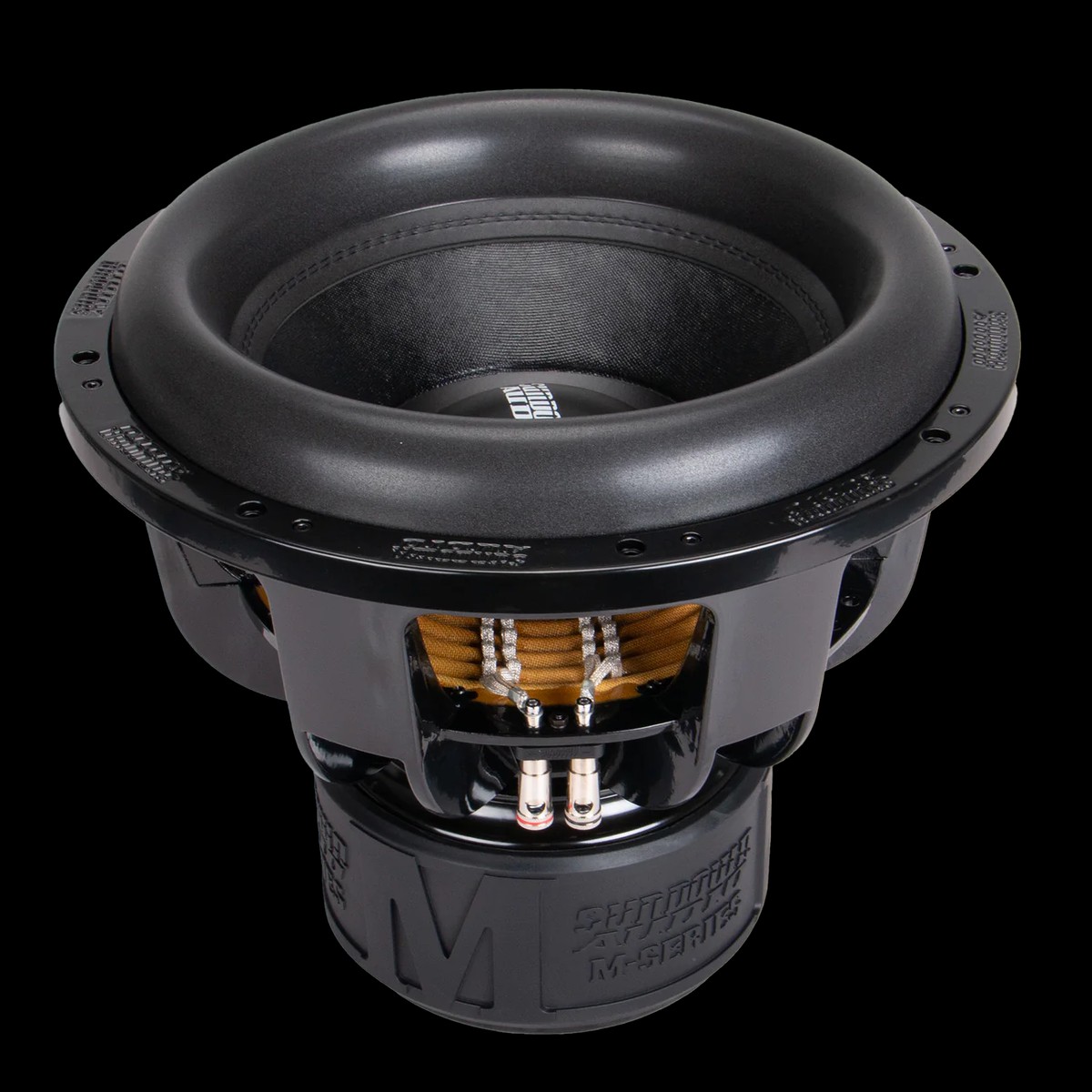

Sundown Audio M-Series M15 15″ 2000W RMS Subwoofer

~~$593.99~~ $146.00

Availability: In Stock

SKU:

Categories :

1501-2000 Watts

Description
Reviews (0)

4000w Peak / 2000w RMS
Available in Dual 1 and Dual 2 Ohm Configurations
Mega Roll Surround and Frame
Etched All Black Backplate
Quad Stack Magnet Structure

Specifications

T/S SPECS	M15D1	M15D2
RE (Ohms)	2.1	4.11
FS (Hz)	28.187	28.567
VAS (L)	43.142	43.385
Qes	0.72	0.705
Qms	5.232	5.233
Qts	0.633	0.622
Le (mH)	1.829	3.645
BL (NA)	17.006	23.7995
Mms (Grams)	558.9059	541.082
Cms (uM/N)	57.043	57.363
Sens (dB @ 1w/1m)	83.024	83.3097
Xmax	35mm	35mm

Enclosure Specifications

Sealed Enclosure	Not Recommended
Ported Enclosure	4.25 cu ft
Recommended Tuning	32Hz
Recommended Port Area	68 sq in
4th Order Sealed Side	2.0 cu ft
4th Order Ported Side	6.0 cu ft
4th Order Port Area	120 sq in
4th Order Port Length	8″
Displacement	0.23 cu ft
Depth	12.06
Outside Diameter	15.51
Cut-Out	13.93
