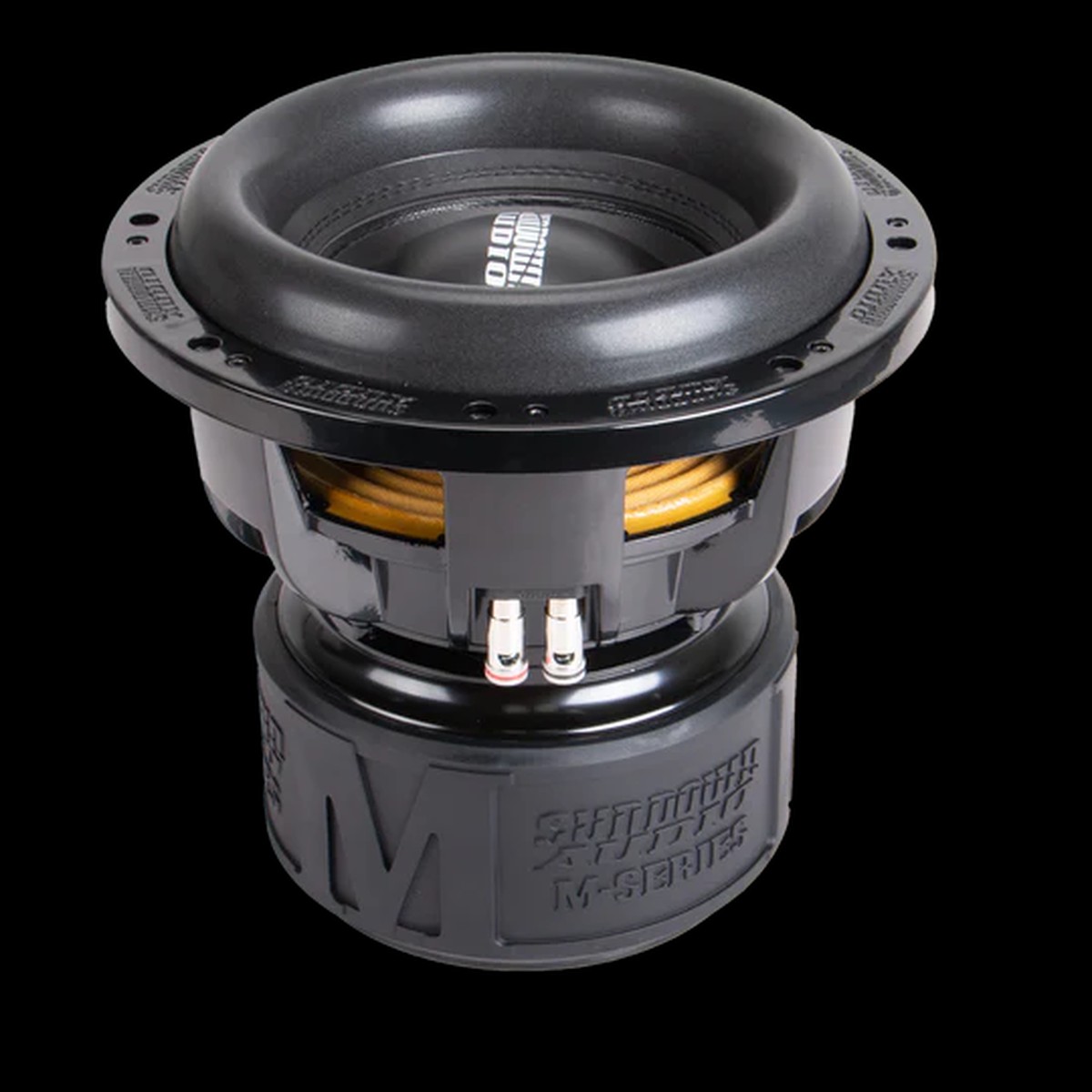

Sundown Audio M-Series M10 10″ 2000W RMS Subwoofer

~~$120.00~~ $60.00

Availability: In Stock

SKU:

Categories :

1501-2000 Watts

Description
Reviews (0)

4000w Peak / 2000w RMS
Available in Dual 1 and Dual 2 Ohm Configurations
Mega Roll Surround and Frame
Etched All Black Backplate
Quad Stack Magnet Structure

Specifications

T/S SPECS	M10D1	M10D2
RE (Ohms)	2.27	4.19
FS (Hz)	37.825	37.736
VAS (L)	7.669	7.793
Qes	0.789	0.761
Qms	4.931	4.847
Qts	0.68	0.658
Le (mH)	1.887	3.682
BL (NA)	17.339	23.82
Mms (Grams)	439.5005	434.5335
Cms (uM/N)	40.281	40.935
Sens (dB @ 1w/1m)	78.95	79.14
Xmax	35mm	35mm

Enclosure Specifications

Sealed Enclosure	Not Recommended
Ported Enclosure	1.5 cu ft
Recommended Tuning	32Hz
Recommended Port Area	24 sq in
4th Order Sealed Side	0.75 cu ft
4th Order Ported Side	2.25 cu ft
4th Order Port Area	45 sq in
4th Order Port Length	8″
Displacement	0.2 cu ft
Depth	10.09
Outside Diameter	11.65
Cut-Out	10.01
