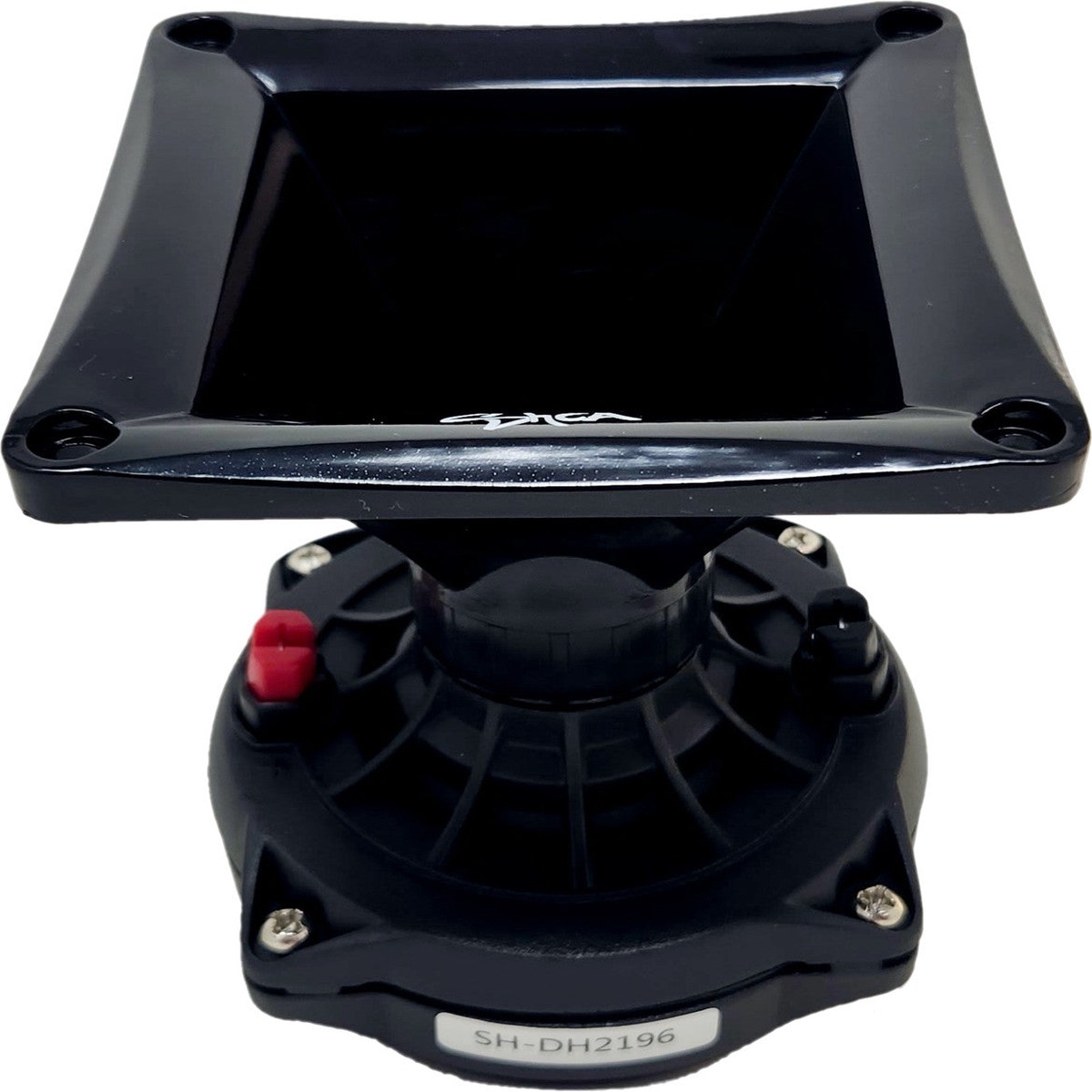

SH-DH2 2″ VC PHENOLIC DRIVER WITH HORN
| Specifications |
|
| Nominal Impedance |
8 Ohms |
| AES Power Handling |
150W |
| Program Power Handling |
300W |
| Peak Power Handling |
600W |
| Sensitivity (1w/1m) With Horn |
97dB |
| Frequency Response |
650Hz – 13KHz |
| Recommended Hi Pass Crossover |
800Hz |
| Motor |
|
| Voice Coil Diameter |
2″ / 51.2mm |
| Voice Coil Former Material |
KSV |
| Winding Material |
Pure Aluminum Round Wire |
| Diaphragm Material |
Phenolic |
| Magnet Material |
Ferrite |
| Magnet Weight |
10.8oz |
| Body Material |
Aluminum |
| Horn Specifications |
|
| Nominal Diameter |
4.5″ / 115mm |
| Throat Diameter |
1″ / 27mm |
| Sound Coverage |
45 x 45 (Square) |
| Body Material |
ABS/PC Injected |
| Color |
Black |
| Measurements |
|
| Overall Diameter |
4.5″ / 115mm |
| Overall Depth |
5.64″ / 143.5mm |
| Mounting Depth |
5.34″ / 135.7mm |
| Mounting Hole Diameter |
3.28 x 3.28″ / 83.3 x 83.3mm |
| Bolt Pattern (Horn) |
5.5″ / 141mm |
