Description

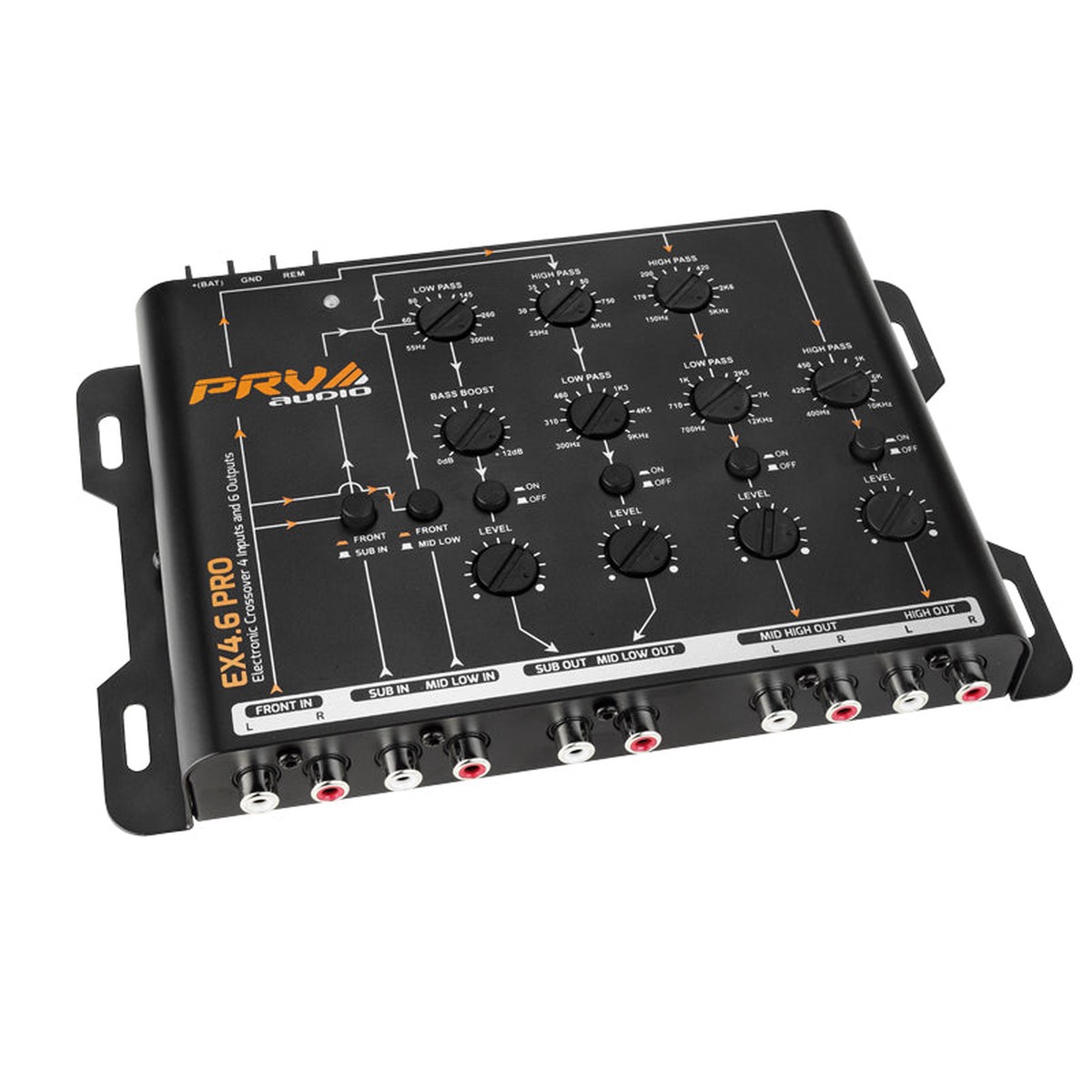

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable HIGH PASS and LOW PASS filters and also output level control on each channel, plus adjustable BASS-BOOST option on the Sub Out channel. Enhancing Your Audio System!
Highlights
- 2/3/4 RCA Input Signal Options
- 9 Volts RMS maximum output
- Bass Boost 0 to 12dB set at 45Hz
- Quick On/Off button for each channel
- Crossover slope rate: Butterworth 12 db/Octave
Input and output Functions:
2/3/4 RCA inputs for 3 Channels 1 Stereo and 2 Mono
6 RCA outputs for 4 Channels 2 Stereo and 2 Mono
GENERAL SPECIFICATIONS
| High Out Channel |
High Pass 400Hz 10KHz (12dB/8a) |
| Mid High Out Channel |
High Pass 150Hz 5KHz (12dB/8a) |
| Mid Low Out Channel |
High Pass 25Hz 3KHz (12dB/8a) |
| Sub Out Channel |
Low Pass 50Hz 250KHz (12dB/8a) Bass Boost 25Hz 110Hz (0 +12dB; 45Hz) |
| Maximum Output Voltage |
9V RMS |
| Maximum Input Voltage |
4V RMS |
| Signal to Noise |
>90dB |
| Input Impedance |
10K Ohms |
| Harmonic Distortion |
< 0.02% THD |
| Channel Separation |
> 80dB |
| Frequency Response |
20Hz-200KHz |
| Supply Voltage |
10V 16V DC |
| Current Consumption |
200mA |
| Impedance Output |
470 Ohms |
| Dimensions (H x W x L) |
1.30 x 9 x 6.30 |
| Weight |
1.45 Lbs |
