GENERAL SPECIFICATIONS
| Nominal and Throat Diameter |
Low Freq. 6×9″ (152×228 mm) |
High Freq. 1″ (25.4mm) |
| Nominal impedance |
4 Ohm |
| Nominal Power Handling* |
190 Watts |
| Continuous Program Power (RMS)** |
380 Watts |
| Max Peak Power*** |
760 Watts |
| Sensitivity 2.00V at 1m |
97 dB |
| Recommended Hi Pass Crossover For Full Power Handling |
110 Hz 12db Per Octave Crossover |
| Frequency Response |
90 – 20,000Hz |
| Voice Coil Diameter |
1.5″ (38 mm) |
1.0″(25mm) |
| Voice Coil Wire |
Copper |
CCAW |
| Voice Coil Winding Depth |
8.0 mm |
N/A |
| Former Material |
Kapton |
Kapton |
| Magnetic Gap Depth |
5.0 mm |
N/A |
| Frame and Diaphragm Material |
S. Steel |
Mylar |

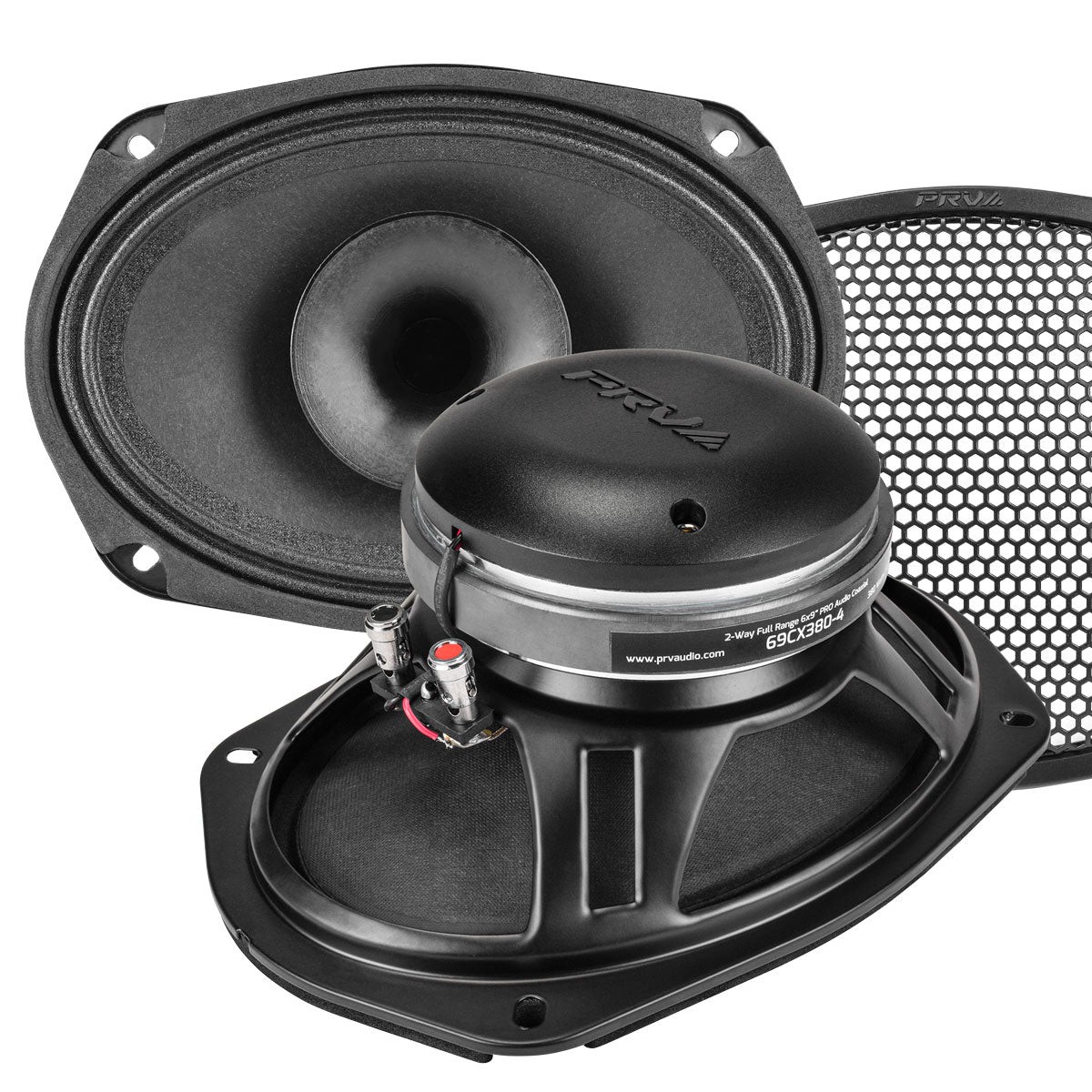

The best of the pro audio and car audio worlds are combined in this 69 speaker! The 69CX380-4 coaxial speaker has a built-in tweeter driver, an innovative design that delivers amazing sound clarity.
This 2-way coaxial is the perfect solution for sedans that just want to swap their 69 on the back deck for high-output sound without having to drill additional holes for tweeters or drivers.
- 2-Way Coaxial Transform your sound stereo with one speaker that will play low midbass frequencies and highs at the highest sound output.
- A built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response. Full Range Response
- 380 Watts RMS Music Power Handling, with 97 dB Sensitivity, capable of generating a lot of sound from one speaker!
- Grill and Mounting Screws Included
