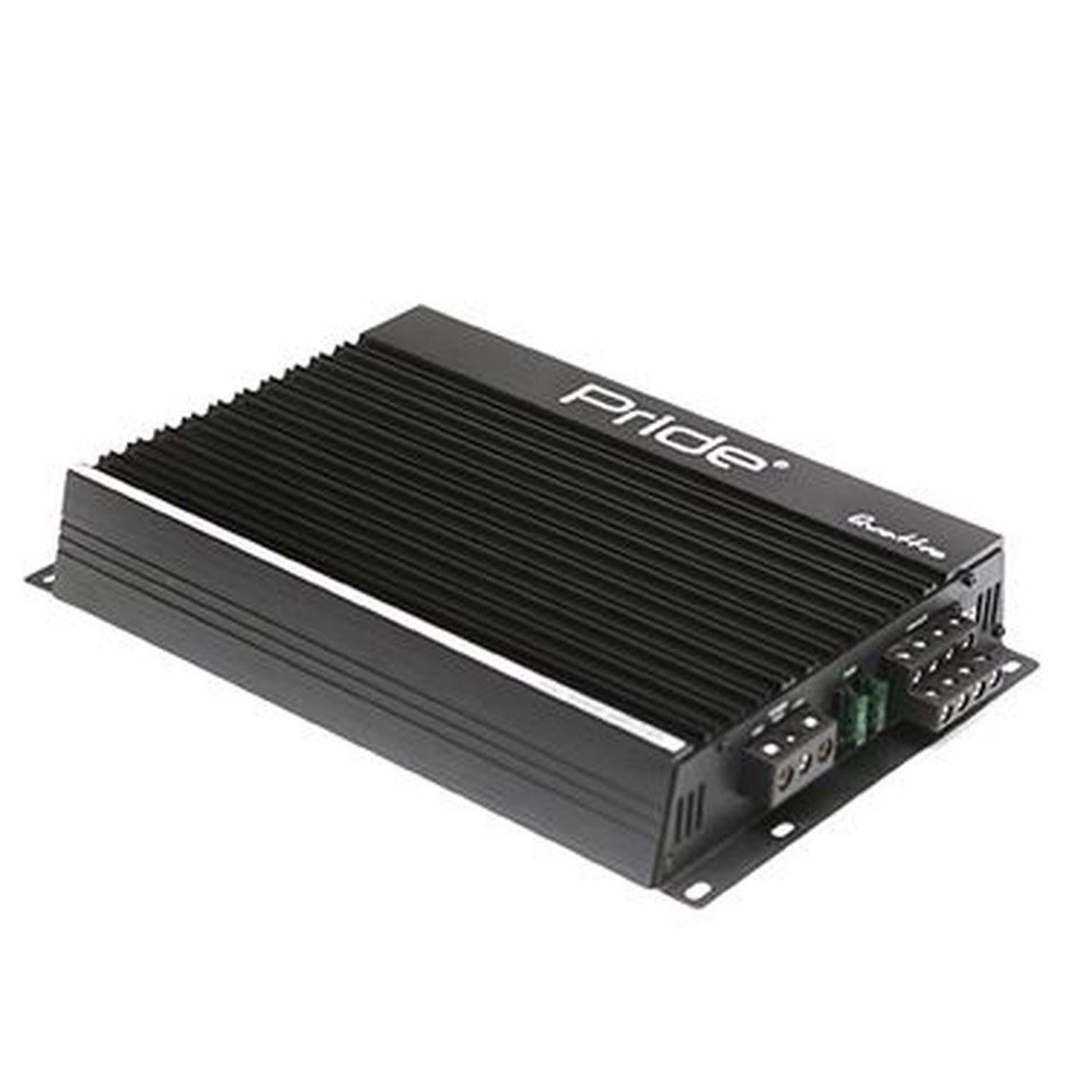

Amplifier Pride Quattro
Practical, reliable, easy to use, Pride Quattro car amplifier model combines this and much more. You cant do without an amplifier if you want to connect powerful speakers, a subwoofer, or run a 2 or 3-way system. Thanks to it, you can enjoy loud and high-quality music in your car.
Pride Quattro is a 4-channel AB class amplifier equipped with advanced frequency filters.
The Quattro model works stably at a load of 2 ohms per channel, or 4 ohms in the bridge on mode of the channels. The power of each of the four channels is 75 W for a load of 4 Ohms or 95 W for a load of 2 Ohms, at a voltage of 14.4 V and K.N.I. 1%.
Range of reproduced frequencies, Hz 15 30000
RMS rated power of 2 ohms, number of channels x W 100
RMS rated power of 4 ohms, number of channels x W 75
RMS rated power at 4 ohms, bridge, W 200
You can install a quality solution for Your car and connect 4 channel speakers or Twitters. It is possible to work in 2 Ohms.
Quality of Korea with completion of the Russian engineers.
Our products are available in the USA and you can buy the best car audio equipment right now!
| Technical feature |
| 2 Ohm Power |
100 W x 4 |
| 4 Ohm Power |
75 W x 4 |
| 4 Ohm Power Mono |
200 W x 2 |
| Frequency Response |
15 Hz 30 KHz |
| Signal to Noise |
100 dB |
| Efficiency @ 4ohm |
Over 65% |
| Damping Factor |
> 200 |
| Input Sensitivity |
8V-0,3V |
| High Pass Filter |
20 Hz 8 KHz |
| Low Pass Filter |
50 Hz 8 KHz |
| Strap Connection |
No |
| Fuse Rating |
60 A (2 x 30) |
| Physical feature |
|
| Length |
290 mm/11,4 |
| Height |
53 mm/2 |
| Width |
220 mm/8,6 |
| Color |
Black |
Part number:Q.100
