High-Performance 8 Inch Subwoofer Built for Extreme Output

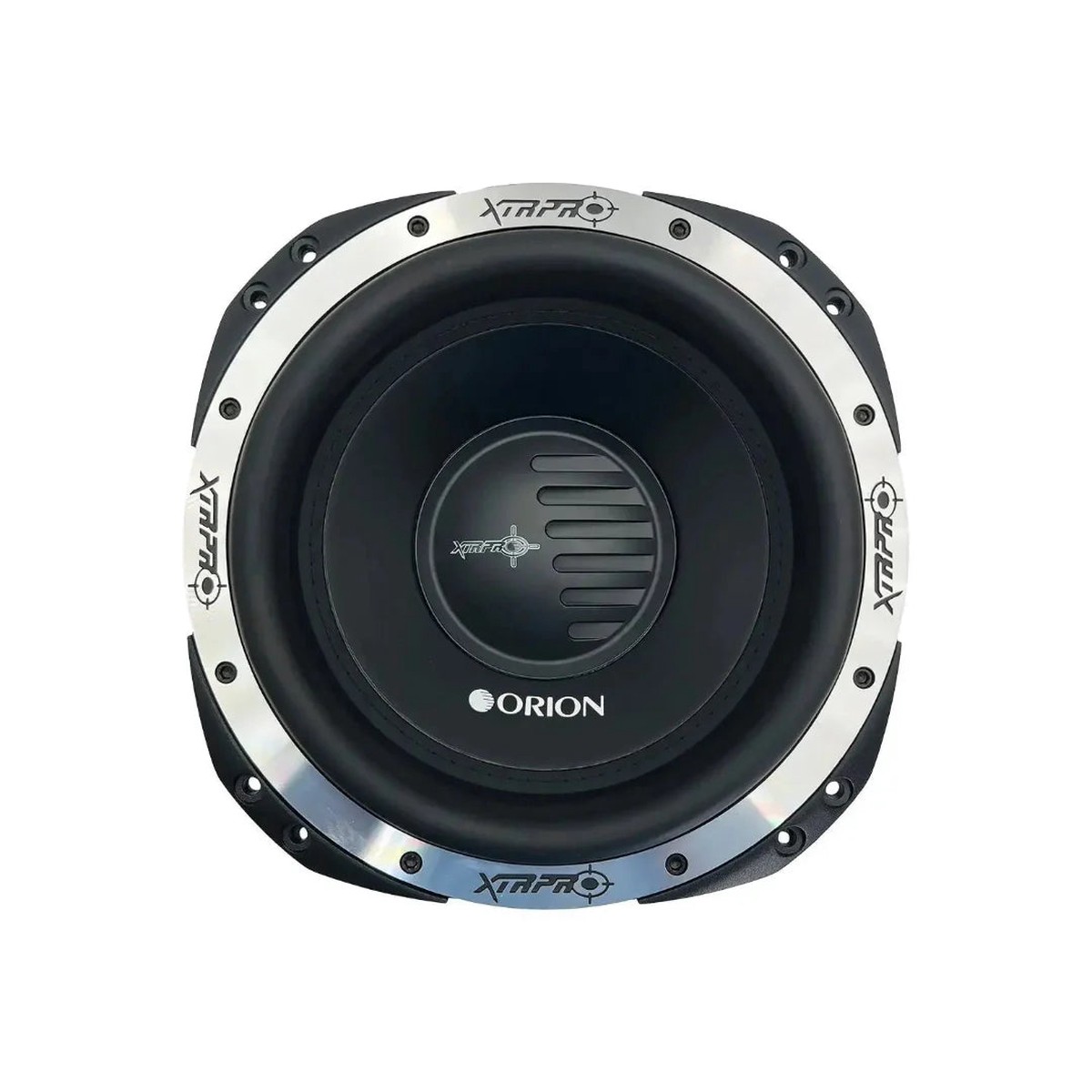

TheOrion XTRPRO802Dis built for serious bass performance. Specifically, it is designed as a8inch dual 4 ohm competition car subwoofer. As a result, it delivers powerful and controlled low-frequency output. With1000W RMS and 4000W peak power, it is made for high-output audio systems that demand strength and reliability.
Additionally, thedual 4-ohm voice coil designallows flexible wiring options. Because of this, it is easier to match amplifier loads in powerful systems. Therefore, the XTRPRO804D works well in competition builds, high-output daily drivers, and custom bass setups.
Built for Extreme Power Handling
To support high power levels, the XTRPRO804D uses aUV-coated reinforced paper cone. Moreover, it features adurable Santoprene surround. Together, these materials help control cone movement while keeping bass tight and accurate.
At its core, the subwoofer includes a2.5-inch aluminum-wound voice coil on a Kapton former. As a result, heat control is improved during heavy use. In addition,dual flat Conex spiders with loop-stitched tinsel leadshelp keep the cone stable during hard movement.
A125 oz ferrite magnet motor structureprovides strong control and efficiency. Therefore, bass remains deep and powerful at higher output levels. The subwoofer is also built on aproprietary cast aluminum frame, which adds strength and helps improve cooling.
Ideal For
- Competition-level bass systems
- High-output daily-driven builds
- Multi-subwoofer SPL setups
- Performance-focused custom audio installs
Key Features
- 8 inch dual 4 ohm competition subwoofer
- 1000W RMS / 4000W peak power handling
- 2.5 aluminum-wound voice coil on Kapton former
- Dual flat Conex spiders with loop-stitched tinsel leads
- UV-coated reinforced paper cone
- Santoprene surround for high-excursion control
- Polypropylene dustcap for added cone strength
- Proprietary cast aluminum basket
- 125 oz ferrite magnet motor structure
- Designed for high-output sealed and ported enclosures
- ProvenOrion Car AudioXTRPRO Series engineering
- Subwoofer Size: 8 (Inches)
- Voice Coil Configuration: Dual 4-ohm
- Power Handling (Peak): 4000 Watts
- Power Handling (RMS): 1000 Watts
- Sensitivity: 84.75 dB
- Frequency Response: 40 Hz – 150 Hz
- Voice Coil Diameter: 2.5 (Inches)
- Voice Coil Material: Aluminum Wound Voice Coil on a Kapton Former
- Spider: Dual Flat Conex Spiders with Loop Stitched Tinsel Leads
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Reinforced Paper
- Surround Material: Santoprene
- Basket Material: Proprietary Cast Aluminum Frame
- Magnet Information: 125 Oz Ferrite
- Speaker Displacement: 0.06 (cu. ft.)
- Mounting Depth: 176.8mm / 6.96 (Inches)
- Cutout Diameter: 202.9mm / 8.07 (Inches)
