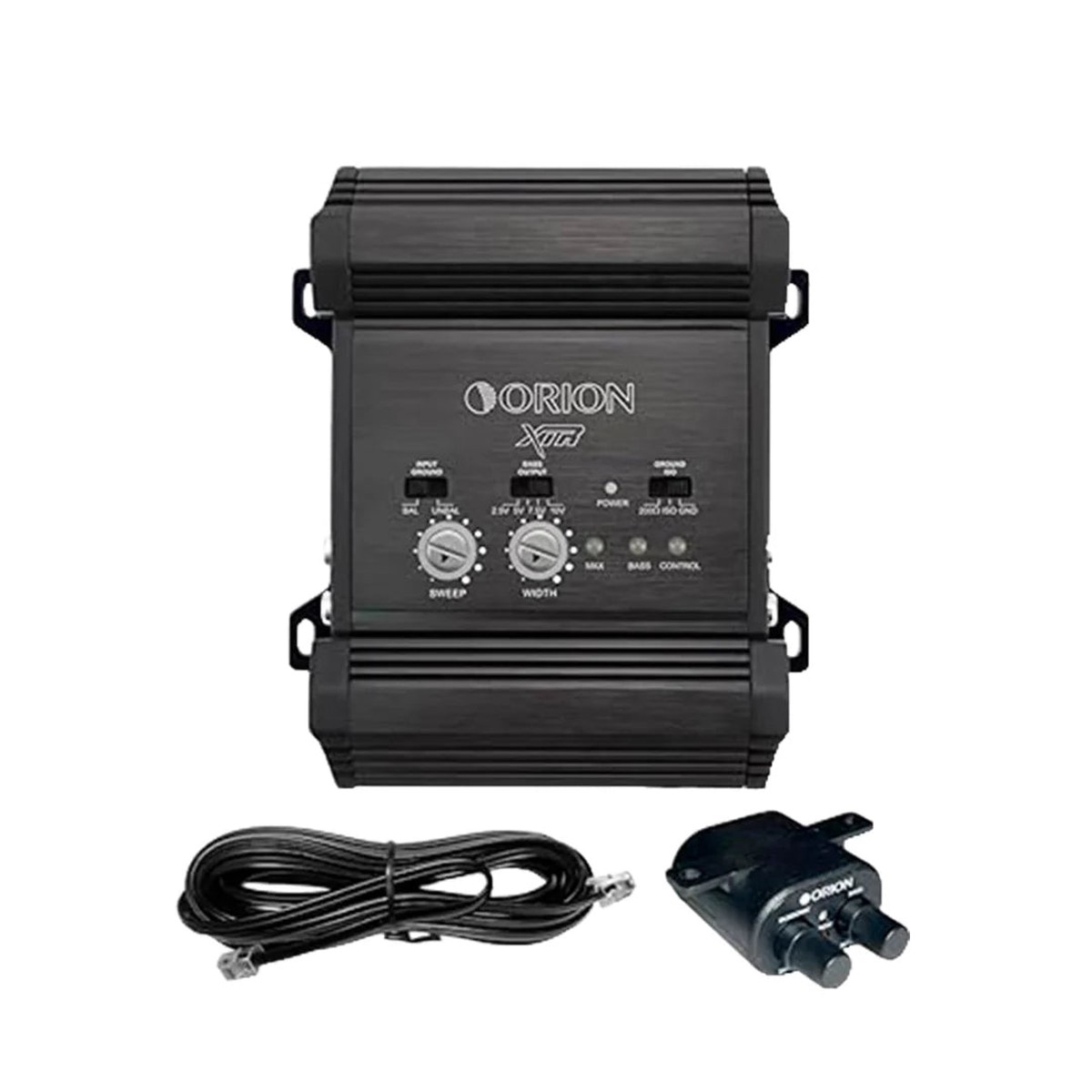

Orion XTR-BP25 Bass Processor with 10V Output & Precision Bass Restoration

~~$107.95~~ $53.98

Availability: In Stock

SKU:

Categories :

Vehicle Parts

Description
Reviews (0)

XTR Performance Bass Processor:Designed to enhance subwoofer performance by restoring and boosting low-frequency signals.
Bass Restoration Technology:Recovers bass frequencies lost in compressed music or factory audio systems.
Sweep Frequency Control:Adjusts the center frequency of the bass enhancement for precise bass tuning.
Width Bandwidth Control:Allows adjustment of the bass restoration range for deeper bass or tighter punch.
Selectable Output Voltage:Choose between 2.5V, 5V, 7.5V, or 10V output levels to match amplifier sensitivity.
High Signal-to-Noise Performance:Provides clean bass enhancement with a signal-to-noise ratio greater than 110dB.
Ultra-Low Distortion Processing:Maintains high audio fidelity with less than 0.02% total harmonic distortion.
Balanced / Unbalanced Input Selection:Ensures compatibility with factory radios and aftermarket head units.
Ground Isolation Control:Helps eliminate alternator noise and system interference.
Remote Bass Control Support:Allows real-time bass adjustment from the drivers seat.

Power Supply: 6.5V 18V
Maximum Input Level: 10V
Maximum Output Level: 10.5V
Input Sensitivity: 10.5V
Input Impedance: >50K Ohms
Output Impedance: 100 Ohms
EQ Boost / Cut: 15 dB
Signal-to-Noise Ratio: >110 dB
THD @ 2V Output: <0.02%
Channel Separation: >80 dB
CMRR: -63 dB Balanced / -29 dB Unbalanced
Frequency Response: 10 Hz 30 kHz
Subsonic Filter: 27 Hz 72 Hz
Current Draw: 230 mA
Interchannel Gain Tracking: 0.1 dB
Fuse Rating: 1A
Dimensions: 3.98 x 6.42 x 2.09
