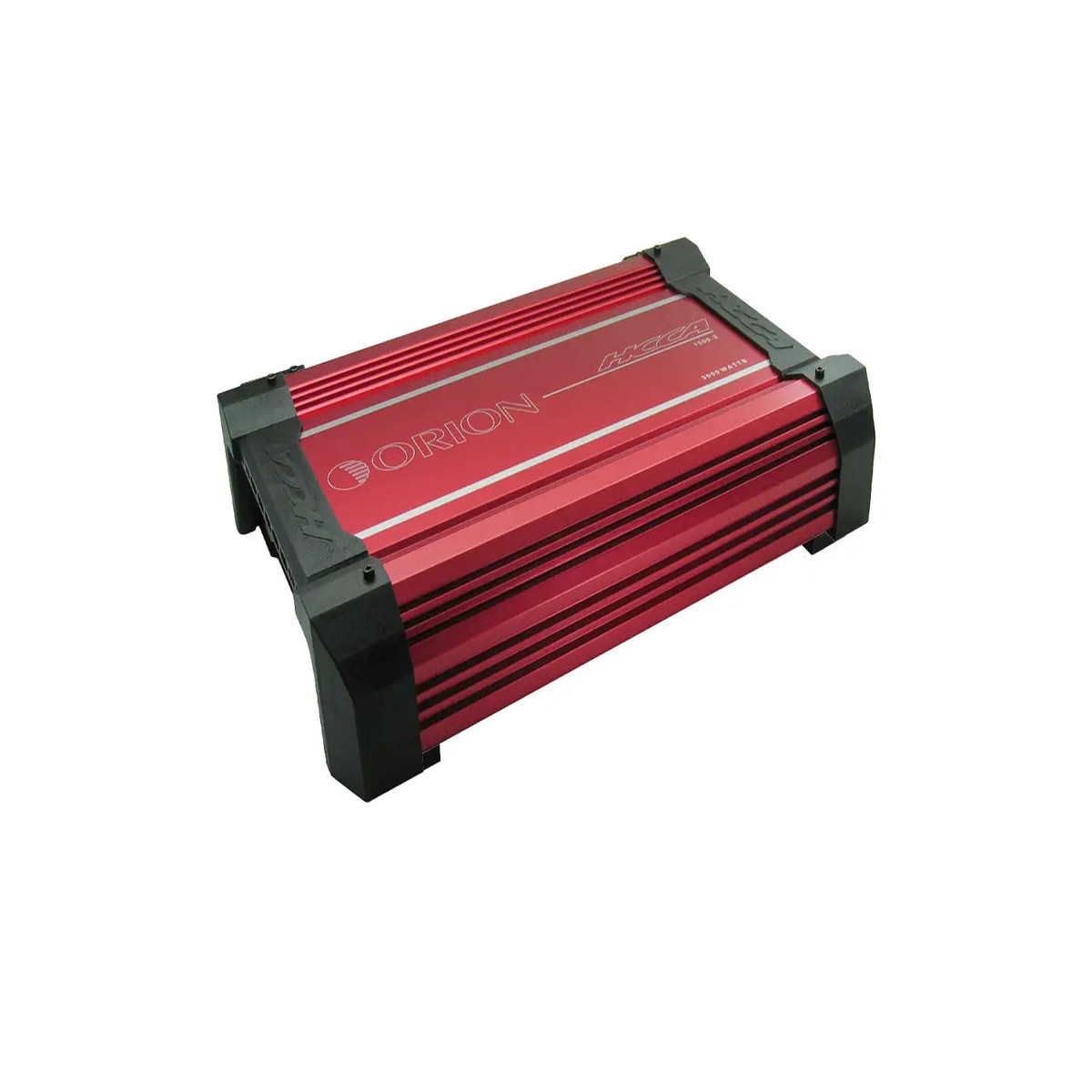

ORION HCCA2000.2 HCCA Series 2000W RMS 2-Channel Class-AB Amplifier
Elevate Your Audio Experience with Unrivaled Power: The ORION HCCA2000.2 HCCA Series 2000W RMS 2-Channel Class-AB Amplifier stands as a pinnacle of audio engineering, delivering a perfect fusion of power and precision. Designed for discerning audiophiles who demand the highest level of performance, this amplifier transforms your sound system into an immersive audio masterpiece.
Elevate Your Audio Journey:Discover the pinnacle of audio excellence with the ORION HCCA2000.2 HCCA Series 2000W RMS 2-Channel Class-AB Amplifier. Crafted with meticulous attention to detail and advanced features, this amplifier transcends ordinary listening experiences.
Unprecedented Sound Quality:Rediscover your music with unparalleled clarity and detail. From the gentlest notes to the most powerful crescendos, every aspect of your audio is meticulously reproduced.
Unrivaled Power and Precision:Experience a blend of power and precision that redefines your sound system. The ORION HCCA2000.2 HCCA Series Amplifier seamlessly merges potent power with sonic accuracy, creating an audio masterpiece that captivates the senses.
Elevate Your Drive: Elevate your driving experience with the ORION HCCA2000.2 HCCA Series 2000W RMS 2-Channel Class-AB Amplifier. Transform your audio journey, and indulge in a level of sonic excellence that sets new benchmarks.
Class-AB Amplification:Experience the harmonic balance of Class-AB amplification, blending the efficiency of Class B with the sound quality of Class A for an unmatched listening experience.
2000 Watts RMS:Immerse yourself in the realm of high-fidelity audio with 2000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control:The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement:Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures:Equipped with protection circuitry, the amplifier ensures reliability and safeguards against overheating and short circuits.
Compact and Stylish Design:The amplifier’s sleek design offers seamless integration into your audio setup without compromising on aesthetics.
Engineered Excellence:Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.
All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
Fault and Protection Monitoring
4-Way Protection:Thermal, DC offset, Short Protection, under & over voltage
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 600W
– RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 1000W
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 2000W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
– Frequency Response 10Hz to 35kHz +/- 1 dB
– Linear Bandwidth 20Hz to 65kHz +/- 3 dB
– High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
– Low Pass Crossover Continuously variable (40-300Hz)
– Phase shift control 0 to 180
– Bass Boost 0-18dB variable
– Distortion at Rated Power 0.005% THD+N
– Damping Factor > 100
– Input Sensitivity(RMS) 200mV to 6V
– Supply Voltage Range 9 to 16V
– Input Impedance 20K Ohms
– Amplifier Efficiency > 67% into 2 Ohms load at max. power
– SNR at rated output power and lowest impedance > 95dB
– Fuses: 200A recommended (not included)
– Dimensions (L x W x H): 20.47″ x 11.89″ x 3.15″ (520x302x80mm)
