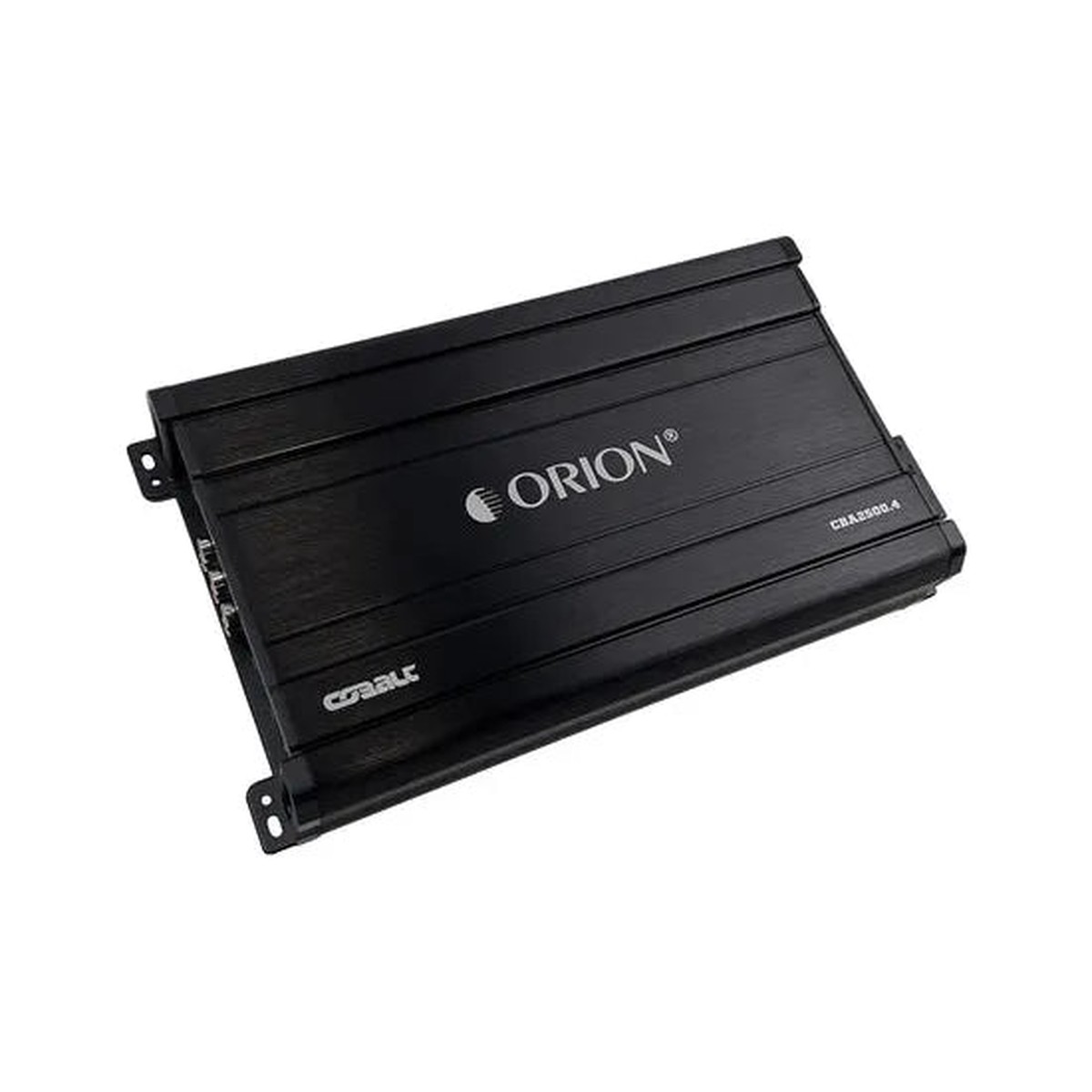

ORION CBA2500.4 COBALT Series 2500 Watts MAX 4-Channel Class A/B Amplifier

Unleash Sonic Brilliance
The ORION CBA2500.4 COBALT Series 2500 Watts MAX 4-Channel Class A/B Amplifier exemplifies the pinnacle of audio excellence. Through advanced features and meticulous engineering, this amplifier transcends conventional boundaries, delivering an extraordinary fusion of power, accuracy, and control to your car audio system.

Meticulous Sound Reproduction
Prepare for a reimagined musical experience. Every note, beat, and melody from the softest to the most dynamic is meticulously reproduced for a captivating and authentic listening journey.

Empower Your Audio Landscape
Experience your music in a whole new dimension. The ORION CBA2500.4 COBALT Series Amplifier seamlessly integrates raw power with unmatched audio quality, creating a symphony of sound that resonates deeply.

Elevate Your Drive
Enter the realm of sonic perfection with the ORION CBA2500.4 COBALT Series 2500 Watts MAX 4-Channel Class A/B Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It’s time to embrace sound in its purest form.

Class A/B Amplification –Experience the precision of Class A/B amplification, achieving a harmonious balance between efficiency and uncompromised sound quality.
2500 Watts Max Power –Immerse yourself in a symphony of sound with a maximum power output of 2500 Watts, delivering unparalleled auditory magnificence.
Precision Audio Control –The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement –Elevate your bass response with the adjustable bass boost feature, delivering impactful and resonant low frequencies.
Advanced Protection Measures –Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits.
Premium Craftsmanship –Crafted with top-quality components, the amplifier guarantees reliable performance and long-lasting quality.
Engineered for Excellence –The amplifier’s design meticulously balances audio precision, power efficiency, and steadfast operation.

All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
2-Ohm Stable
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-offTurn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

– MAX MUSIC POWER 2500W

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

– Frequency Response: 10Hz – 30kHz
– High Pass Crossover Continuously variable (50-1.2kHz)
– Low Pass Crossover Continuously variable (40-250Hz)
– Supply Voltage: 9 – 16V
– Input Impedance: 22kOhm – Signal to Noise Ratio: >90dB
– Bass Boost: 0/3/6dB Switch
– Variable Input Level Control: 0.2V – 6.0V
– Fuses: 80A recommended (2 x 40A ATC)
– Dimensions (L x W x H): 16.5″ x 7.09″ x 2.13″ (419x180x54mm)
