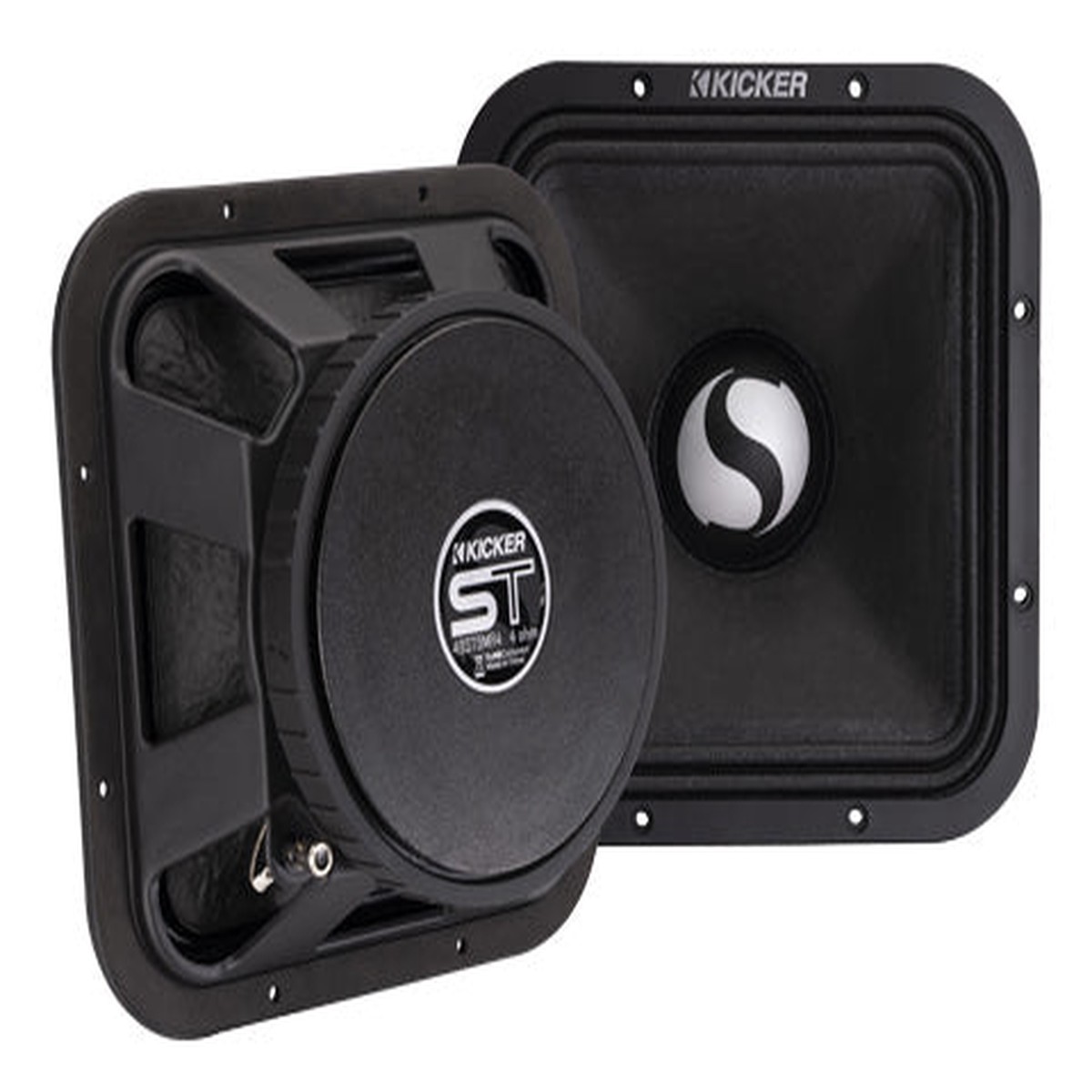

PA (Pro Audio)-Style, High Output
- PA (Pro Audio)-style woofers built for extreme loudness
- Square cone design provides nearly 20% more output
- Extreme power handling and efficiency
- Voiced for clear vocals cutting through very loud bass
- Perfect for competition-level SPL systems
- Exceptionally wide frequency response
- Square, pressed pulp cone with treated cloth surround
- Spring-loaded terminals accept 12 AWG wire
Specifications
| Thiele/Small Parameters |
| 49ST9MR4T/S Parameters |
| Product Dimension Sheet |
| 49ST9MRDimensions |
| Square Woofers [in, mm] |
| 9, 230 |
| Impedance [Ohms] |
| 4 |
| Recommended Amp Power [watts RMS] |
| 50-300 |
| Peak Power Handling [watts] |
| 600 |
| Frequency Response [Hz] |
| 80-5.5k |
| Sensitivity [1W, 1m] |
| 94 |
| Mounting Depth [in, mm] |
| 3-9/16, 91 |
| Mounting Cutout [in, mm] |
| 7-13/16 x 7-13/16, 199×199 |
| What’s in the box? |
2 – 9″ ST speakers
1 – Cutout template
1 – CIC |
