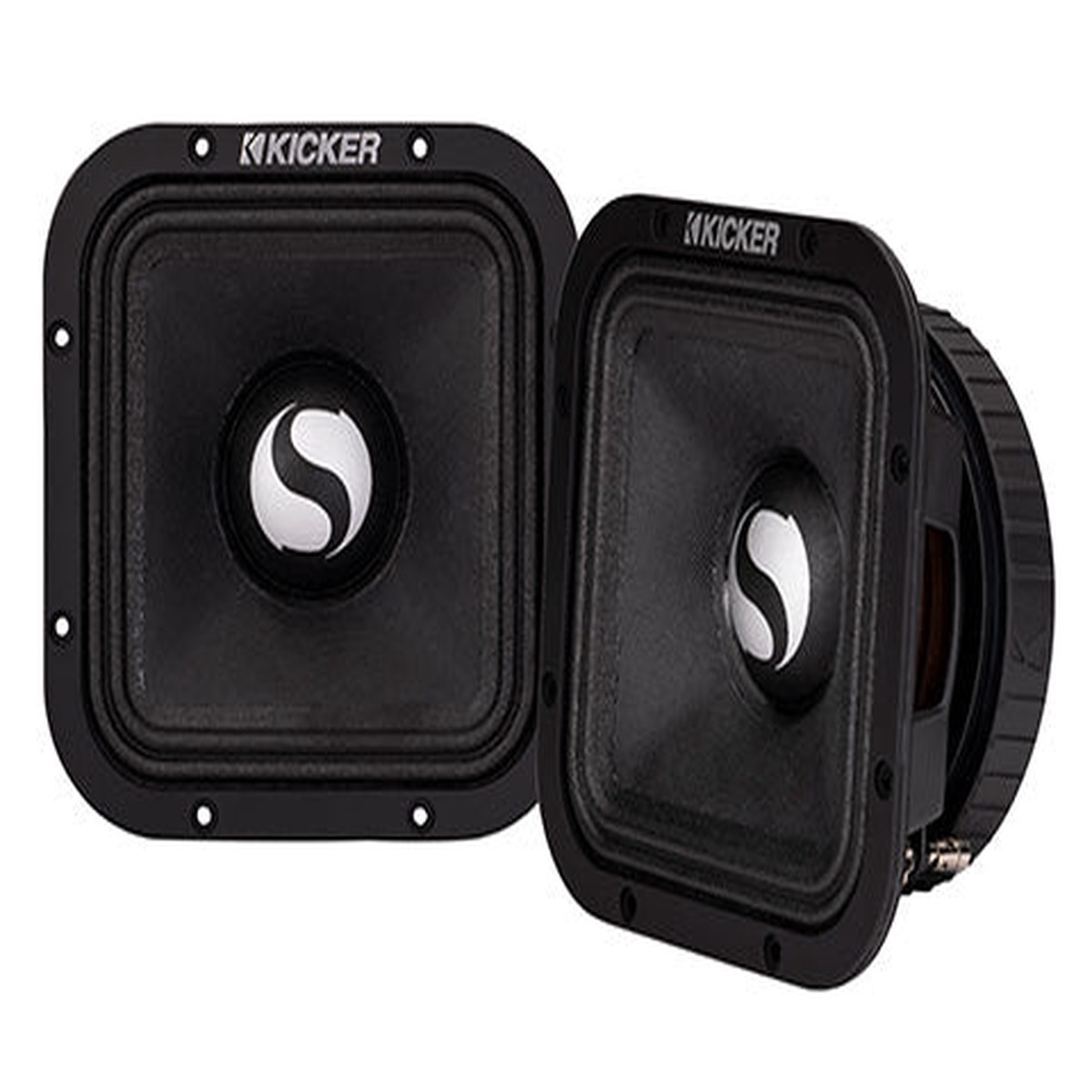

PA (Pro Audio)-Style, High Output
- PA (Pro Audio)-style woofers built for extreme loudness
- Square cone design provides nearly 20% more output
- Extreme power handling and efficiency
- Voiced for clear vocals cutting through very loud bass
- Perfect for competition-level SPL systems
- Exceptionally wide frequency response
- Square, pressed pulp cone with treated cloth surround
- Spring-loaded terminals accept 12 AWG wire
Specifications
| Thiele/Small Parameters |
| 49ST7MR4T/S Parameters |
| Product Dimension Sheet |
| 49ST7MRDimensions |
| Square Woofers [in, mm] |
| 7, 180 |
| Impedance [Ohms] |
| 4 |
| Recommended Amp Power [watts RMS] |
| 50-250 |
| Peak Power Handling [watts] |
| 500 |
| Frequency Response [Hz] |
| 80-7.5k |
| Sensitivity [1W, 1m] |
| 92 |
| Mounting Depth [in, mm] |
| 3-1/16, 78 |
| Mounting Cutout [in, mm] |
| 5-7/8 x 5-7/8, 150×150 |
| What’s in the box? |
2 – 7″ ST speakers
1 – Cutout template
1 – CIC |
