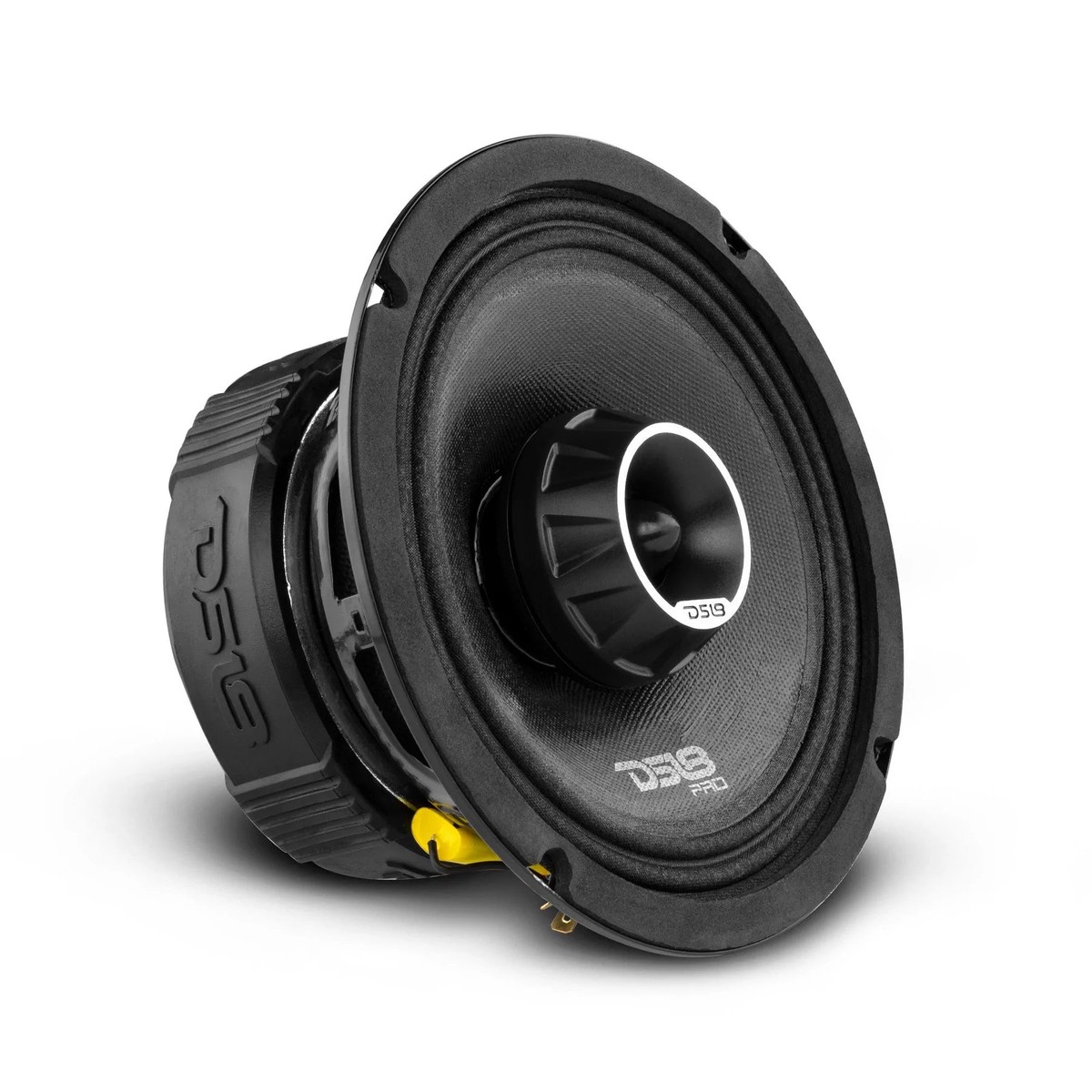

Name: DS18 PRO-ZT6 6.5" 225W RMS Midrange Speaker w/ Built-in Bullet Tweeter 4-Ohm (Single)
SKU: WOF88155449911
Availability: InStock

~~$85.45~~ $42.73

Availability: In Stock

Vehicle Parts

Nominal Diameter:	6.5″ (1651.1mm)
Nominal Impedance:	4 Ohms
RMS Power Handing:	225 Watts
MAX Power Handing:	450 Watts
Sensitivity (1w/1m):	96dB
Frequency Response:	65Hz – 22KHz
Recommended Hi Pass Crossover	120Hz
Midrange
Voice Coil Diameter:	1.5″ (38.1mm)
Voice Coil Former Material:	Kapton
Winding Material:	CCAW
Basket Material:	Steel
Magnet Weight:	27 oz.
Tweeter
Voice Coil Diameter:	1″
Voice Coil Material:	Kapton
Winding Material:	CCAW
Diaphragm Material:	Aluminum Alloy
Magnet Weight:	0.44 oz.
Magnet Material:	Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas	2.917 L
Excursion / Xmax	16mm
Free Air Resonance / Fs	150Hz
Mechanical Factor / Qms	3.906
Electrical Factor / Qes	0.747
Total Factor / Qts	0.627
DC Resistance / Re	3.2
Measurements
Overall Diameter:	178mm (7″)
Front Mount Baffle Cutout:	144mm (5.67″)
Mounting Depth:	77mm (3.03″)
Overall Depth:	97mm (3.81)
