• FULL RANGE CLASS D MOSFET AMPLIFIER:Our Full Range Class D Amplifier utilizes a high-efficiency full-bridge topology, delivering maximum power output with minimal heat dissipation, making it ideal for high-power applications
• DESIGNED FOR MAXIMUM POWER DELIVERY:Our Full Range Class D Amplifier is optimized for high-output performance, ensuring robust and distortion-free sound, especially in demanding environments
• MAXIMUM POWER OUTPUT:Engineered to handle heavy loads, this amplifier delivers up to 2500 watts at 2 Ohms, ensuring powerful and dynamic audio performance
• UNMATCHED PERFORMANCE:Our amplifiers are the premier choice for “Brazilian Style” amplification with a track record of proven performance, ensuring an exceptional car audio experience
• FREQUENCY RESPONSE -3dB:20Hz-20KHz
• CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4V
  MONO @ 4 Ohms: 4 x 300 WATTS (104A)
  MONO @ 2 Ohms: 4 x 500 WATTS (190A)
  MONO @ 4 Ohms: 2 x 1000 WATTS (192A)
• SIGNAL TO NOISE RATIO:80dB
• INPUT SENSITIVITY:0.2 – 7V
• OVERLOAD PROTECTION:This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience
• OVERHEAT PROTECTION:This amplifier features an advanced heatsink, designed to provide superior overheat protection
• OVER-VOLTAGE PROTECTION:16V
• UNDER-VOLTAGE PROTECTION:9V
• REMOTE SUBWOOFER VOLUME CONTROL:This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier’s performance
• HIGH PASS:50Hz-4KHz 12dB/Octave
• LOW PASS:50Hz-4KHz 12dB/Octave
• BASS BOOST:0-12 dB @ 35Hz-90Hz
• DIMENSIONS (L x W x H):13″ x 9″ x 2.9″ (332 x 229 x 73 mm)

Description:

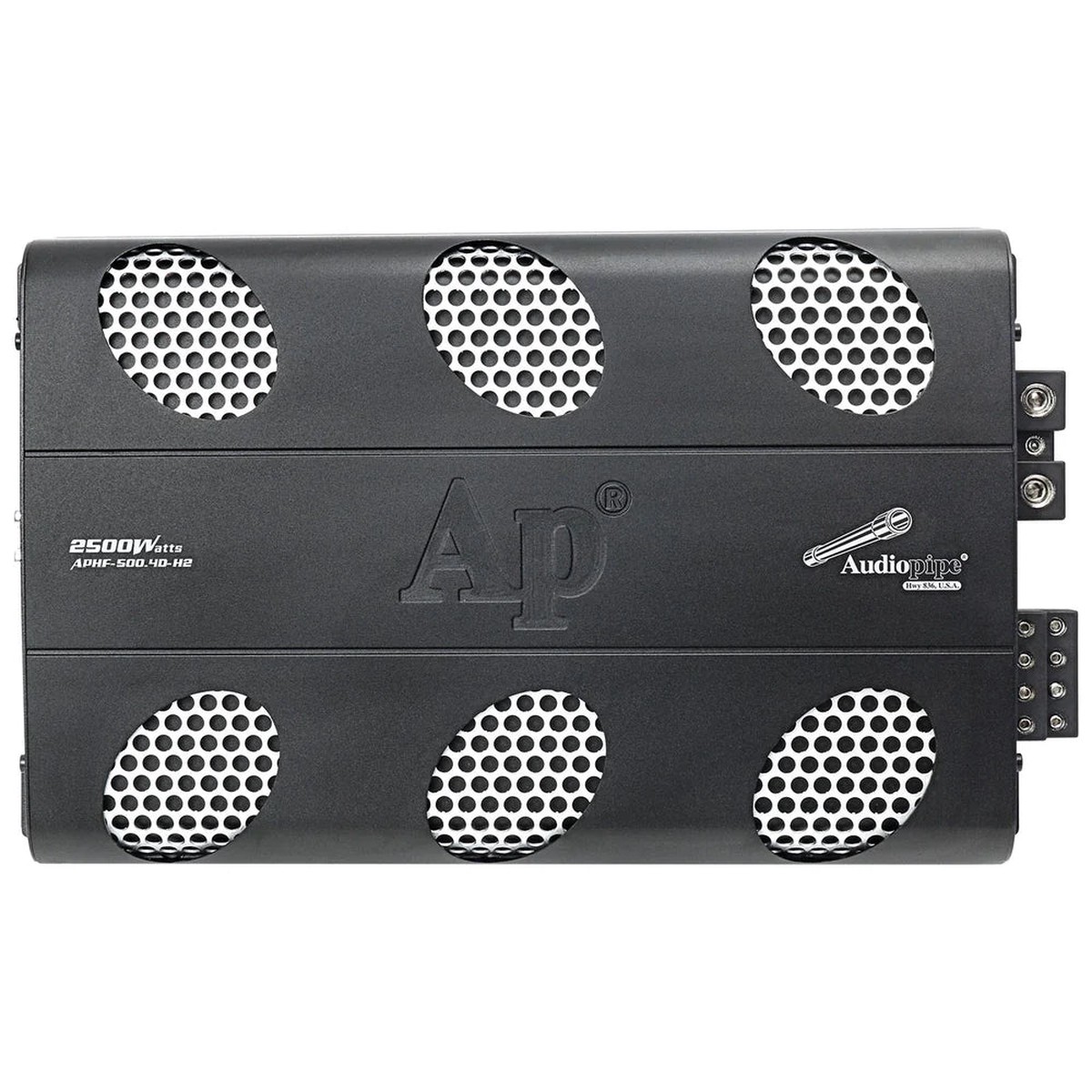

Our APHF-500.4-H2 Full Range Class D MOSFET Amplifier delivers an impressive 2500 watts of clear and powerful professional audio. By harnessing Full Bridge Class D technology, this amplifier can provide more power to the load compared to a single-ended amplifier. Full bridge amplifiers are inherently more efficient, utilizing the entire power supply voltage. Additionally, the APHF-500.4-H2 features a comprehensive four-point protection system, guarding against electrical shortages, overheating, low voltage, and overvoltage. Take control of your audio system from the drivers seat with the extended Bass knob, while the clip monitor indicator alerts and ensures distortion-free sound. Boost your audio experience with our Full Range Class D MOSFET Power Amplifier!
