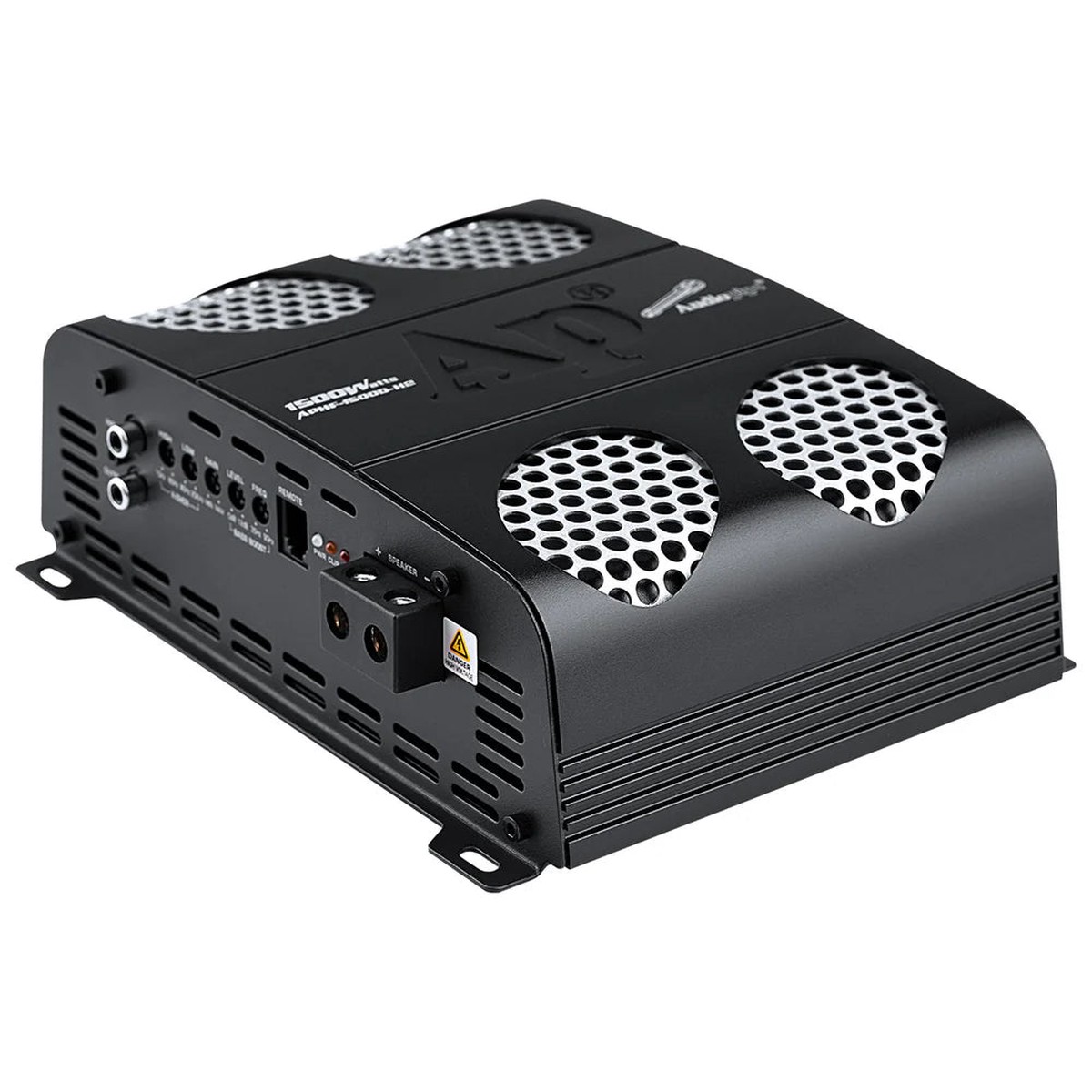

FULL RANGE CLASS D MOSFET AMPLIFIER:Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound
DESIGNED WITH ADVANCED MOSFET CIRCUITRY:Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power in-cased in a small footprint heatsink without sacrificing sound quality or performance
MAXIMUM POWER OUTPUT:As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 1500 Watts
UNMATCHED PERFORMANCE:Our amplifiers are the premier choice for “Brazilian Style” amplification with a track record of proven performance, ensuring an exceptional car audio experience
FREQUENCY RESPONSE -3dB:10Hz-20KHz
CONTINUOUS POWER OUTPUT @ 1% 1KHz: 14.4V MONO @ 4 Ohm: 1 x 970 WATTS (76A) MONO @ 2 Ohm: 1 x 1600 WATTS (134A)
SIGNAL TO NOISE RATIO:85dB
INPUT SENSITIVITY:0.25 – 4V
OVERLOAD PROTECTION:This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience.
OVERHEAT PROTECTION:This amplifier features an advanced heatsink, designed to provide superior overheat protection.
OVER-VOLTAGE PROTECTION:16V
UNDER-VOLTAGE PROTECTION:9.5V
REMOTE SUBWOOFER VOLUME CONTROL:This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier’s performance.
HIGH PASS:10Hz-80Hz 12dB/Octave
LOW PASS:80Hz-20KHz 12dB/Octave
BASS BOOST:0-12 dB @ 35Hz-90Hz
DIMENSIONS (L x W x H):5.9″ x 9″ x 2.9″( 150 x 229 x 73 mm )
