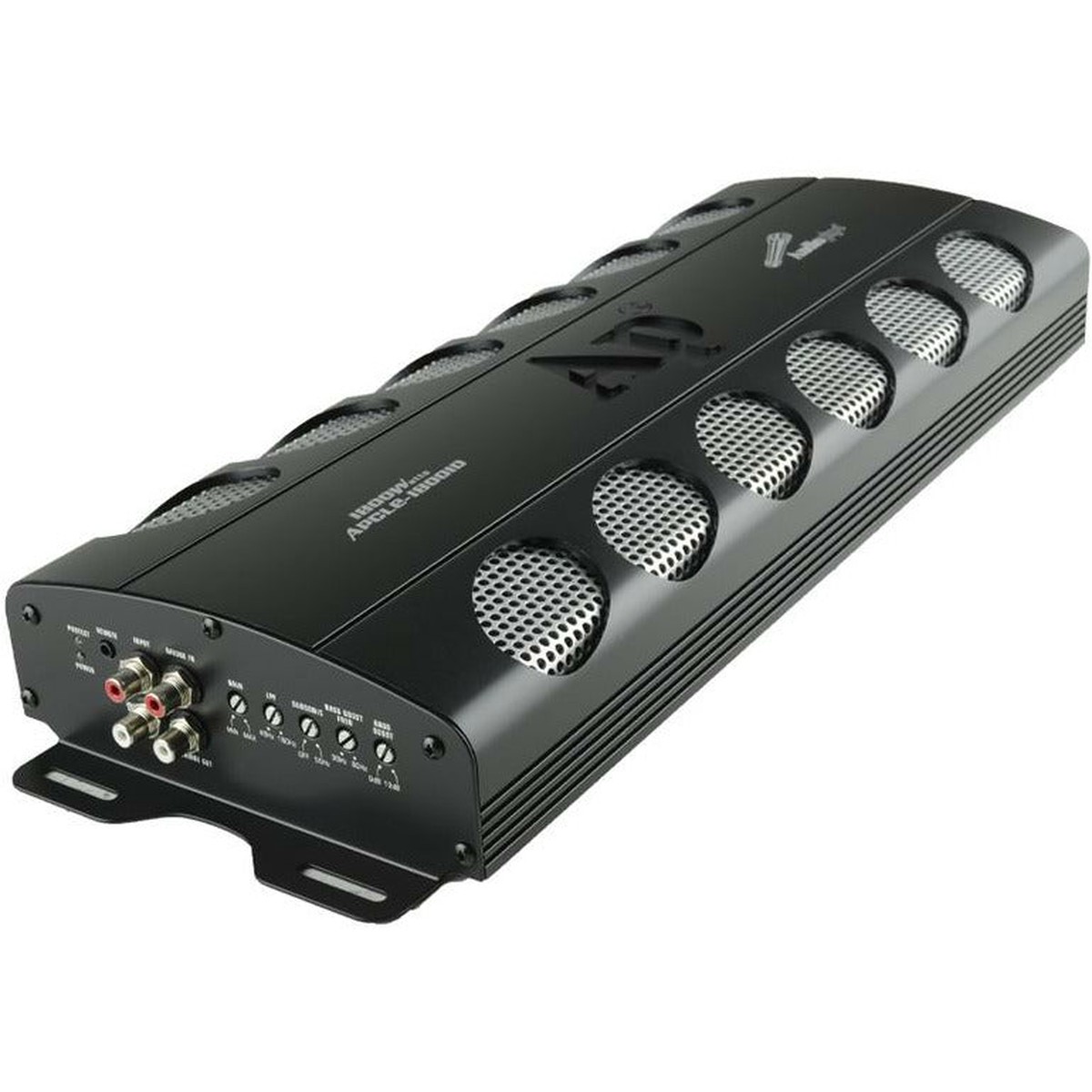

Class D Power Amplifier

Product Specifications

Maximum Power Output: 1800 Watts

Continuous Power Output:

• 1 Ch @ 4 Ohm – 750W
• 1 Ch @ 2 Ohm – 1150W
• 1 Ch @ 1 Ohm – 1800W

Frequency Response: 8Hz 180KHz

Input Sensitivity: 0.2V 5V

Crossover Range: 5Hz 50KHz

THD: <0.15%

Signal Noise Ratio: 70dB

1 Ohm load stable

Double side FR-4 PCB, high quality SMD components

Full MOFSET circuit design

Subsonic adjustable

Low pass filter adjustable

Bass boost frequency and level adjustable

Phase adjustable

Overload, short circuit, thermal, low voltage protection

Easy bridging operation

Remote bass level control (with remote bass knob)
