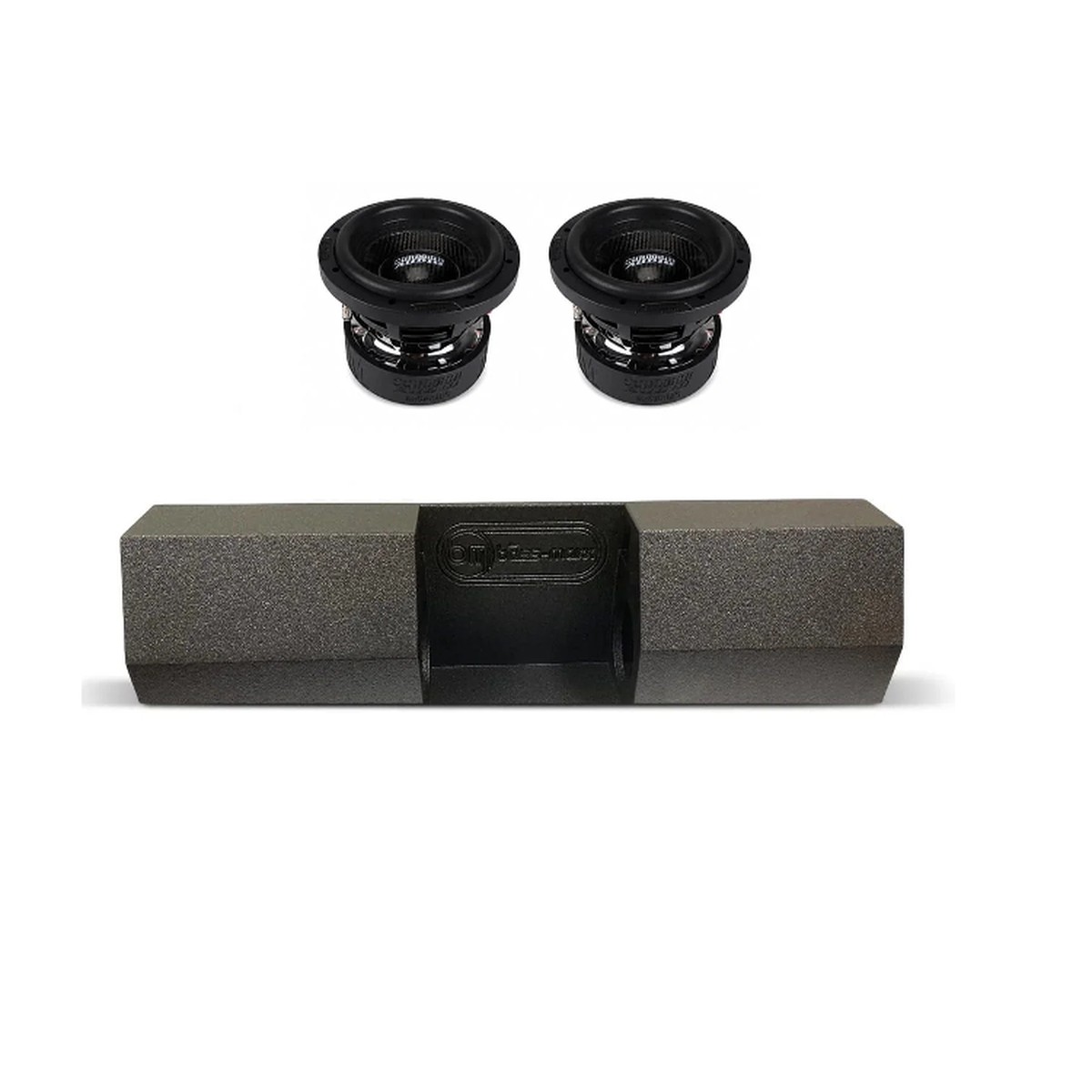

This package includes:
(1) Rhinolined Universal Singe Cab Truck Box
(2) Sundown Audio M-8 Subwoofers (4 Ohm or 2 Ohm)
Fits:
Fits multiple single cab (regular cab) trucks. Fits Chevrolet, GMC, Ford, Dodge, Toyota, Nissan – Multiple Year models. Also fits Dodge Ram Mega Cab
BOX DIMENSIONS:
- Length: 50″
- Height: 14″
- Top Width: 5″
- Bottom Width: 9.5″
PORT DIMENSIONS:
- Length: 12.5″
- Width: 2.25″
- Height: 4.5″
Air Space Per Sub : .7 CF
Box Tuning : 35 HZ
MOUNTING DEPTH: 18″
WOOFER CUT OUTS: (6.5″ = 6.4″) (8″=7.5″) (10″=9.35″) (12″=11.35″) (15″=14″)
Sundown M-Series 8″ 800 watts RMS Subwoofer
- 800W Watts RMS / 1600 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported enclosures
- Aluminum 2.25 voice coil former for superior heat dissipation
- High-temperature copper voice coil wire
- Double stitched surround
- Carbon Fiber Cone & Dust Cap
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- High-Veloctiy Vented Pole
- Rear gap-venting
- 18mm one-way linear x-max by 70% BL
If you want to run at a 1-Ohm load, purchase (2) Dual 4-Ohm subwoofers.
If you want to run at a 2-Ohm load, purchase (2) Dual 2-Ohm subwoofers.
The Sundown Audio M-8 is the big brother to the SA-8 v.3 model. Both the coil diameter and winding width are increased in comparison, resulting in higher power handling and more linear x-max. It features a Mid-Q which results in excellent vented and bandpass performance.
The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame. The smooth one-piece T-Yoke was FEA optimized for optimal flux transmission. The M-8 features a fully computer optimized spider & surround designed for low distortion and high levels of long-term endurance under demanding conditions. It features a thick magnet ID shorting ring to linearize and reduce inductance thus reducing distortion even further. Every detail was engineered for phenomenal performance and pleasing aesthetics.
