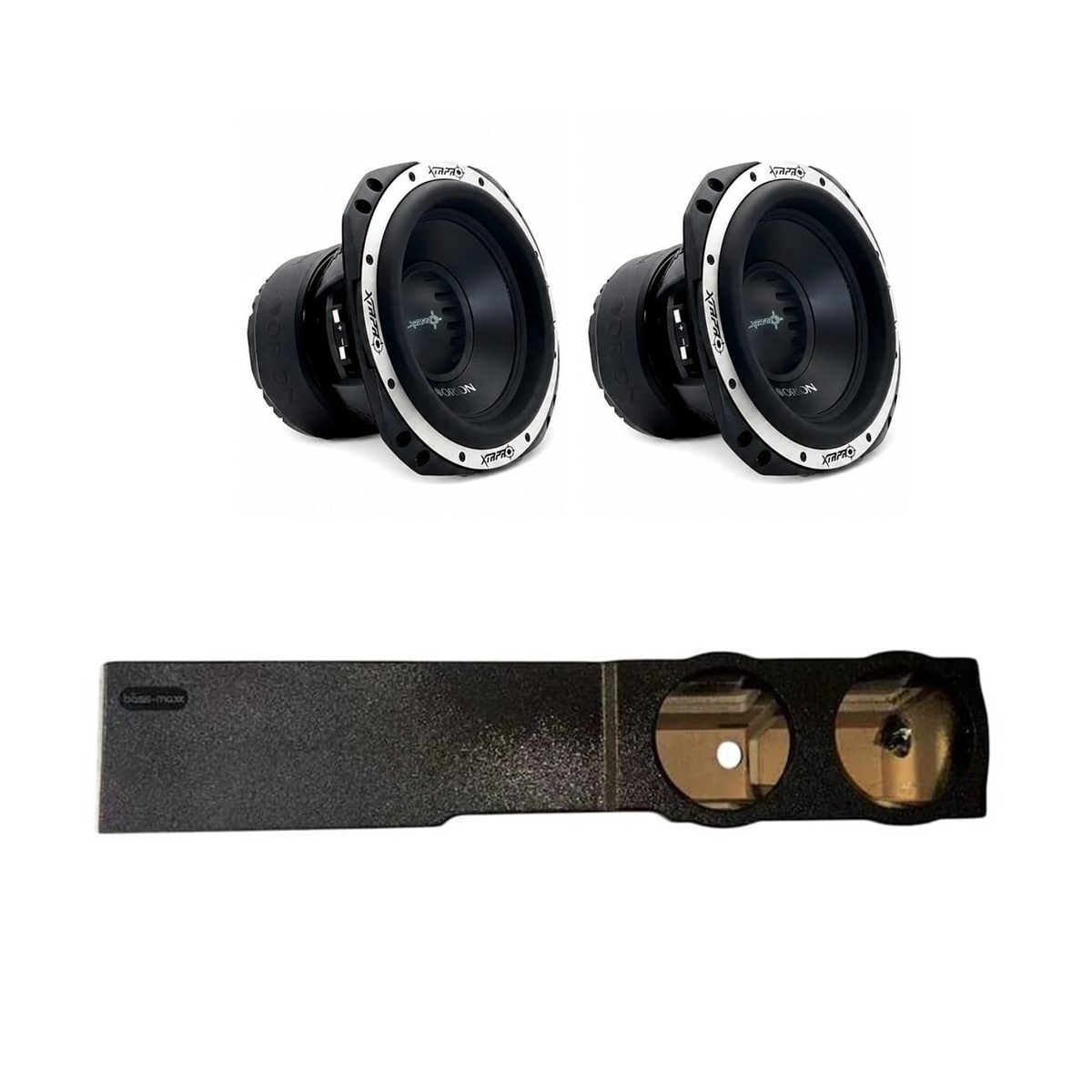

This package includes:
(1) Rhinolined Dual 8 Chevy 07-18 Crew Cab Ported Box
(2) Orion XTRPRO 8″ 1000W RMS Subwoofers (4 Ohm or 2 Ohm)
Fits:
Chevy / GMC 2007 – 2018 Crew Cab
Ford F-150 2009 – Up
Ford Super Duty 2017 – 2024
- Tuned to 35hz
- 2.0 Cubic Ft.
- Width: 49″
- Front Height: 9.5″
- Rear Height: 6.5″
- Height: 9.5″
- Bottom Depth: 14″
- Top Depth: 14″
- Depth: 14″
- Mounting Depth: 7.5″
- Cutout Diameter: 7.32″
- Weight: 43 LBS
- Air Space per Cubic Foot: 0.97^3 Per Chamber
- No Seat Lift Required
Specifications:
- Subwoofer Size: 8 (Inches)
- Voice Coil Configuration: Dual 4-ohm/Dual 2-ohm
- Power Handling (Peak): 4000 Watts
- Power Handling (RMS): 1000 Watts
- Sensitivity: 84.75 dB
- Frequency Response: 40 Hz – 150 Hz
- Voice Coil Diameter: 2.5 (Inches)
- Voice Coil Material: Aluminum Wound Voice Coil on a Kapton Former
- Spider: Dual Flat Conex Spiders with Loop Stitched Tinsel Leads
- Dustcap Material: Polypropylene
- Cone Material: UV Coated Reinforced Paper
- Surround Material: Santoprene
- Basket Material: Proprietary Cast Aluminum Frame
- Magnet Information: 125 Oz Ferrite
- Speaker Displacement: 0.06 (cu. ft.)
- Mounting Depth: 176.8mm / 6.96 (Inches)
- Cutout Diameter: 202.9mm / 8.07 (Inches)
If you want to run at a 1-Ohm load, purchase (2) Dual 4-Ohm subwoofers.
If you want to run at a 2-Ohm load, purchase (2) Dual 2-Ohm subwoofers.
